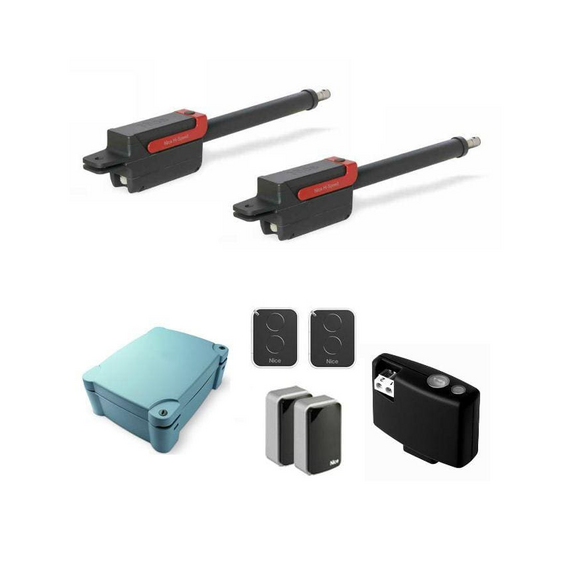

NICE TITAN6024HS-DKIT High-Speed Double Swing Gate Automation Kit
The NICE TITAN6024HS-DKIT is a premium high-speed automation system engineered for large and heavy double swing gates requiring fast, reliable, and continuous operation. It is equipped with two TTN6024HS 24V DC electromechanical linear actuators with integrated magnetic encoders for precise movement control, improved safety, and long-term calibration stability. Designed for industrial, commercial, and high-traffic residential entrances, the system delivers powerful performance with rapid opening cycles while maintaining smooth and controlled motion. The robust aluminium housing and high-quality internal mechanical components ensure durability in demanding outdoor environments.
KEY FEATURES:
- High-speed double swing gate automation kit
- 24V DC electromechanical linear actuators (TTN6024HS)
- Supports gates up to 6 m per leaf
- Handles gate weight up to 450 kg per leaf
- Magnetic encoder for precise positioning and safety
- High-speed operation with smooth motion control
- MC824H Moonclever intelligent control unit
- Automatic limit setting and self-learning function
- Obstacle detection with automatic reversal
- Soft start and soft stop technology
- Pedestrian opening mode
- Continuous/intensive duty cycle
- Robust aluminium housing for outdoor durability
