Nice TOONA5024-DKIT High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 5m / 500kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

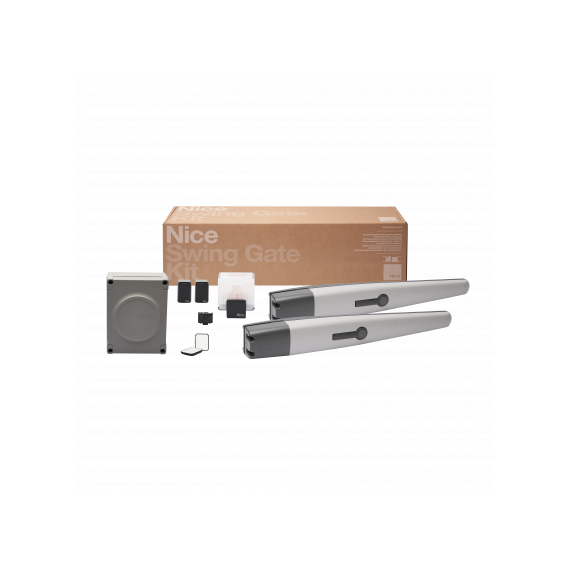

Nice TOONA5024-DKIT High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 5m / 500kg
The Nice TOONA5024-DKIT is a robust and reliable swing gate automation system designed for large and frequently used double gates. Built with high-strength electromechanical linear actuators, it delivers smooth, controlled movement while maintaining long-term durability in demanding environments. Powered by a 24V DC system with magnetic encoder technology, the TOONA5024 ensures precise positioning, safe operation, and consistent performance even under heavy usage. It is specifically engineered for intensive-duty applications, making it suitable for residential estates, commercial complexes, and industrial access points. The system supports gate leaves up to 5 metres in length and 500kg in weight, offering strong torque performance for wide and heavy gates. Its surface-mounted design allows straightforward installation without underground excavation, while still maintaining a clean and professional appearance.
KEY FEATURES:
- Heavy-duty surface-mounted swing gate automation kit
- Suitable for double gates up to 5m per leaf
- Supports gate weight up to 500kg per leaf
- 24V DC electromechanical motor system
- Magnetic encoder for precise motion control
- Intensive-duty cycle for frequent operation
- High torque performance for large gates
- Smooth start and stop to reduce wear
- Built-in obstacle detection with auto-reverse safety
- Compatible with MC824H control unit
- BlueBUS accessory integration system
- Mechanical locking for improved gate security
