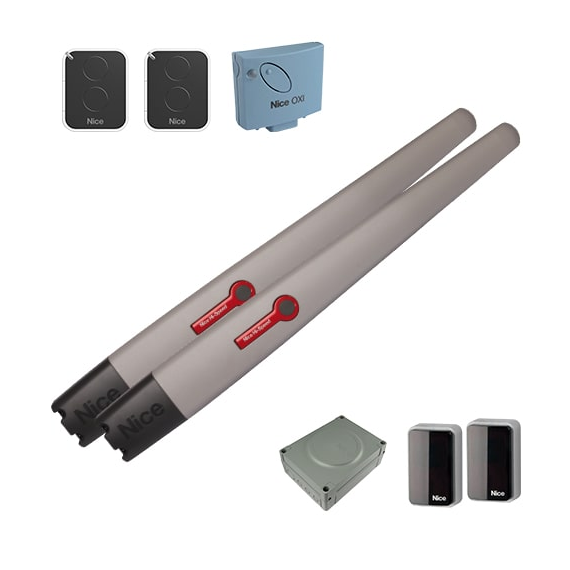

NICE TOONA6024HS-DKIT High-Speed Double Swing Gate Automation Kit
The NICE TOONA6024HS-DKIT is a premium high-speed automation solution designed for large and heavy double swing gates. Powered by two advanced 24V DC electromechanical operators, the system combines fast operation, precise control, and exceptional reliability for demanding residential and industrial environments. The integrated magnetic encoder technology ensures accurate movement control, stable performance, and advanced obstacle detection for enhanced safety. Built with robust polyester-coated aluminum housings and high-quality internal steel components, the TOONA6024HS-DKIT delivers long-lasting durability even in challenging outdoor conditions. Its patented internal mechanism and bronze screw drive provide smooth and quiet operation while maintaining high-speed performance. The system can open a gate to 90° in approximately 30 seconds, making it ideal for facilities requiring frequent access and dependable operation.
KEY FEATURES:
- High-speed double swing gate automation kit
- Dual 24V DC electromechanical operators
- Suitable for gate leaves up to 6 m long
- Supports gate weights up to 1450 kg
- Magnetic encoder for precise positioning
- Advanced obstacle detection system
- Fast 90° opening in approximately 30 seconds
- Intensive-duty operation
- Durable polyester-coated aluminum housing
- Quiet bronze screw drive mechanism
- MC824H Moonclever intelligent control unit
- Nice BlueBUS technology compatibility
- Automatic fault diagnostics
- Pedestrian access functionality
- Soft start and soft stop operation
