Nice TOONA7024-DKIT Heavy-Duty High-Performance Swing Gate Automation Kit (24V DC) for Extra-Large Gates
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

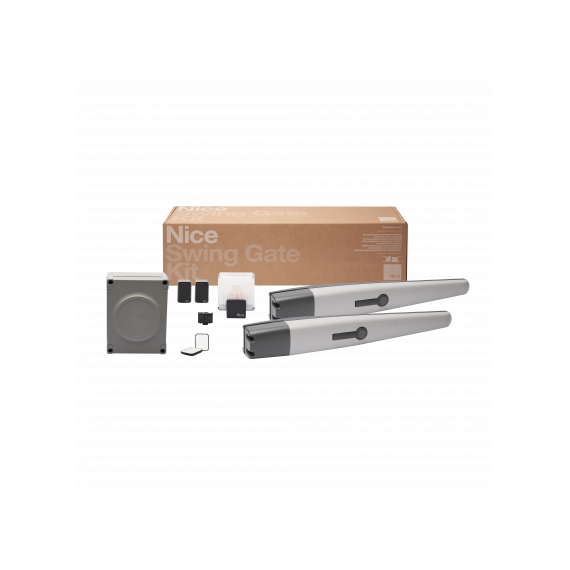

Nice TOONA7024-DKIT Heavy-Duty High-Performance Swing Gate Automation Kit (24V DC) for Extra-Large Gates
The Nice TOONA7024-DKIT is one of the most powerful systems in the Nice swing gate automation range, designed specifically for extra-large and heavy gates requiring high torque and continuous operation. Built with robust electromechanical 24V DC gear motors, it ensures reliable performance even under extreme load conditions. This system is engineered for intensive industrial-grade use, making it suitable for estates, factories, logistics entrances, and high-traffic commercial sites. The magnetic encoder technology provides precise motion control, improved safety, and accurate stopping positions for both opening and closing cycles. Its surface-mounted installation allows for easier setup compared to underground systems, while still delivering extremely strong mechanical performance. The reinforced aluminium housing and internal steel components ensure long service life and resistance to harsh environmental conditions.
KEY FEATURES:
- Ultra heavy-duty swing gate automation kit
- Suitable for double gates up to 7m per leaf (industrial scale)
- 24V DC electromechanical motor system for intensive use
- High torque output for very heavy gates
- Magnetic encoder for precise position control
- Built for continuous and intensive operation cycles
- Surface-mounted installation (no underground works required)
- Mechanical stop in opening and closing positions
- Built-in obstacle detection and automatic reversal
- Smooth start and stop for reduced mechanical stress
- Compatible with MC824H control unit
- BlueBUS system for easy accessory integration
