Nice WINGO3524HSSBDKCE High-Speed Swing Gate Automation Kit (24V DC) for Double Gates
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Nice WINGO3524HSSBDKCE High-Speed Swing Gate Automation Kit (24V DC) for Double Gates

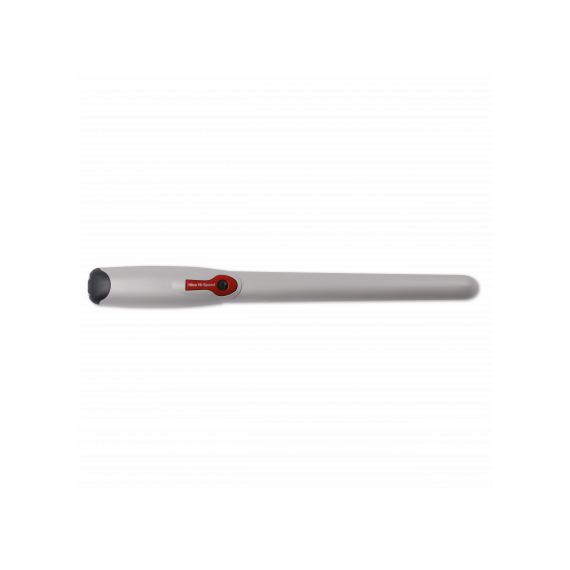

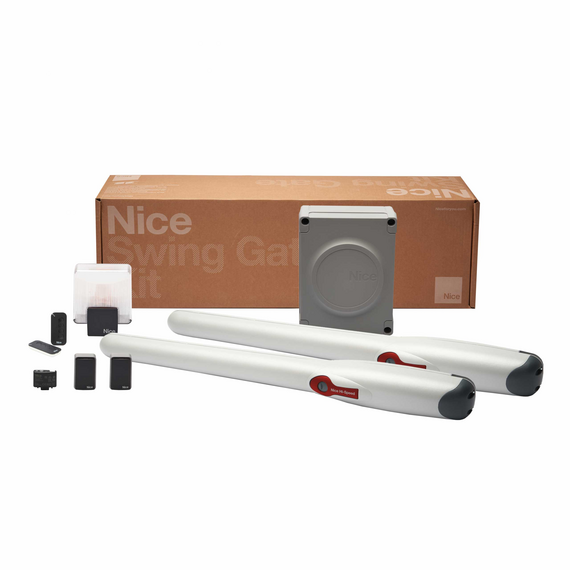

The Nice WINGO3524HSSBDKCE is part of the advanced Nice Hi-Speed swing gate range, engineered to deliver fast, reliable, and safe automation for double swing gates. Using powerful 24V DC electromechanical operators with magnetic encoder technology, the system ensures precise motion control, smooth operation, and accurate obstacle detection. This kit is designed for surface-mounted installation, making it ideal for residential and light commercial properties where speed and reliability are essential. The high-speed mechanism enables gate opening up to 90° in approximately 10 seconds, significantly improving access efficiency. Built for intensive use, the system supports gates up to 3m per leaf and 200kg per leaf. It includes a smart control unit with programmable functions such as partial opening (pedestrian mode), obstacle detection, and automatic travel learning. The system also supports battery backup, allowing operation during power failures when equipped with optional batteries.
KEY FEATURES:
- High-speed swing gate automation kit for double gates
- Supports gate leaves up to 3m and 200kg each
- Ultra-fast opening: ~10 seconds to 90°
- 24V DC electromechanical motor system
- Magnetic encoder for precise positioning
- Surface-mounted installation (no underground works)
- Intelligent obstacle detection and safety reversal
- Smooth start/stop for reduced mechanical stress
- Pedestrian (partial opening) mode
- BlueBUS technology for easy accessory wiring
- Self-learning travel limit programming
1 x MC824H,
2 x MYGO4,
1 x BIDI-WIFI,
1 x EPMB,
1x ELDC,
1 x TS.
