RGL MBK-BK600ZL ZL Bracket Black
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

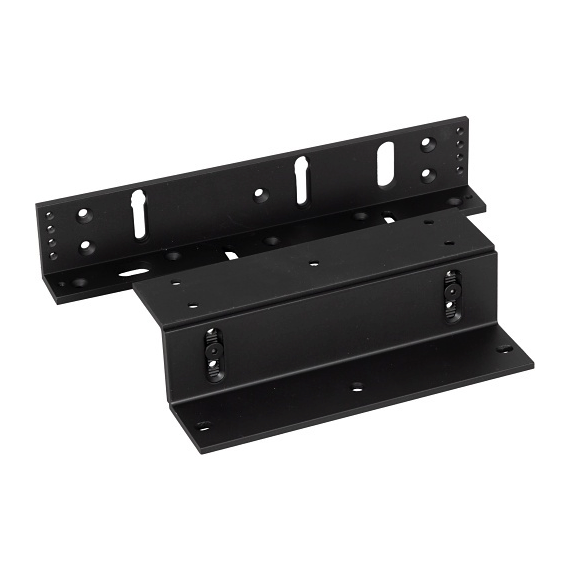

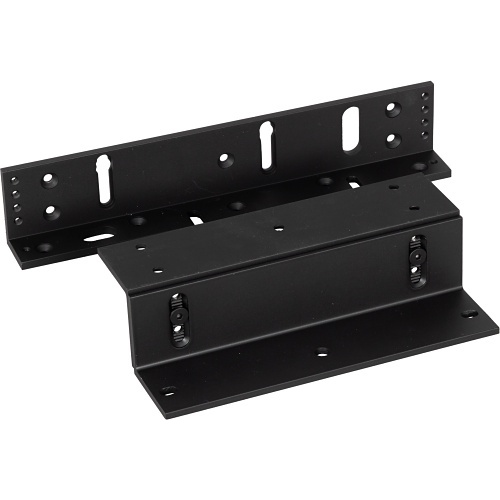

RGL MBK-BK600ZL Matt Black Adjustable Z & L Bracket – ML600 Maglocks
The RGL MBK-BK600ZL is a fully adjustable Z & L bracket set designed specifically for the RGL ML600 range of slimline magnetic locks. Finished in a sleek matt black coating, it provides a neat and professional mounting solution for inward-opening doors where standard maglock installation is not suitable.
The bracket allows up to 18mm of adjustment, providing greater flexibility when positioning the magnetic lock and armature plate for a secure and accurate fit. It is suitable for use with RGL slimline maglocks and is particularly suited to access control installations requiring a discreet, durable mounting solution.
The MBK-BK600ZL has also been fire tested for 30, 60, 90 and 120-minute timber door sets, making it suitable for a range of commercial and access control applications. For double maglock installations, two brackets are required.
Key Features:
- Matt black finish
- Fully adjustable Z & L bracket set
- Designed for RGL ML600 slimline maglocks
- Suitable for inward-opening doors
- Maximum adjustment of 18mm
- Suitable for single maglock applications
- Two brackets required for double maglocks
- Fire tested for 30, 60, 90 and 120-minute timber door sets
- Dimensions: approximately 180 × 50 × 50mm
- Ideal for access control and electromagnetic locking installations
- RGL RALOCK range
Product Code: MBK-BK600ZL Brand: RGL Electronics Product Type: Adjustable Z & L Maglock Bracket
