Ruijie Reyee RG-EW1200G PRO 1300Mbps Wi-Fi 5 Dual-Band Gigabit Mesh Router
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

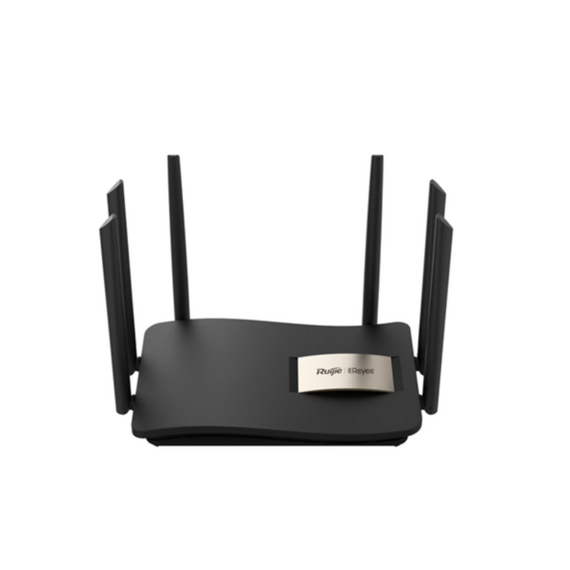

Ruijie Reyee RG-EW1200G PRO 1300Mbps Wi-Fi 5 Dual-Band Gigabit Mesh Router
The RG-EW1200G PRO is a dual-band Wi-Fi 5 Gigabit router engineered to provide stable wireless coverage and high-speed internet access for small-scale environments such as homes, villas, apartments and SOHO offices. It supports the 802.11ac Wave2 standard, delivering a combined wireless speed of up to 1267Mbps (1300M class). With 2×2 MIMO technology on both 2.4GHz and 5GHz bands, it ensures balanced performance for everyday tasks like HD streaming, browsing, video calls and light gaming. The router is equipped with six external omnidirectional antennas (6dBi gain), improving signal strength and coverage across multiple rooms. It also supports Reyee Mesh technology, allowing multiple Ruijie devices to form a seamless roaming network for larger coverage areas. For wired connectivity, the RG-EW1200G PRO includes 1 × Gigabit WAN port and 3 × Gigabit LAN ports, ensuring stable high-speed connections for PCs, smart TVs and CCTV systems. With support for multiple operating modes (Router, Access Point, Repeater, and WISP), it provides flexible deployment options. The device can be easily managed via the Reyee Router App / Ruijie Cloud, offering remote configuration, parental controls, device management and network monitoring.
KEY FEATURES
- Wi-Fi 5 (802.11ac Wave2) dual-band router
- Up to 1267Mbps (1300M class) wireless speed
- 2.4GHz: 400Mbps + 5GHz: 867Mbps
- 2×2 MU-MIMO on both bands
- 6 × external high-gain antennas (6dBi)
- Gigabit WAN + 3 × Gigabit LAN ports
- Reyee Mesh support for seamless roaming
- Supports up to 96 devices (recommended ~32 users)
- Beamforming for better signal direction
- Multiple operating modes (Router / AP / Repeater / WISP)
- Parental controls and guest network support
- Ruijie Cloud & Reyee App management
- Stable coverage for homes, shops and SOHO environments
