Ruijie Reyee RG-EW3000GX AX3000 Wi-Fi 6 Dual-Band Gigabit Mesh Router with Dual-WAN
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Ruijie Reyee RG-EW3000GX AX3000 Wi-Fi 6 Dual-Band Gigabit Mesh Router with Dual-WAN

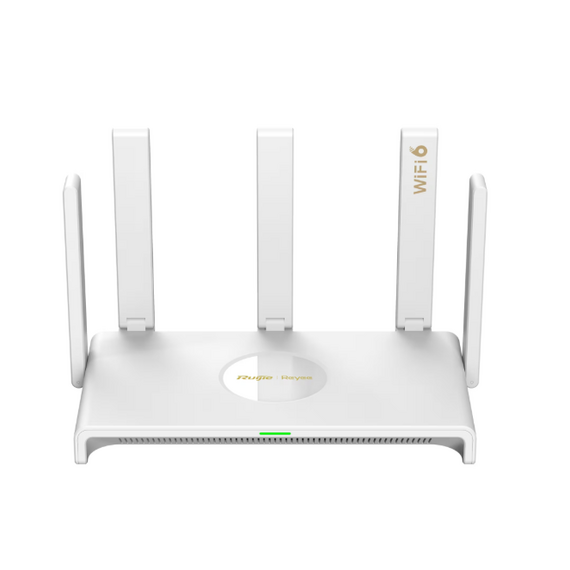

The Ruijie Reyee RG-EW3000GX is a next-generation Wi-Fi 6 (IEEE 802.11ax) router built to deliver high-speed wireless connectivity, improved network efficiency and extensive coverage for modern homes and small business environments. Combining advanced Wi-Fi 6 technologies with intelligent cloud management, it is ideal for UHD streaming, online gaming, video conferencing and smart home applications. The router provides combined wireless speeds of up to 2,976Mbps, with 574Mbps on the 2.4GHz band and 2,402Mbps on the 5GHz band. It supports 2×2 MU-MIMO, 160MHz channel bandwidth, OFDMA, 1024-QAM, Beamforming, and BSS Colouring, enabling faster data transmission, lower latency and improved performance when multiple devices are connected simultaneously. Designed for modern broadband connections, the RG-EW3000GX features one Gigabit WAN port, one configurable Gigabit WAN/LAN port, and three Gigabit LAN ports. It supports Dual-WAN aggregation and load balancing, allowing two broadband connections to be combined for greater throughput and improved Internet reliability. The router incorporates five high-gain external omnidirectional antennas to provide excellent wireless coverage and stable signal performance. Reyee Mesh technology enables multiple compatible Reyee devices to create a seamless whole-home Wi-Fi network with unified management and uninterrupted roaming.
KEY FEATURES
- AX3000 dual-band Wi-Fi 6 router
- Wi-Fi 6 (IEEE 802.11ax) wireless standard
- Combined wireless speeds up to 2,976Mbps
- Up to 574Mbps on the 2.4GHz band
- Up to 2,402Mbps on the 5GHz band
- 2×2 MU-MIMO technology
- 160MHz channel bandwidth
- OFDMA technology
- 1024-QAM modulation
- Beamforming technology
- BSS Colouring
- Dual-WAN aggregation
- Dual-WAN load balancing
- 1 × Gigabit WAN port
- 1 × Gigabit WAN/LAN port
- 3 × Gigabit LAN ports
- Five high-gain external omnidirectional antennas
