Ruijie RG-CS86-48MG4VS2QXS-UPD 48-Port Multi-Gigabit Layer 3 Cloud Managed PoE++ Switch with 25G/40G Uplinks
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

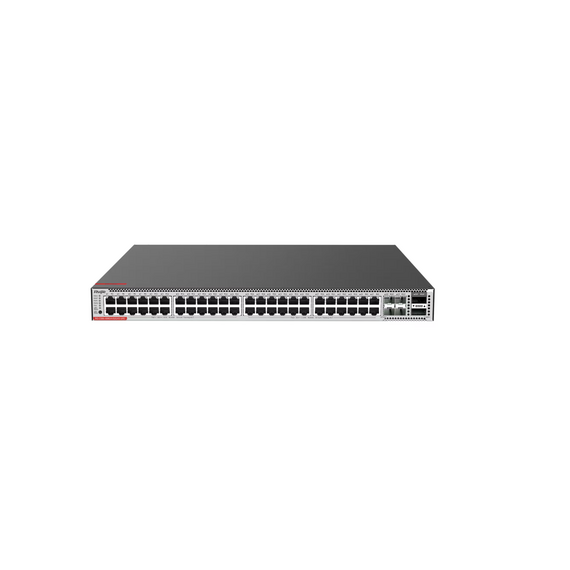

Ruijie RG-CS86-48MG4VS2QXS-UPD 48-Port Multi-Gigabit Layer 3 Cloud Managed PoE++ Switch with 25G/40G Uplinks
The Ruijie RG-CS86-48MG4VS2QXS-UPD is a flagship Multi-Gigabit access switch in the CS86 series, designed for large-scale enterprise and campus networks requiring extremely high bandwidth, flexible uplinks, and strong PoE capability. It delivers 48 Multi-Gigabit RJ45 ports (100M/1G/2.5G/5GBASE-T) supporting IEEE 802.3af/at/bt PoE++ up to 90W per port, making it ideal for powering next-generation Wi-Fi 6E and Wi-Fi 7 access points, PTZ cameras, and other high-power endpoints. For high-speed aggregation, the switch includes 4 × 25GE SFP28 ports and 2 × 40GE QSFP+ uplink ports, ensuring scalable backbone connectivity for modern campus architectures. It is built with an enterprise-class hardware architecture featuring modular power supplies, hot-swappable fan modules, and redundant design, ensuring continuous service availability in mission-critical environments. Advanced networking capabilities include Layer 2 and Layer 3 services, VLAN segmentation, QoS, ACL security policies, multicast optimisation, and comprehensive routing support. The switch also integrates Ruijie Cloud management, enabling zero-touch provisioning, remote monitoring, and simplified lifecycle management across large deployments.
KEY FEATURES
- 48 × Multi-Gigabit RJ45 ports (100M/1G/2.5G/5G)
- Full PoE++ support (IEEE 802.3bt) up to 90W per port
- 4 × 25GE SFP28 uplink ports
- 2 × 40GE QSFP+ uplink ports
- Layer 3 cloud managed enterprise switch
- High switching capacity for campus-scale deployments
- Modular power supply design (hot-swappable)
- Modular intelligent fan system (redundant cooling)
- Hardware redundancy for maximum uptime
- VLAN, QoS, ACL, STP/RSTP/MSTP support
- IGMP Snooping for multicast optimisation
- ERPS ring protection for fast recovery
- CPU protection and network stability mechanisms
- Ruijie Cloud remote management + zero-touch provisioning
- Designed for Wi-Fi 6/6E/7 and high-density enterprise networks
