7" Multi Functional CCTV Test Monitor (DS7TEST-3 - inc Cable Tracer)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

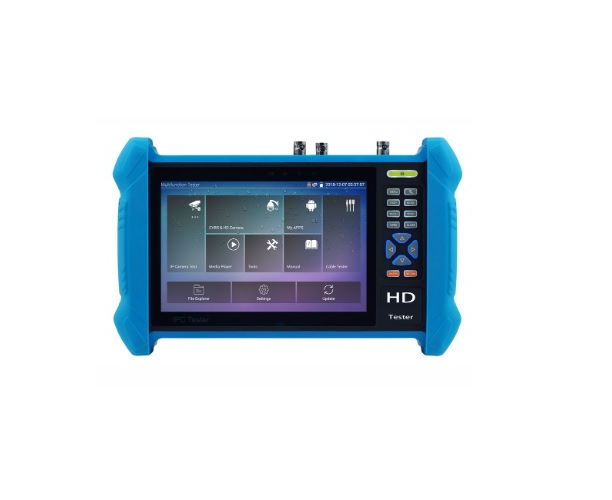

The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analogue, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analogue cameras in high resolution. The unit supports many ONVIF PTZ and analogue PTZ controls.
| Panel Type | 7″ capacitive touch screen |
| Case Type | Ruggedised plastic |
| Maximum Resolution | 1920×1200 |
| IP Camera Test | IP discovery, ONVIF,IPC test,POE power output, Hik, Dahua, Chrome |
| WI FI | Built in, speed 150M, wireless camera display |
| Work Humidity | 30 % – 90 % |
| Work Temperature | -10 to +50 °C |
| Power On/Off | Auto 5 – 30 mins |
| CVBS | 1 x BNC in, 1 x BNC out Analogue video level meter, peak video signal level SYNC level, colour bar chroma level PTZ control RS485 , baud rate 600 – 115200bps, Compatible with Pelco D/P, Samsung, Panasonic etc. One channel colour bar generator PAL/NTSC |
| Co axial HD test | 8MP TVI, 8MP CVI / AHD, 8MP HD-SDI, EX-SDI |
| HDMI input | 1 channel HDMI input supports 1080P |
| HDMI output | 1 channel HDMI output supports 1080P |
| Cable test function | UTP , RJ45,TDR(optional),cable trace(optional) |
| Audio | 1 channel audio test function. Headphone socket |
| Power On / Off | Auto 5 – 30 mins |
| Audio Interface | 1 channel audio test function. Headphone socket |
| Storage | 8Gb SD card function |
| Stand Type | Desk |
| Colour | Blue |
| Weights and Dimensions | 240 x 154 x 46mm |
| GROSS Weight | 620 g |
POWER IN
Power Supply: 12v DC 2 Amp
Battery: 57Wh polymer lithium battery, With 23W charger, fully charged 4~5 hours
Battery Life: After full charge(4-5 hours) normally 16 hours working time.
POWER OUT
DC24v 2A: Temporary camera supply, short circuit protection
DC12v 3A: Temporary camera supply
PoE: 48v PoE output max 25.5W
DC5v 2A: USB out put as power bank only
UK 12v DC charger,3x carrying straps,BNC to BNC cable,DC 12v3A output cable, RS485 cable tester lead, audio test lead, RJ45 cable tester, carry case.
OSD: Main function icons for: IP camera test,CVBS and HD camera test, Cable test, Media player,Tools,My Apps, User manual, Update. Select main icon to enter sub menu. Also icons for file explorer, settings and theme
IP camera test: IP discovery, ONVIF, IPC test, POE power output, Hik, Dahua, Chrome
CVBS and HD: CVBS,TV out,8MP CVI, 8MP AHD, 8MP TVI, 8MP SDI
Cable test: Cable tester, RJ45 TDR test
Media player: HDMI in, Audio record, audio player, video player, RTSP player
Tools: Network tool, PoE & power info, Quick Office,Data monitor, flashlight, calculator
My Apps: Rapid video,Rapid IP discovery,iVMS4500HD,gDMSS HD lite,VLC,EZ View,Droi Notes, XMEye
