AJAX Ajax Hub BP Jeweller - Wireless battery-powered control panel.
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Off-grid security made simple

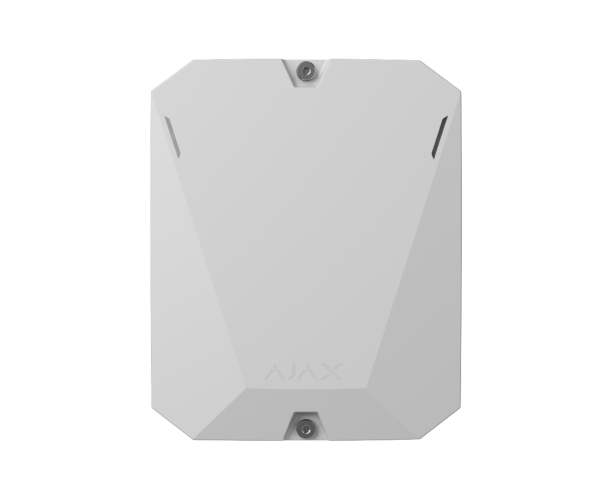

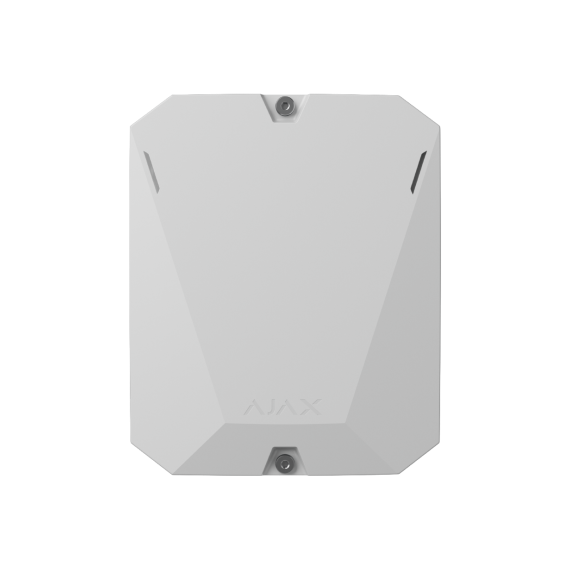

Hub BP Jeweller is an innovative security control panel designed to secure properties without a constant power supply. It's ideal for protecting vacant houses, construction sites, and temporarily unused offices. Unlike other control panels, Hub BP is powered by internal and external batteries, ensuring long-term autonomous operation. Hub supports event photo verification and features dual SIM connectivity, guaranteeing reliable communication. Thanks to its battery power saver feature, the device optimizes battery usage, providing continuous protection for extended periods.

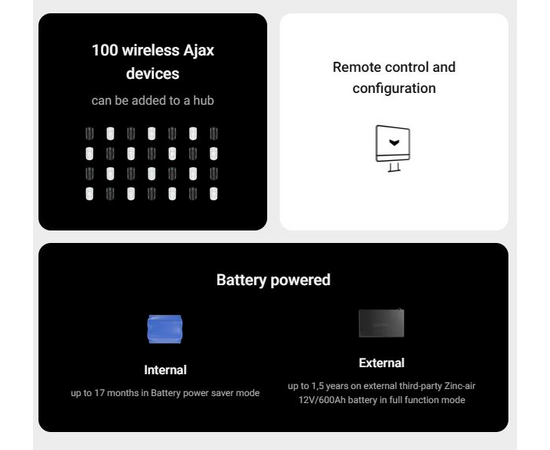

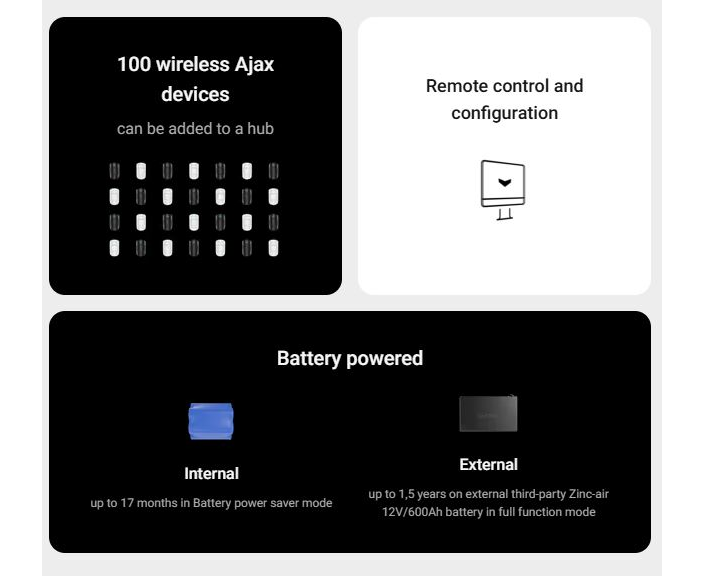

Impressive autonomy for challenging locations
Hub BP Jeweller operates on internal and external batteries or alternative supplies like solar panels, ensuring exceptional autonomy. This feature makes it ideal for sites where it is impossible to install devices powered by the mains. With its battery power saver feature, the hub can function for months, reducing the need for frequent maintenance visits. This innovation protects remote or off-grid locations, expanding installation possibilities for security professionals.
Advanced battery power saver
Hub BP Jeweller's advanced feature, applicable to both internal and external batteries, significantly extends operational life. Battery power saver minimizes maintenance visits and reduces costs, particularly for remote or hard-to-access facilities, enhancing overall system efficiency and reliability.
Batteries supplied by Ajax
Name | Type | Quantity in a pack | Voltage | Capacity | Months of operation in Battery power saver mode3 | Availability |
|---|---|---|---|---|---|---|
Internal battery NB (7.2V/95Ah) | Non-rechargeable battery LTC ER34615-LD | 10 | 7.2V | 95Ah | 17 | Q4 2024 |
Internal battery RB (6.4V/27Ah) | Rechargeable battery LiFePO4 18650 | 36 | 6.4V | 27Ah | 4 | Q1 2025 |
Internal battery NB (7.2V/190Ah) | Non-rechargeable battery LTC ER34615-LD | 20 | 7.2V | 190Ah | 42 | Q1 2025 |
Internal battery RB (6.4V/78Ah) | Rechargeable battery LiFePO4 18650 | 104 | 6.4V | 78Ah | 15 | Q1 2025 |
Batteries from third-party suppliers
Name | Type | Voltage | Capacity | Months of operation in Battery power saver mode3 |
|---|---|---|---|---|
Internal third-party battery | Rechargeable battery Lead-acid | 12V | 7Ah | 2 |
External third-party battery | Non-rechargeable Zync-air battery | 12V | 600Ah | 72 |
