Ajax DoorProtect Plus U Jeweller - UK Specific Version
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Guardian for doors, windows, and valuables

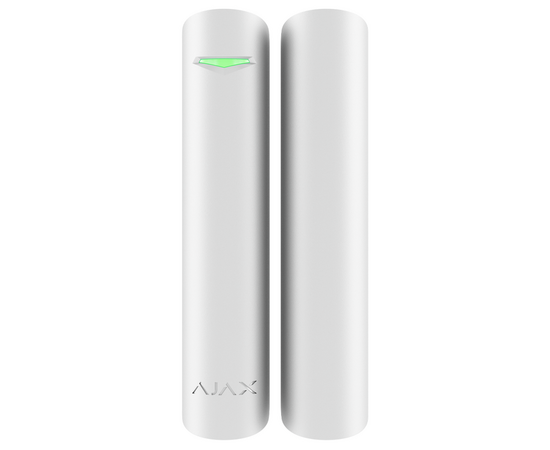

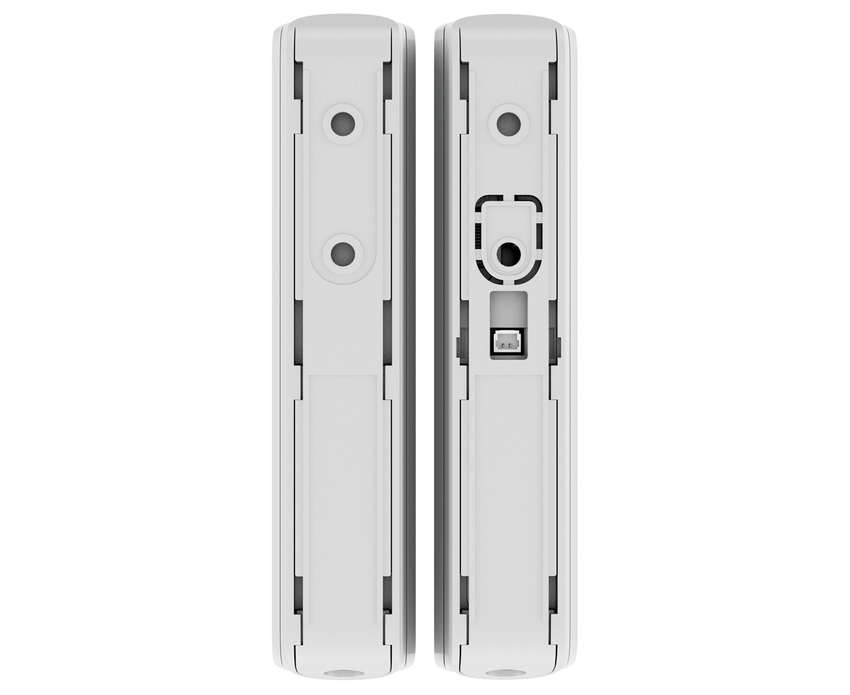

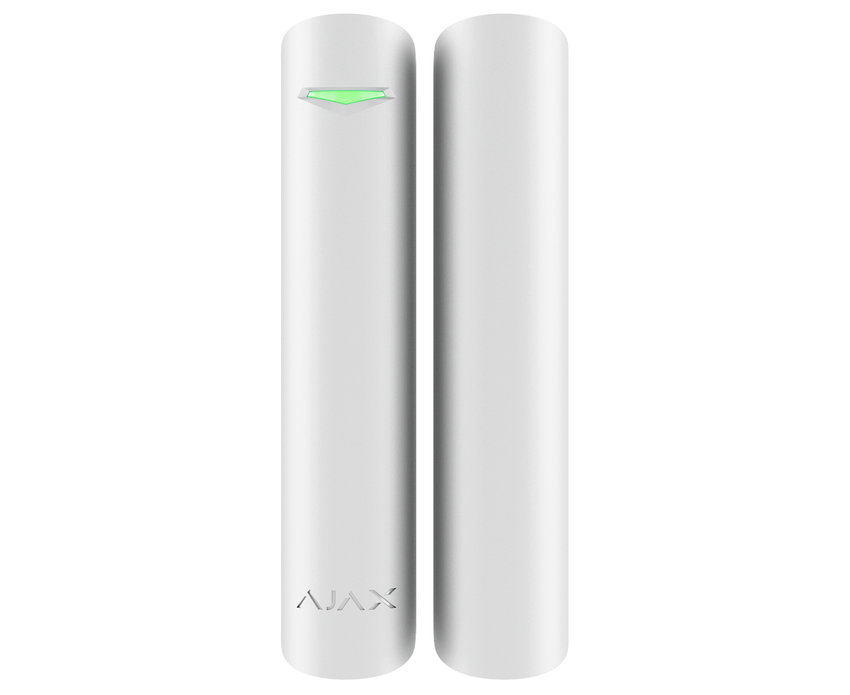

DoorProtect Plus U Jeweller is a version of Ajax’s well-known opening detector, refined to meet strict UK standards. It secures the entry points most often targeted by intruders — including doors, windows, skylights, cabinets, and vaults. The device uses reed switch technology to detect opening, while a built-in accelerometer catches attempts to knock out, break, or tilt the door or window. With two magnet options and two reed switches, the detector can be installed on doors and windows of various designs.
The new UK-specific devices meet key market certifications, ensuring compliance with security standards:
- Grade 2 (EN 50131) is an international certification confirming that devices are suitable for residential and commercial use, providing protection against experienced intruders with special equipment.
- PD 6662:2017 assures customers that all alarm systems comply with the UK's specific security standards and regulatory requirements, including strict criteria for minimising false alarms.
- UKCA (UK Conformity Assessed) certifies that products meet the UK's post-Brexit regulatory requirements.
- PSTI (Product Security and Telecommunications Infrastructure) ensures that devices meet cybersecurity and data protection standards.
These certifications align with the UK market regulations, enhancing device reliability and security for professional installations.
