Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

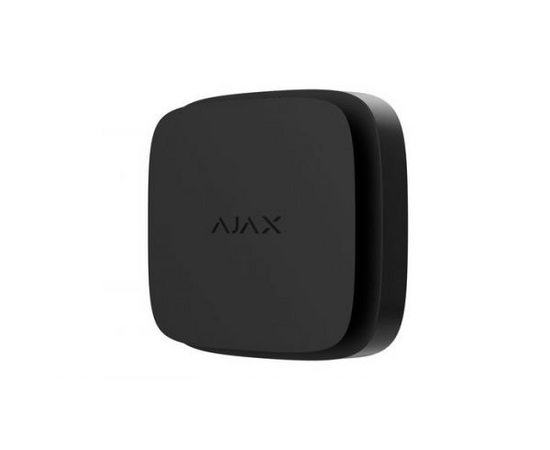

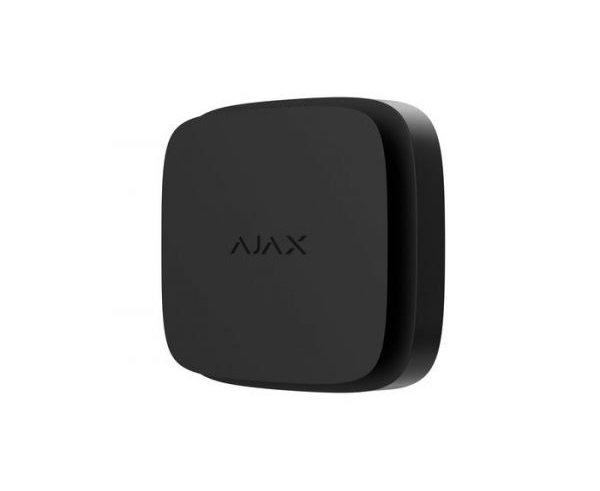

FireProtect 2 (CO)
Wireless Fire Detector with CO Sensor: The FireProtect 2 revolutionises residential fire safety with its advanced carbon monoxide detection, alerting occupants before CO levels become hazardous. Its design and functionality are engineered for easy installation and seamless integration within the Ajax ecosystem.
Battery Options for Longevity:
FireProtect 2 SB (CO): Features sealed batteries designed to last for 10 years, providing a long-term, maintenance-free solution.
FireProtect 2 RB (CO): Equipped with replaceable batteries, this version ensures up to 7 years of reliable operation.
Critical Alerts for Early Detection:
CO Detection: A built-in chemical sensor precisely detects CO levels, capable of alerting occupants about dangerous concentrations as low as 50 ppm, ensuring early warning and prevention of CO poisoning.
EN 50291-1:2018 Compliance: Meets modern fire safety standards, ensuring the detector's reliability and performance.
Enhanced Alert System:
85 dB Built-in Siren: Coupled with critical alerts through the Ajax app, the detector's siren ensures that occupants are promptly warned about dangerous CO levels, facilitating immediate action.
Remote Management and Control:
Up to 1,700m Communication Range: Guarantees a stable connection with the Ajax hub, extending the detector's functionality and enabling remote monitoring and configuration through the Ajax app.
Comprehensive Monitoring Capabilities:
Data-Rich Notifications: Offers instant notification about alarms and system status, providing detailed information on the nature and location of the threat.
Detailed Event Log: Records the last 500 events within the system, aiding in the accurate reconstruction of incidents for emergency services or insurance claims.
Integration with Ajax Ecosystem for Advanced Safety:
Automation for Safety: Integrates with Ajax automation devices and MotionCam (PhOD) detectors, enabling scenarios like ventilation activation upon CO detection and unlocking emergency exits, enhancing safety and response efficiency.
Innovative Wireless Communication:
Jeweller Protocol: Ensures secure, encrypted two-way communication, extending up to 1,700 metres in open space, and features automatic system health diagnostics and jamming detection.
Easy and Maintenance-Free Installation:
SmartBracket Design: Simplifies the install
