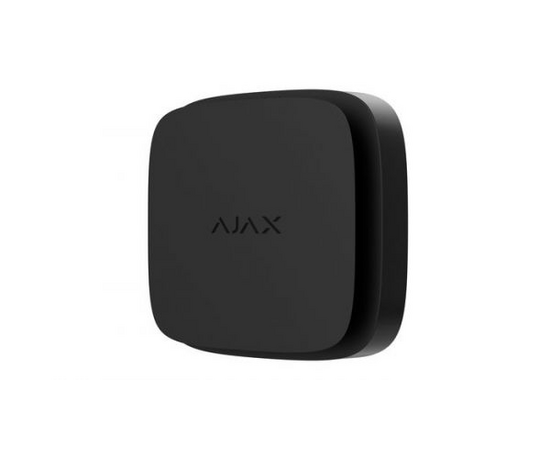

Ajax FireProtect 2 SB (Heat/CO) (8EU)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

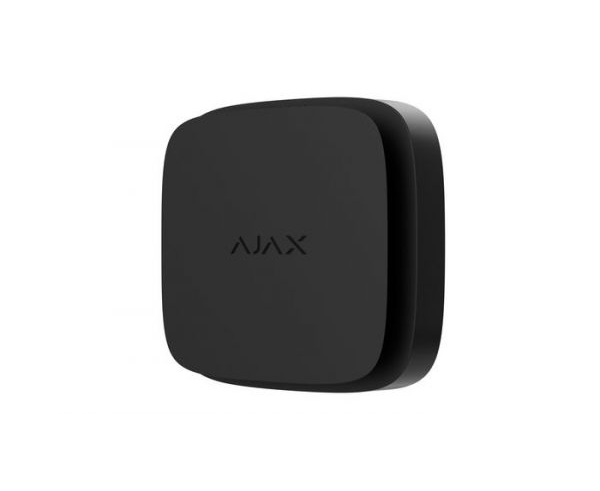

FireProtect 2 (Heat/CO)
Wireless Fire Detector with Heat and CO Sensors: FireProtect 2 provides advanced fire detection by combining heat and carbon monoxide (CO) sensors, ensuring comprehensive safety against both visible and invisible fire threats. Designed for residential use, it offers quick reaction to synthetic materials burning and preemptive CO level warnings.
Two Battery Versions for Extended Operation:
FireProtect 2 SB (Heat/CO): Comes with sealed batteries, offering a decade of operation without the need for battery replacement.
FireProtect 2 RB (Heat/CO): Features replaceable batteries, ensuring up to 7 years of dependable service.
Advanced Detection Capabilities:
Heat Detection: Employs A1R-class thermistors for early detection of rapid temperature rises, crucial for smokeless fire scenarios.
CO Detection: The built-in chemical sensor accurately detects CO levels, alarming before they become harmful, with a lifespan of up to 10 years.
Efficient and Reliable Alerts:
85 dB Built-in Siren: Ensures loud and distinct alerts for heat and dangerous CO levels, alongside other notifications like malfunctions and low battery.
Wireless Interconnection: Enables synchronised alerts across all FireProtect 2 detectors within a facility, enhancing the alarm system's effectiveness.
Seamless Integration with Ajax Ecosystem:
When connected to an Ajax hub, FireProtect 2 enhances its capabilities, providing remote management, instant notifications, and the ability to implement fire security automation scenarios through the Ajax app, offering peace of mind and advanced protection.
Unique Wireless Communication:
Utilises the Jeweller proprietary protocol for secure, encrypted two-way communication, ensuring reliable alerts and system integrity, with a significant communication range of up to 1,700 metres in open space.
Easy Installation and Maintenance-Free:
Designed for straightforward installation with a SmartBracket panel and QR code pairing, FireProtect 2 requires minimal maintenance. An automatic self-test system ensures sensors are always operational, and manual testing is also available via the Ajax apps.
FireProtect 2 (Heat/CO) stands out as an essential component of residential fire safety systems, offering dual detection of heat and CO, long-term operation with different battery options, and integration into the Ajax ecosystem for enhanced safety and control.
