Ajax MotionCam Outdoor HighMount (PhOD)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

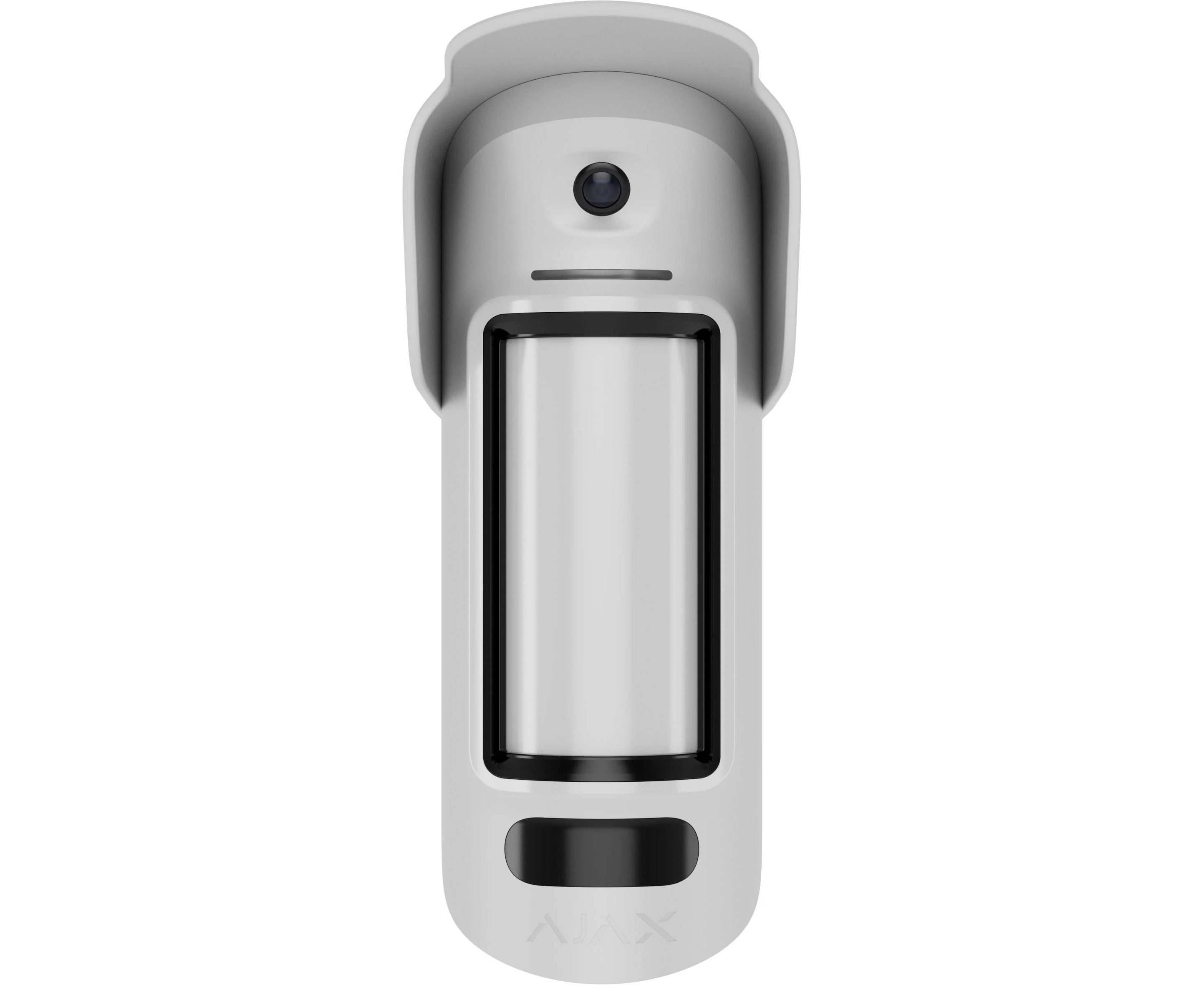

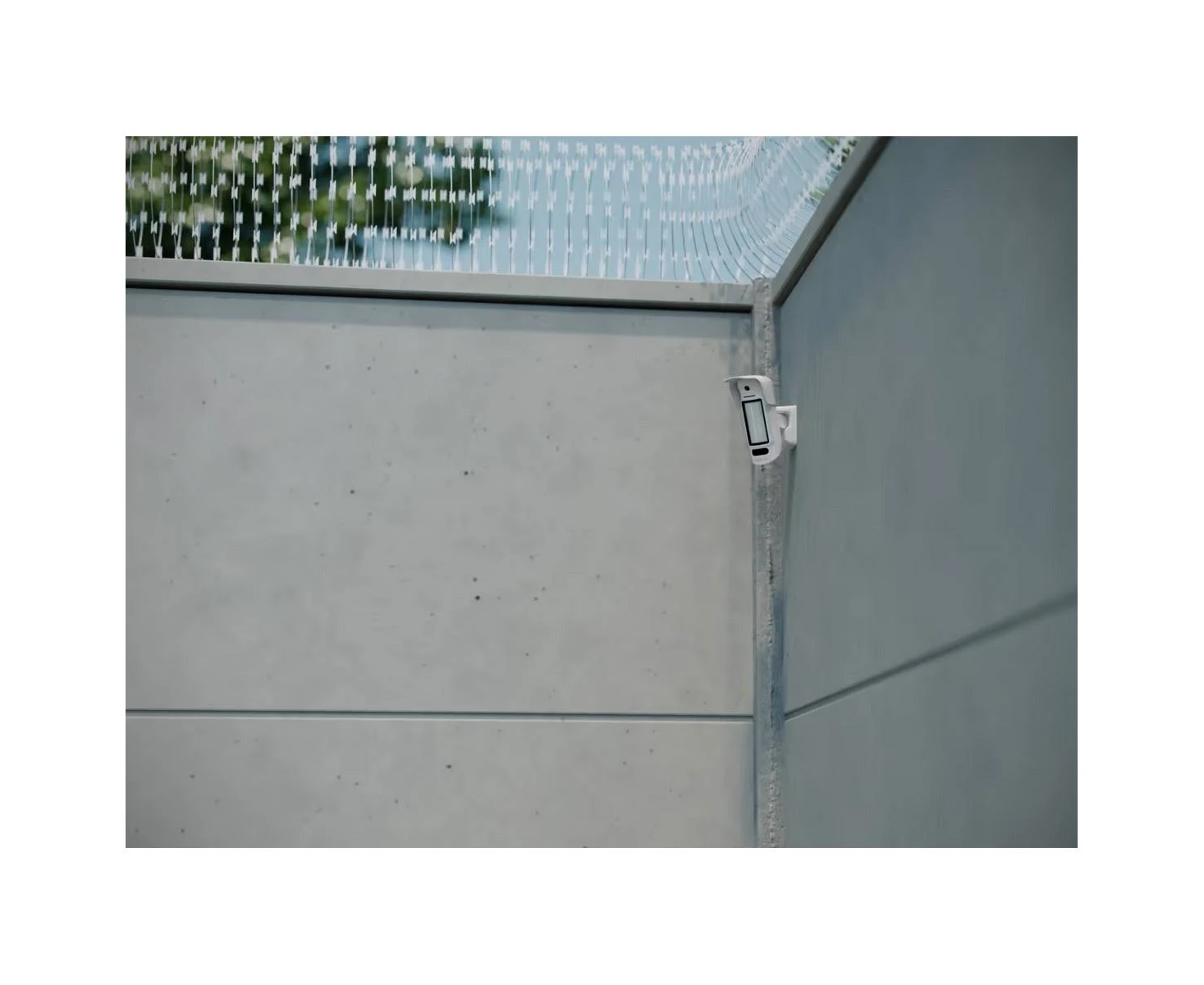

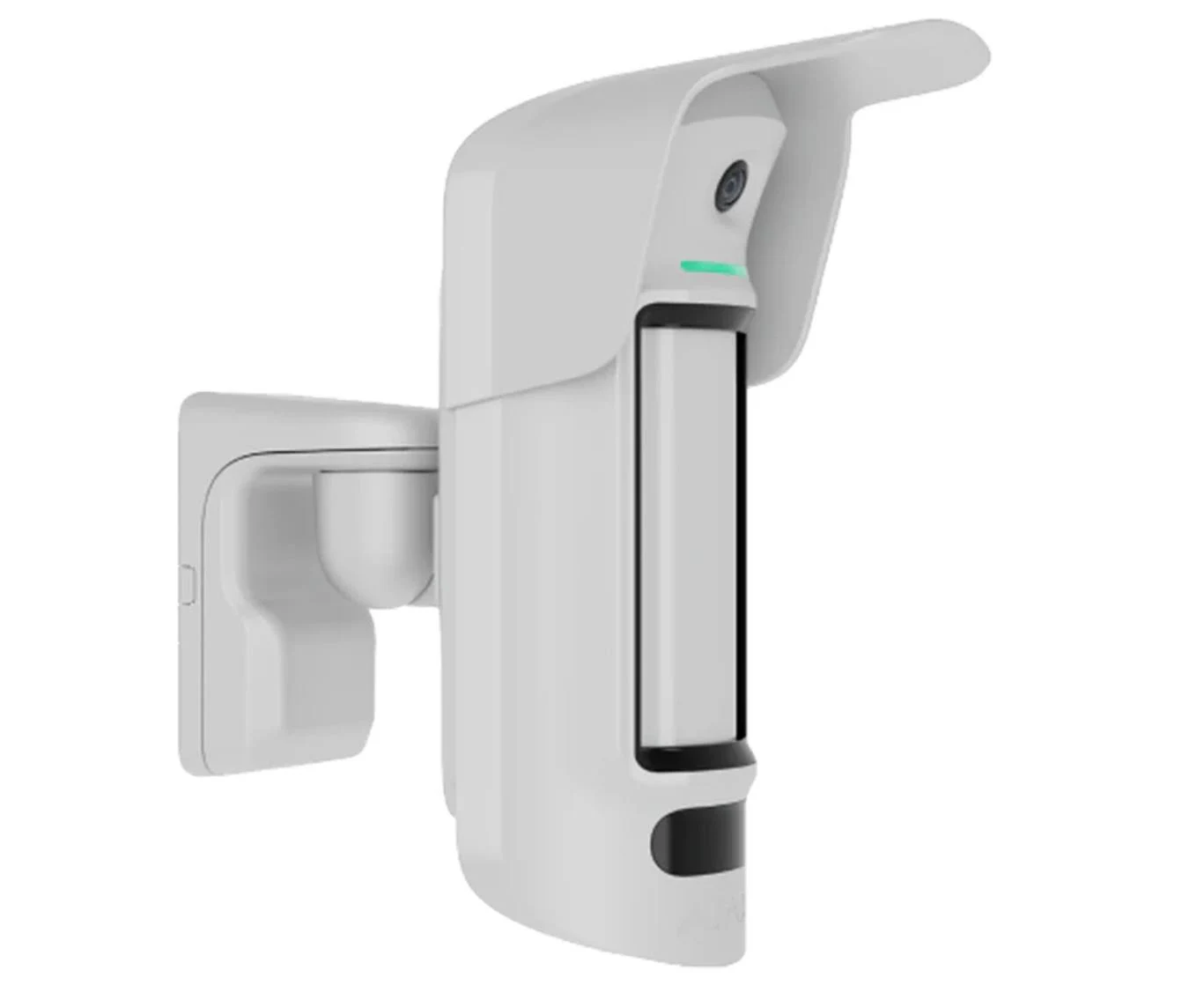

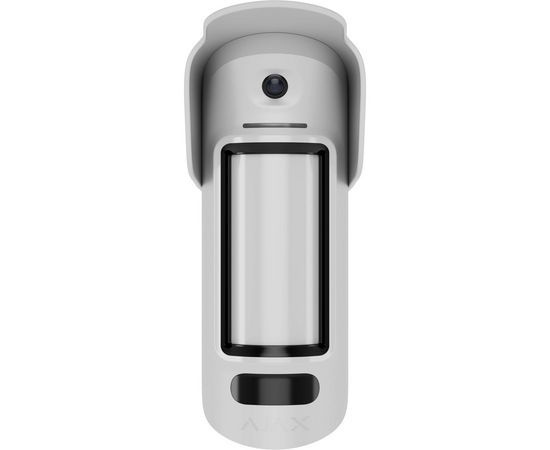

MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion detector designed primarily for remote locations, warehouses, and industrial complexes, yet equally suited for offices and private houses. The device can be installed at heights ranging from 2 to 4 m, providing extensive area coverage with no blind zones. With a built-in camera, it is easy to quickly assess the situation at the protected facility. This is possible thanks to several types of photo verification available: by alarm, by scenario, by schedule, by arming/disarming, and on demand. The false alarm filter distinguishes non-threatening factors, such as swaying tree branches or heat flows. The metal swivel mount allows for flexible adjustment of the viewing angle.
Captures movement where it is most needed
Keep any commercial premises secure day and night, with no blind zones or false alarms. MotionCam Outdoor HighMount (PhOD) Jeweller detects movement at a distance of 15 m. The detector instantly takes a series of photos so the user can check the reason for the alarm. All alarms are thoroughly checked at both software and hardware levels. At the software level, the device uses algorithms such as SmartDetect and LISA. At the hardware level, it is equipped with two types of sensors — two PIR sensors and a microwave sensor — to provide dual motion detection. Also, a Fresnel lens differentiates between the PIR diagrams of people and thermal noise.
