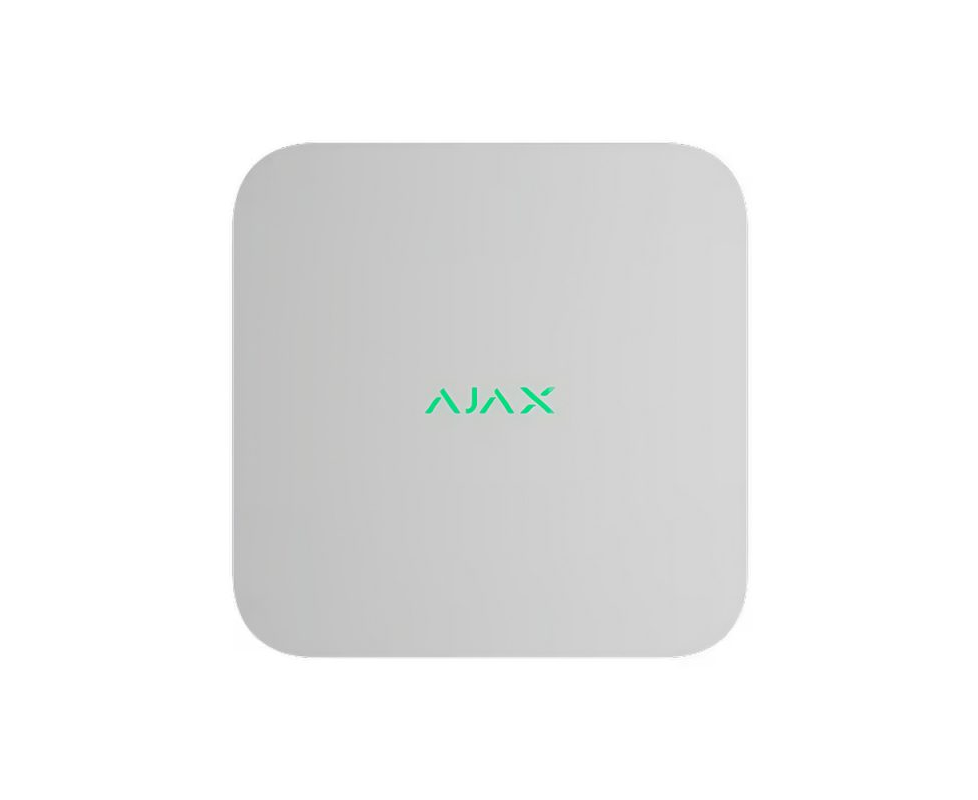

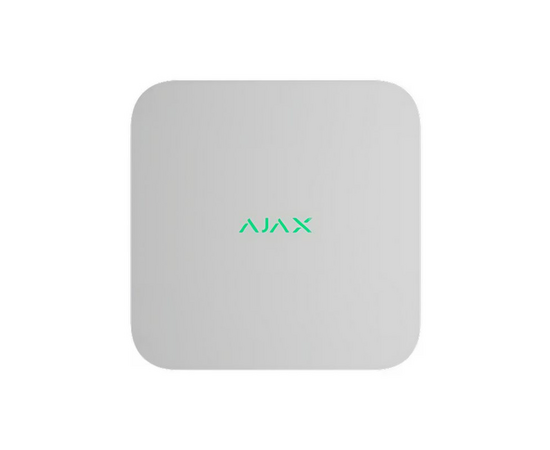

Ajax NVR 16ch
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Top-Tier Security
Ajax NVR is all about top-tier security. It combines video surveillance and Ajax systems seamlessly, offering instant access to video archives, even on the go. It's compatible with nearly any IP camera, bringing intrusion protection and automation into the picture. Trust in a professional security system with a legacy of millions of satisfied users.
Key Features:
- Instant Alarm Verification in High Resolution
- ONVIF/RTSP Support
- Adjustable Motion Detection for Cameras
- HDD Status Notifications in the App
- Fast Archive Navigation with Dual Stream Technology
- Archive Synchronisation with System Events
- Customizable Virtual Videowall
- Multi-Tiered Security: 2FA, Session Control, Password/Biometric Login
- H.264/H.265 Support
Ajax NVR offers performative hardware with a sleek design:
- Fanless Design
- Built-in Power Supply Unit
- Tamper Button
- HDD Fixation
- LED Indicator
Your Customers' Data is Secure
Rest easy knowing your clients’ data is stored securely in the European Union, complying with European data protection standards. Ajax NVR is NDAA-compliant, ensuring that every component is sourced from US government-approved manufacturers. It's undergone independent cybersecurity tests for your peace of mind.
Customizable Videowall for Simultaneous Monitoring
Combine all your visual data in one streamlined interface. The Videowall tab lets you monitor IP cameras and MotionCam series detectors simultaneously. You can rearrange tiles to your liking, and it's accessible on both mobile and desktop apps.
Smooth Archive Search
No more endless searching or waiting. Ajax NVR offers lightning-fast system response and smooth control, with dual streams and instant archive access. Find the specific clip you need with ease.
Rapid and Encrypted Data Transfer
Ajax JetSparrow, their new proprietary video transmission technology, ensures ultra-fast video management. Your customers get smooth archive navigation and instant live view.
Peer-to-Peer Transmission
- TLS Encryption
- High Stability
- Notification Synchronisation
High-Quality Visual Verification
Configure Ajax detectors to activate specific cameras and receive high-resolution visual alarm confirmations instantly.
Built-in Motion Detection
Optimize your video archive by setting up pixel movement detection, conserving HDD space and streamlining navigation.
Established Security Expertise
Ajax NVR offers enhanced archive security and restricted visual data access. Strengthen account security with password, biometrics, two-factor authentication, and session control.
End User-Controlled System
Only the end user has control, ensuring no hidden access. Access for PRO accounts is temporary and requires permission from the system administrator.
A Camera For Every Job
Choose from TurretCam, BulletCam, and DomeCam for ultimate versatility on the job. Installation and setup are hassle-free, with real-time NVR status updates through Ajax apps.
