Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Ajax WallSwitch

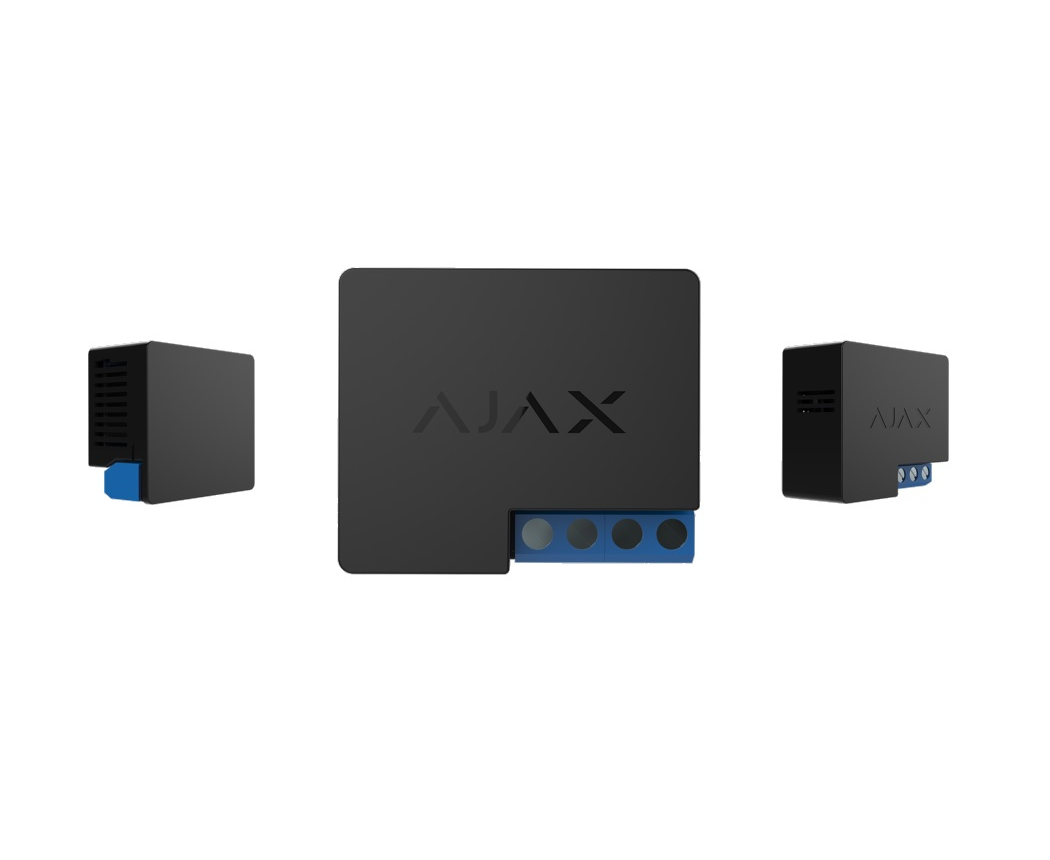

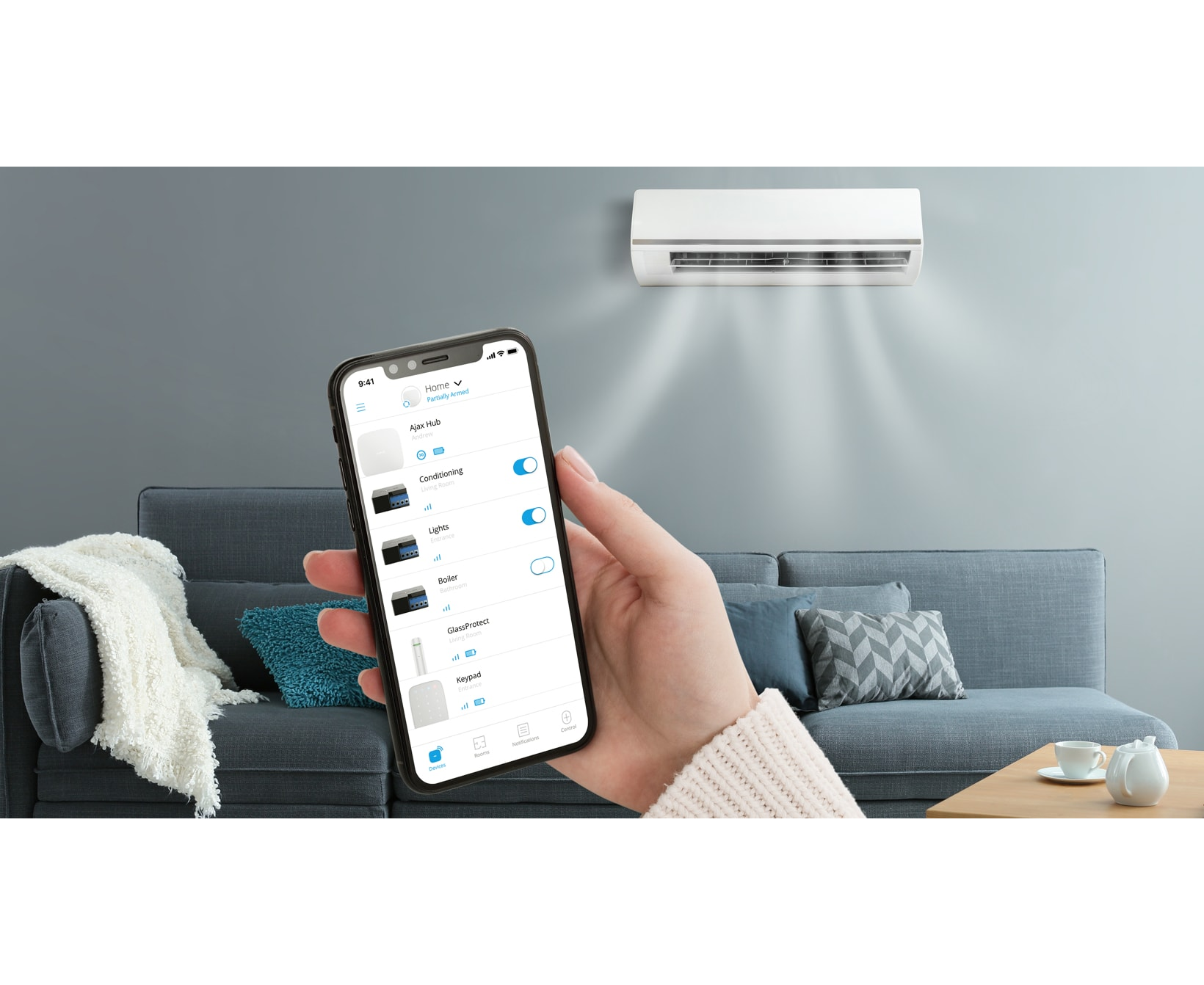

The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors. The device controls the electric power supply by means of relay, which closes and opens the power supply network. Operates in 110 V and 220 V mains. The meter shows the power consumption in real time. It is installed into a recessed wall plate and connected to the internal power supply network.
Tech specs
- Radio channel relay unit
- Wireless

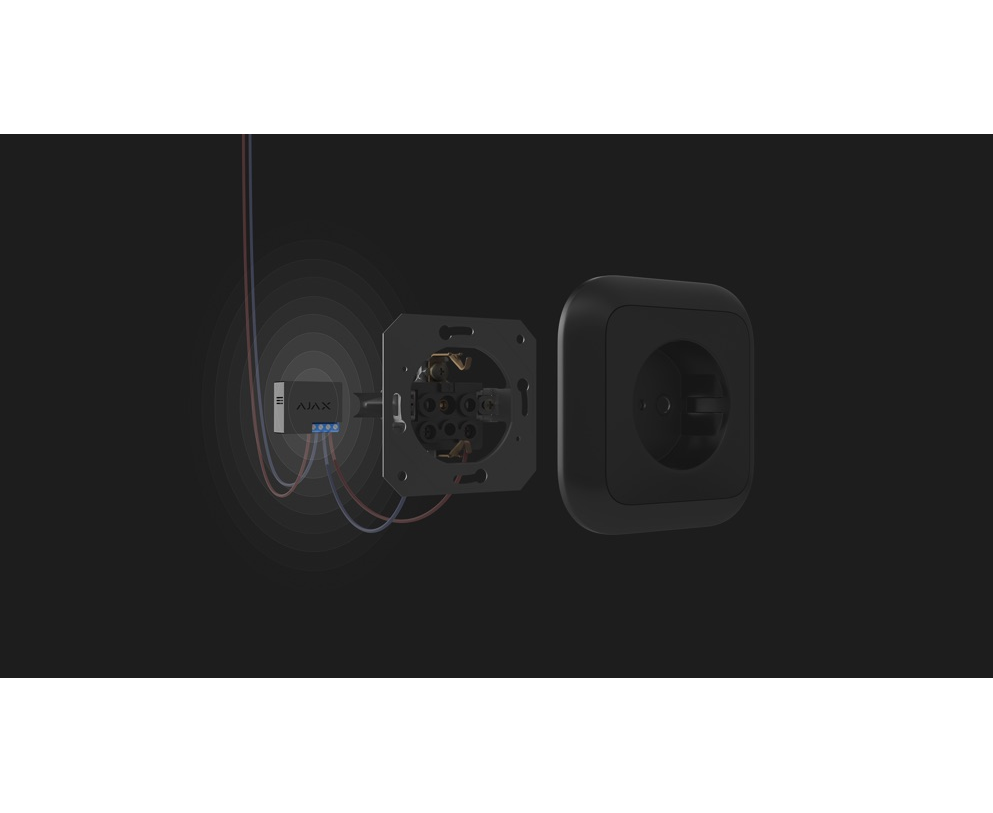

- Installs into wall plate
- Compatible with Ajax Hub, Hub Plus and ReX
- Voltage protection For 230 V mains: max — 264 V, min — 161 V, For 110 V mains: max — 126 V, min — 77 V
- 200,000 switch-ons
- MAximum load current 13A
- Maximum current protection 13A
- Maximum operating temperature >65°C in the wall plate
- Permissable power Resistive load at 230 V — up to 3 kW, Resistive load at 110 V — up to 1.5 kW
- Electric power meter function available
- Energy consumption parameter check - Current, Voltage, Power consumption
- Alarm signal delivery time 0.15 Seconds
- Power supply 110−230 V±10% 50/60 Hz
- Jeweller radio technology - Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12−300 s - Operating Temperature 0°С to +64°С
- Permissable Humidity Up to 75%
- Protection against Jamming
- Protection class of body IP20
- Dimensions 39 х 33 х 18 mm
- Weight 30g
- CE Certification
- 2 years replace or repair warranty
