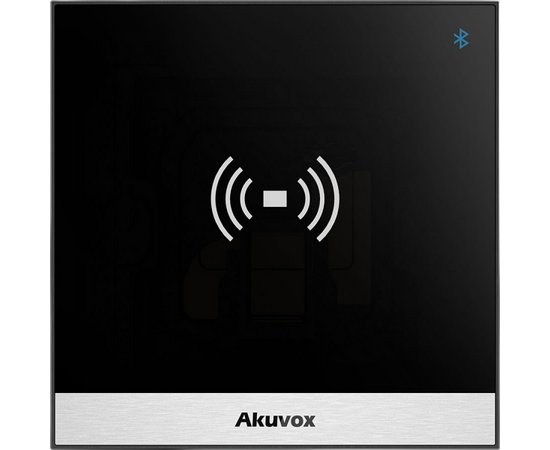

Akuvox - A03 IP Access Control Reader BLE 13.56MHz and NFC
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

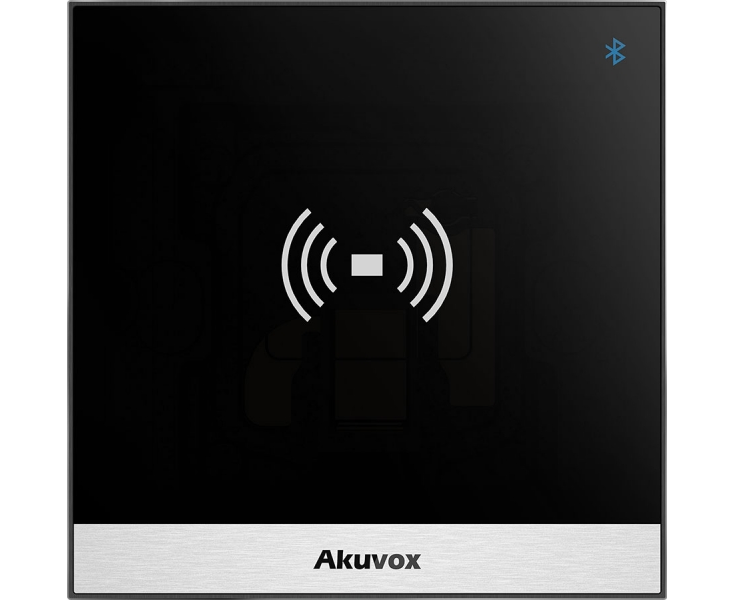

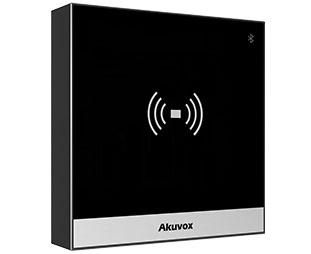

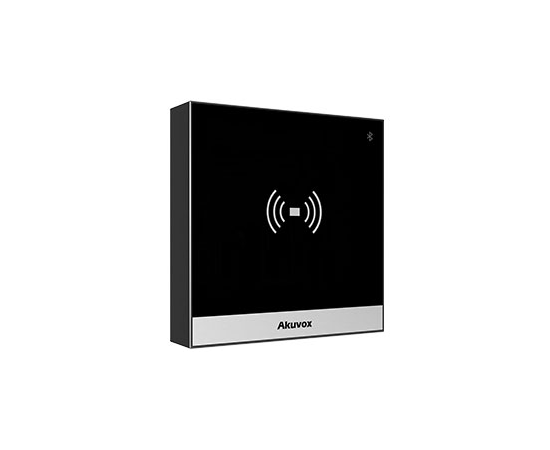

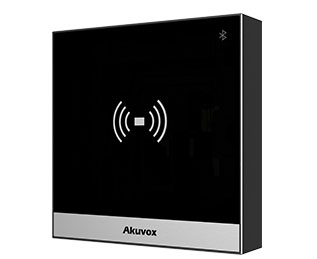

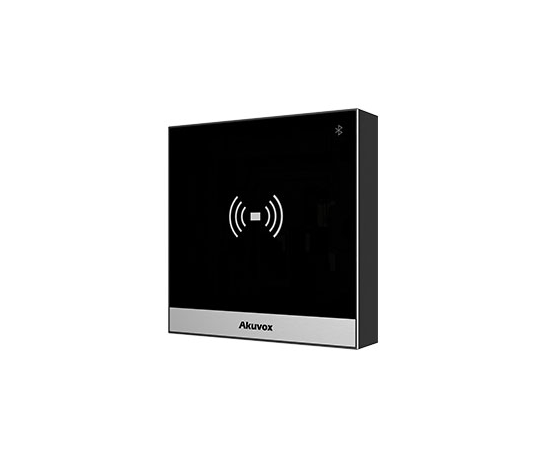

The Akuvox A03 Access Control Reader provides contactless access authentication via a choice of Bluetooth 5.0 (BLE), RFID and NFC - providing a flexible and secure door / gate access solution.
Part of the new Akuvox A0 Access Control Series, the A03 combines compact, modern design with simplicity and reliable performance.
The BLE and NFC authentication allows touch-free, keyless access via smartphone.
The A03 Access Reader is simple to order (out-of-the-box ready; no additional frames or backboxes required) and is fast & easy to install.

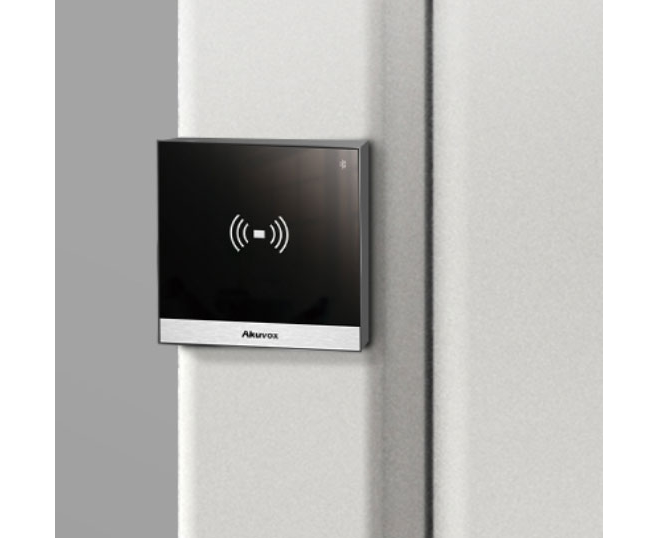

Can be Flush- or Surface-mounted. Includes surface-mount back plate.
- IP Access Control Reader
- Access authentication via BLE, RFID & NFC
- Web interface administration
- Keyless entry via smartphone (BLE, NFC)
- 20,000 card capacity and 100,000 event log
- Tamper-proof alarm
- Wave hand to unlock when using the Akuvox My MobileKey app with BLE 5.0 technology
- IP65 protection rating for indoor & outdoor applications
- Flush- or Surface-mountable
Description A03
- Power Supply PoE or 12V DC
- Recommended Cabling Cat5e or better
- Authentication Methods BLE, RFID, NFC
- RFID Supported Frequencies 13.56MHz & 125kHz
- Bluetooth Version Bluetooth 5.0
- Installation format Flush- or Surface-mounted
- Housing Material Aluminium Alloy
- Relay Port x1
- Input Port x2
- User ID Capacity Card Capacity - 20,000
- IP Protection Rating IP65
- Dimensions 86(W) x 86(H) x 33(D)mm
- Weight (Net) 0.30kg
- Weight (Gross) 0.40kg
