Akuvox - C313W-2 2 Wire 7" IP Indoor Touchscreen Intercom Answering Panel with Wifi (Linux)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

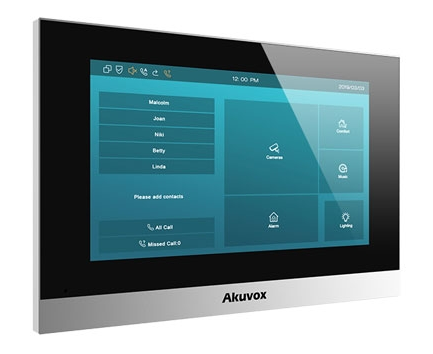

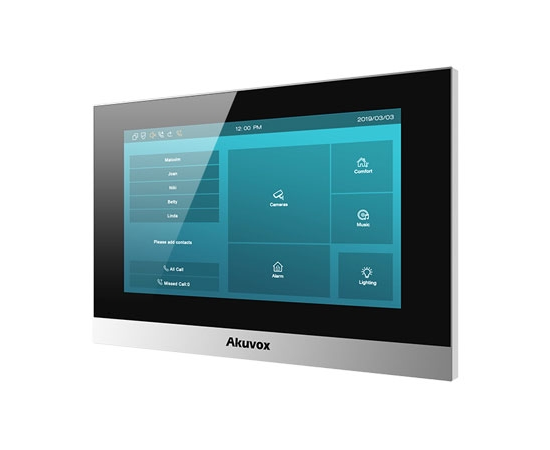

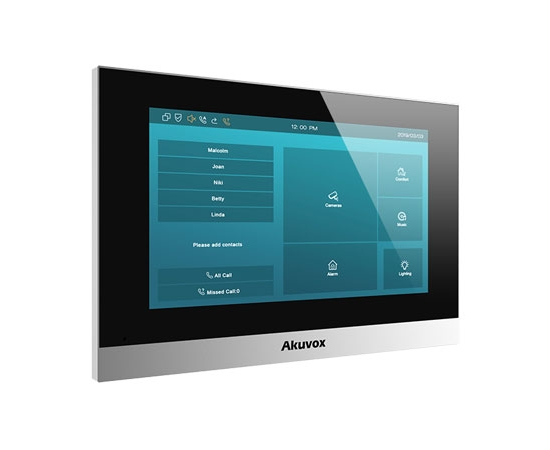

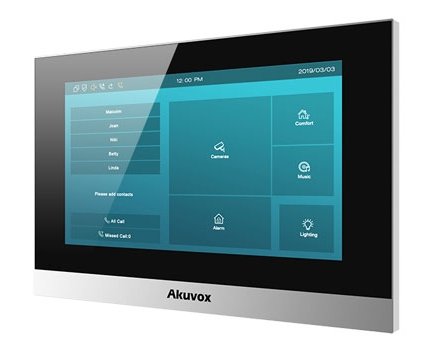

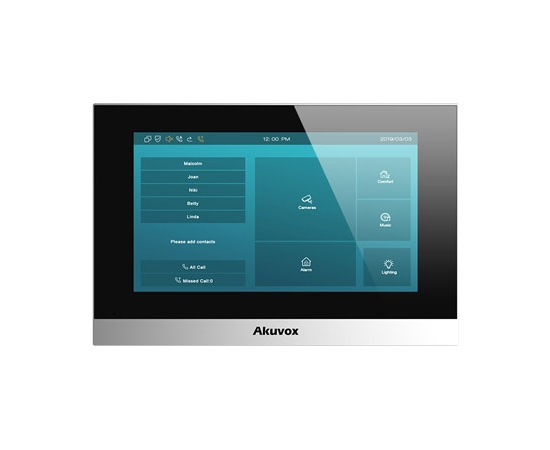

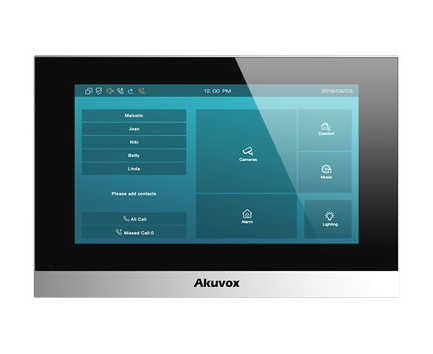

The Akuvox C313W-2 IP Indoor Touchscreen Intercom Answering Panel with a Linux (WiFi) operating system, provides audio and video communication with door phones via SIP 2.0 protocol.
The C313W-2 features a brilliant 7-inch capacitive touch screen display with energy saving mode .
The C313W-2 is 2 wire which allows for the IP device to be connected using a standard 2-core cable (such as twisted pair).
This option is ideal in retro-fit situations where there is a lack of availability of LAN cable in the existing infrastructure; existing 2-core cable can be utilized to transmit IP connected devices to add them to an existing analogue system.
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the 2-wire IP network
- Powered by NS-2 or external source
- Super long transmission distance via 2-wire cable
- Support US or European electrical wall box mounting
- RAM / ROM 64MB / 128MB
- Screen 7 Inch capacitive touch screen
- Display 7 Inch TFT LCD
- Wifi IEEE802.11 b/g/n, @2.4GHz
- Microphone -58dB
- Speaker 4Ω / 2W
- 2-wire ports 2 pair
- Ethernet ports 1xRJ45, 10/100Mbps adaptive
- Installation Wall-mounted & Desktop
- Working Humidity 0~90%
- Working Temperature -10°C ~ +45°C
- Storage Temperature -20°C ~ +70°C
- Protocols support Pv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Relay out 1
- Bell in 1
- I/O 8
- Dimensions 200.2 x 132.2 x 27.2 mm
- Weight (Gross) 0.00kg
