Akuvox - C319A 10" IP Indoor Touchscreen Intercom Answering Panel with Camera Wifi Bluetooth Android 9.0
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

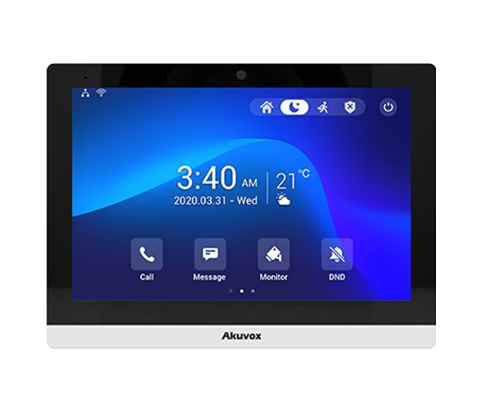

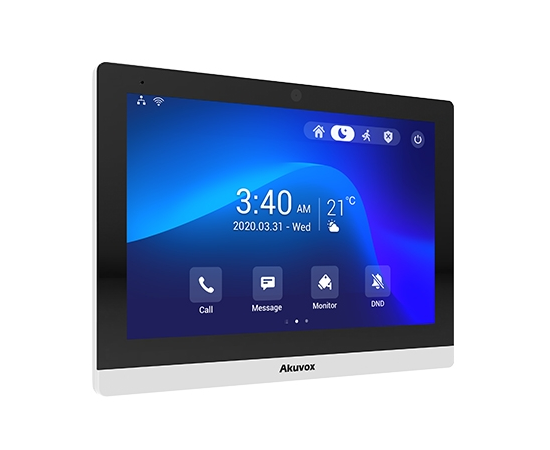

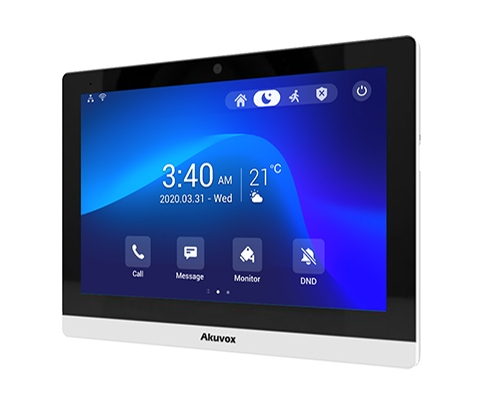

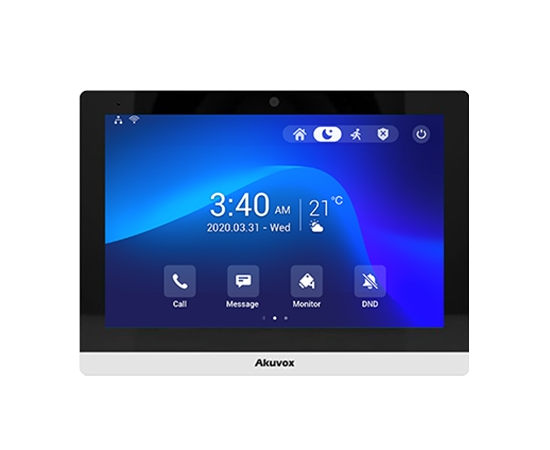

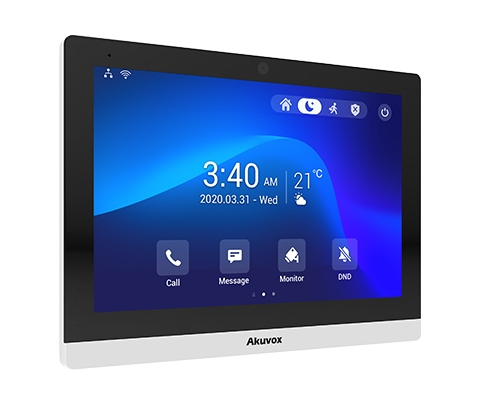

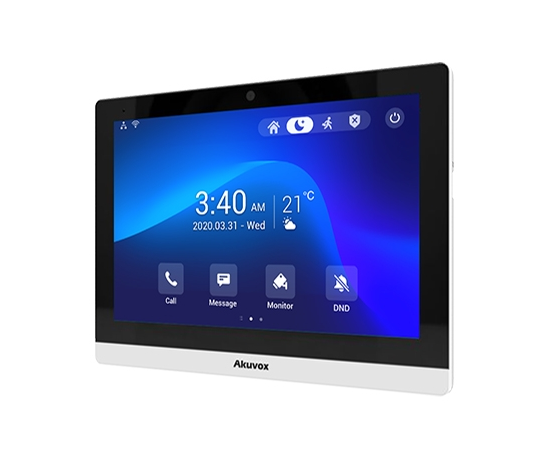

The Akuvox C319A Indoor Intercom Panel is a luxury door access / communication intercom featuring 10" full-colour touchscreen.
This multi-functional touchscreen door entry panel uses an Android 9.0 operating system and is ideal for apartment / MDU intercom systems and integration with the Akuvox range of professional door intercom devices.
The Akuvox C319A model features a 10 inch capacitive touchscreen, colour camera, ABS plastic body and integrated wifi/bluetooth allowing for wireless network and third-party device connectivity.
Much more than just an internal door intercom, the C319A uses a stylish, user-friendly interface featuring numerous pre-installed functions and applications and can be fully-integrated with other third-party, IP-connected / smart home devices (such as lighting, heating, blinds, etc) and automation platforms such as Control4.
Ideal for use in apartments, multi-dwelling units (MDUs), residential care homes, large villas / home complexes and office environments.
- Luxury door intercom panel
- 10 inch capacitive touch screen with energy saving mode
- IP addressable for use with Akuvox range of IP Intercom devices
- Android operating system; simple to use, control and configure
- High definition view of visitors at the door
- Remote door unlocking
- Two-way video and audio from connected intercom / door access devices on the network
- Integration with third-party IP-connected devices
- Easily integrates with SIP systems
- RAM / ROM: 2GB / 8GB
- Integrated WiFi: IEEE802.11 b/g/n, @2.4GHz
- Android 9 OS
- Touch Screen Display Normally black, Transmissive, Projected Capacitive, Luminance 350 cd/m²
- LCD Size 10 inch IPS (Diagonal)
- Display Aspect Ratio 16:9
- Display Resolution 1280 x 800
- Contrast Ratio 900:1
- Memory RAM / ROM: 2GB / 8GB
- Video Streaming Formats H.263 & H.264
- Ethernet ports 1xRJ45, 10/100Mbps adaptive
- Power supply 802.3af Power-over-Ethernet or 12V DC connector
- Relay Out 2 Relay Out (NO/COM/NC)
- Housing Material Plastic
- Built In Camera 1MP CMOS
- BLE Support BLE 4.2
- Memory Slot 1 Micro SD slot
- Speaker Dual speakers, 4Ω / 3W
- Microphone -26dB
- Operating Temperature -10° to 45°C
- Dimensions 251(W) x 182.5(H) x 29.75(D) mm
- Weight (Net) 1.00kg
- Weight (Gross) 1.50kg
