Akuvox - IT88A 10" Touchscreen Intercom Answering Panel with Camera, WiFi & Bluetooth. Android 9.0
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

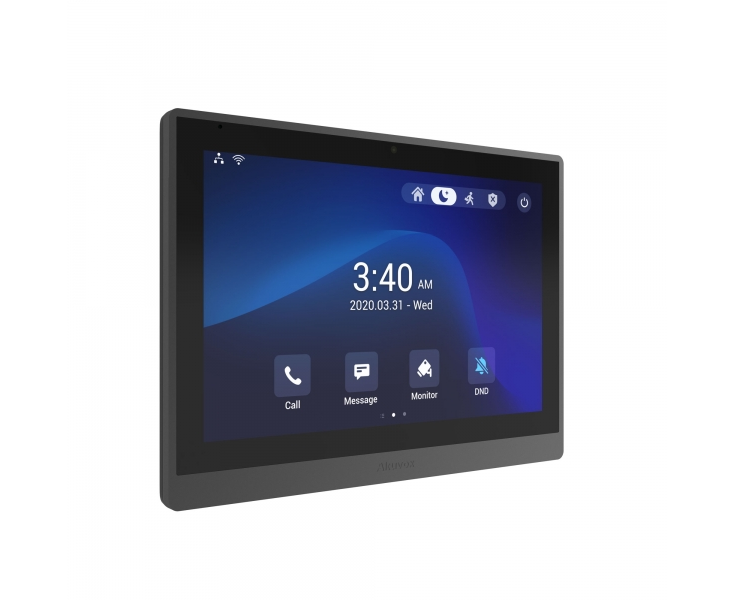

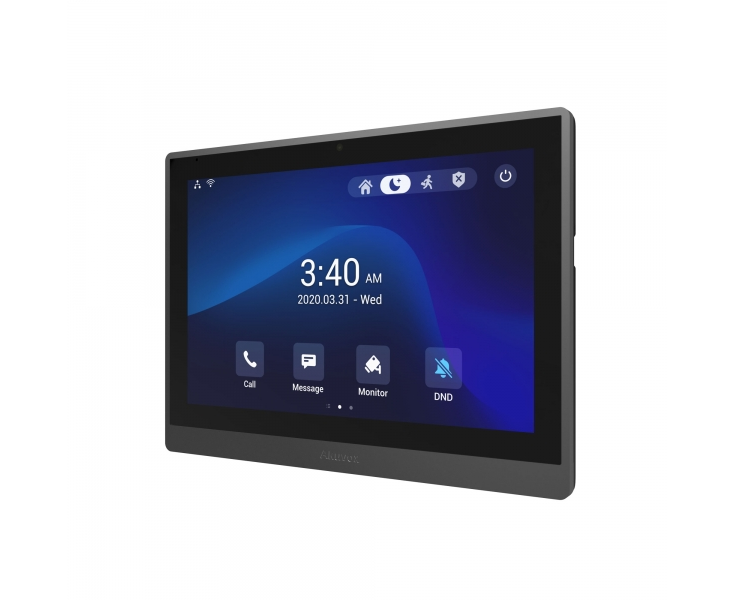

The IT88A Indoor Touchscreen Intercom is a multifunctional modern home security device with Camera featuring WiFi and Bluetooth capabilities with SIP PBX.
The IT88A is Android OS 9.0 and features capacitive touch screen with exceptional audio/video communication for identifying and allowing access into a building. The intercom supports real-time entrance monitoring through ONVIF/RTSP for view-to-view interaction.
The IT88A can be used for room-to-room communication using SIP 2.0 protocol.
The rich interface featured in the IT88A is easy to integrate into a pre-existing digital installation where home automation or where tele health care in applications such as residential care homes may be necessary.
The user-friendly interface is easy to use offering a simple solution with minimum training for users to operate.
The Akuvox Range:
Akuvox provides a series of high-end Intercom systems used in a wide-range of applications and encompasses a variety of products with different combinations of; SIP telephone, Touchscreen, Camera, Numeric Keypad, Card Reader, Facial Recognition technology, Vandal-proof and IP rating.
Camera
• 1MP CMOS Camera
Application Scenario
• Villas
• Apartment complexes
• Home automation systems
• Modern interiors
- Android 9 OS
- 10-inch capacitive touch screen with energy saving mode
- Built-in 1MP CMOS camera
- HD video and audio communication
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Built-in SIP PBX function
- Built-in smart voice assistant
- Built-in Bluetooth and WiFi
- Microphone -26dB
- Speaker Dual speakers, 4Ω/3W
- Ethernet ports 1xRJ45, 10/100Mbps adaptive
- Screen 10 Inch capacitive
- Wi-Fi IEEE802.11 b/g/n, @2.4GHz
- Bluetooth Support Bluetooth 4.2
- Camera 1MP camera, CMOS
- Installation Wall-mounted &Desktop
- Display Mode Normally black, Transmissive
- Working Humidity 10~90%
- Working Temperature -10°C~ +45°C
- Storage Temperature -20°C~ +70°C
- Dimensions 251 x 182.5 x 29.75 mm
- Weight (Net) 1.49kg
- Weight (Gross) 1.95kg
