Akuvox - NX-2 KIT IP over 2 Wire Converter with PoE. Kit includes NX-2 and NC-2 converter
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Upgrade Your Intercom to 2 Wire IP with PoE – no rewiring needed
Transform your outdated analog door intercom system into a modern, IP-based solution with the Akuvox NX-2 Ethernet to 2-Wire Adaptor Kit. Designed for seamless integration, this innovative device enables you to upgrade your intercom without the cost and hassle of running new cables.
By utilising existing two-wire infrastructure, the NX-2 delivers both power and data via 2 wire IP with PoE, making it the ideal choice for residential, commercial, and industrial applications.
Why choose the Akuvox NX-2 KIT?
Seamless Upgrade to IP - Convert your existing 2-wire analog system to a cutting-edge IP network effortlessly.
Power Over Ethernet (PoE) Support - Eliminates the need for additional power sources, simplifying installation.
Long-Distance Transmission - Ensures stable and reliable communication across extensive wiring setups.
Easy, Cost-Effective Installation - Avoids expensive rewiring, reducing both labor costs and downtime.
Universal Compatibility - Works with a wide range of 2-wire intercom systems, providing a hassle-free upgrade path.

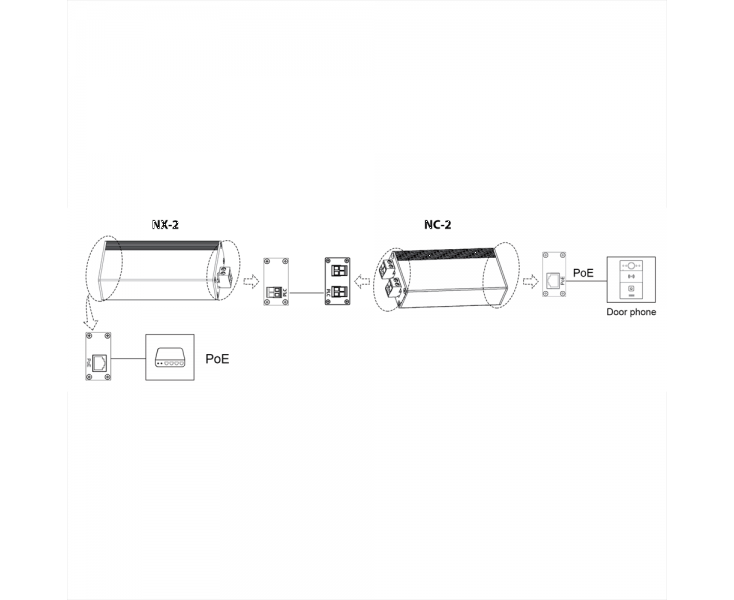

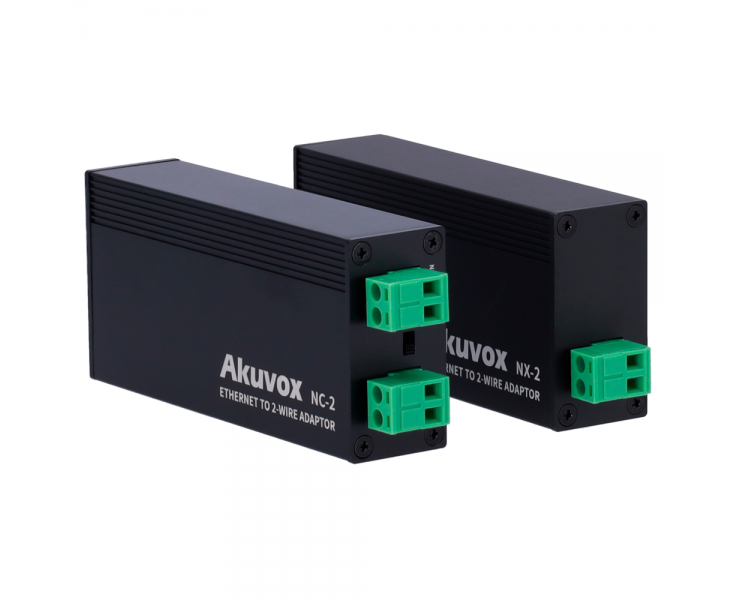

The NX-2 Kit includes two essential components:

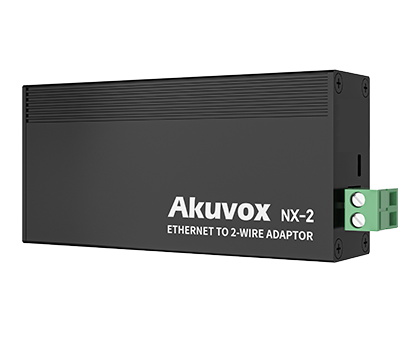

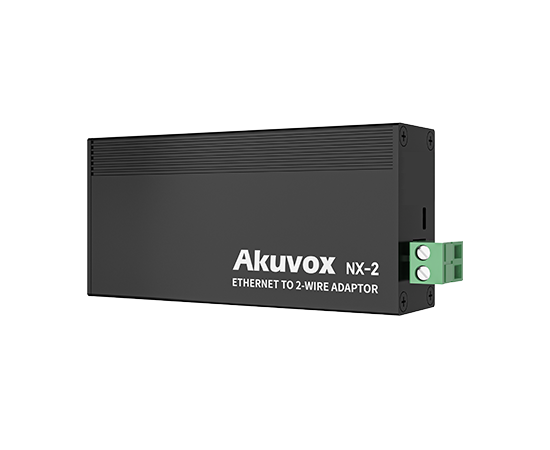

NX-2 Adapter – Connects to your existing 2-wire system, converting analog signals into digital data for IP transmission, including embedded PoE.
NC-2 Converter – Links to your IP network, ensuring seamless communication between old and new intercom devices.
Ideal Applications:
Apartment Buildings & MDUs – Upgrade resident intercoms to video, mobile access, and smart security without disrupting tenants.
Office Buildings – Enhance security and visitor management with modern IP-based intercom systems.
Hospitals & Healthcare Facilities – Improve communication for patient rooms, nurse call systems, and facility-wide announcements.
Schools & Universities – Deploy IP intercoms in key areas like entrances and administrative offices without replacing entire systems.
Gated Communities – Enable remote access control with video intercoms linked to smartphones or other IP devices.
The Akuvox NX-2 Ethernet to 2-Wire Adaptor Kit is a game-changer for those seeking a simple yet powerful 2 wire IP with PoE solution. With easy installation, broad compatibility, and cost-effective performance, it’s never been easier to modernise your intercom system while preserving your existing wiring.
- IP converter kit to 2 wires
- 1 group of 2 strands

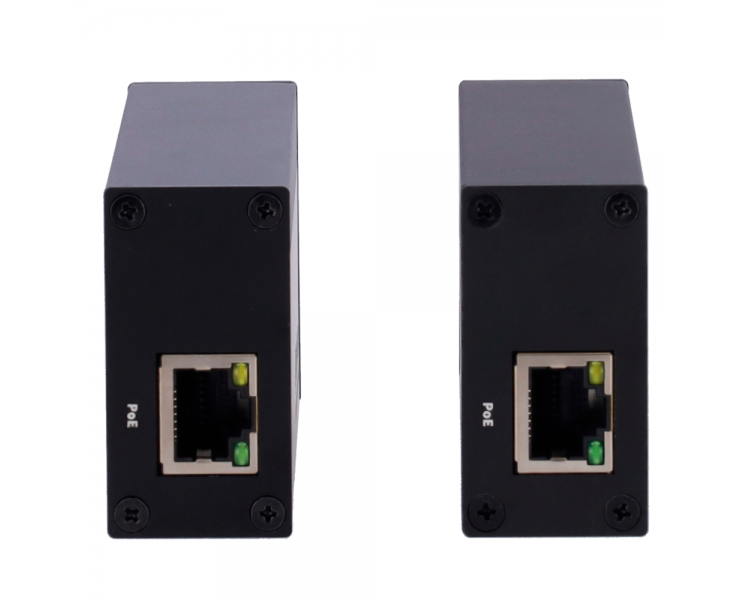

- 1 TCP/IP group with RJ45 | PoE input and output
- Power IP devices via 2 wires
- Standard PoE power supply
- Kit includes NX-2 Adapter & NC-2 Converter
- Communication TCP/IP
- RJ45 port 1 x RJ45 port, 10/100Mbps adapter
- 2-wire ports 1 pair
- PoE Input
- Working temperature -10℃~+50℃
- Storage temperature -20℃~+70℃
- Dimension 113(W) x 48(H) x 25(D) mm
- Weight (Net) 0.60kg
- Weight (Gross) 0.70kg
