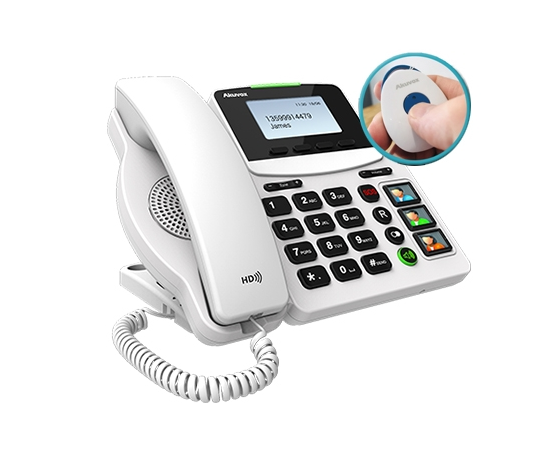

Akuvox - R15P(869) Social & Care Home IP Phone with Emergency Pendant (EP10)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

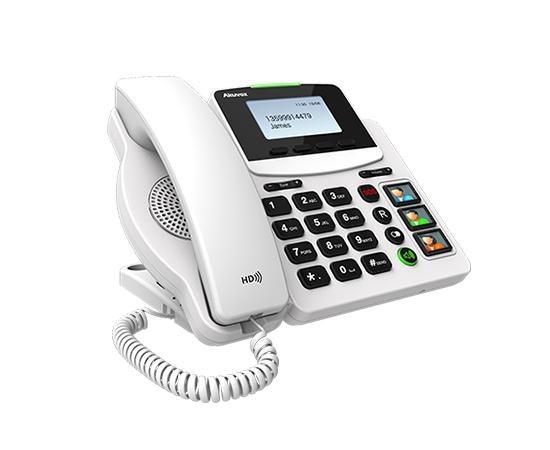

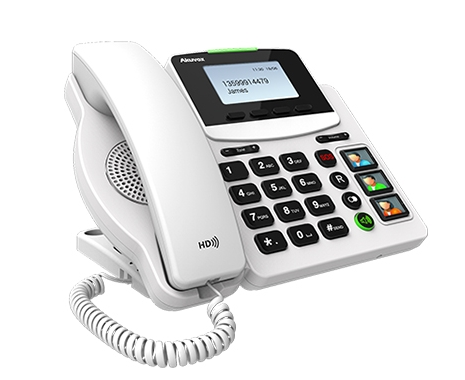

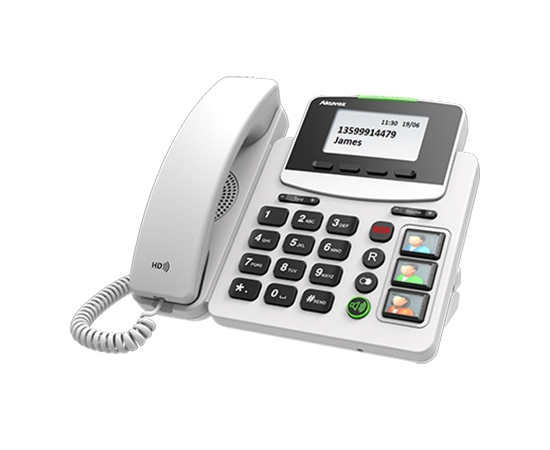

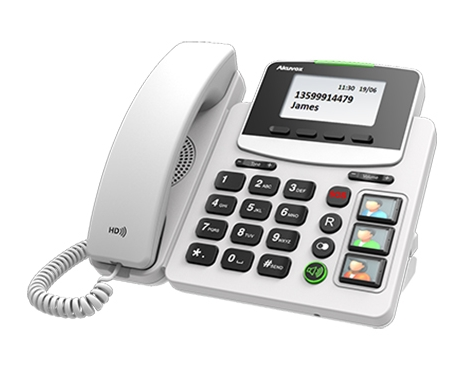

The Akuvox R15P(869) brings a high-quality and cost effective solution to the health care and seniors. The user interface of the Akuvox R15P(869) makes navigation easy and requires minimal training.
The Akuvox R15P PoE SIP phone was designed with social and health care as a focus. To support and offer greater familiarisation for the user, the R15P phone’s big button design simplifsy the dialling process, along with dedicated SOS call and 3 extra-large speed dial buttons for friends and family. These 3 keycaps are removable for a photo of the person behind each button.
Along with the EP10, the user can answer an incoming call and make an emergency call by pressing the button, hands free. Each phone can pair with up to 10 EP10s.

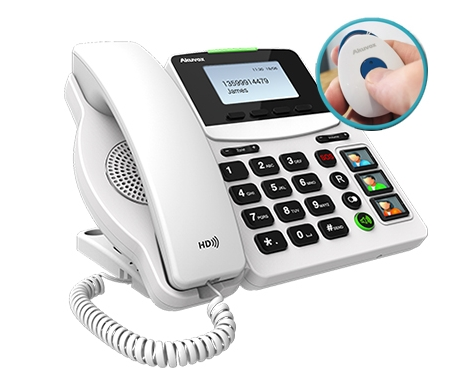

Compatible with the Akuvox EP10 Telecare Pendant, this allows elderly or infirm users and residents to simply press the pendant button to make an emergency call to a designated family member or twenty-four hour service centre should there be a fall or accident. This product is supplied with 1x EP10 as part of the package.
Phone Features:
1 Line (Support 1 SIP account)
Support Call Waiting, Call Forward, Call Transfer
Call on Hold, Mute, Auto-answer, Redial, DND
Local 3-Way Conference
Volume Adjustable, Ring tones Selectable
Speed Dial, Hotline
Multicast Paging
Daylight Saving Time
Country Ringtone Signal
Direct IP call
Auto Redial, Call Return
Dial Plan
XML Browser
Action URL/URI
Phonebook (500 entries), Blacklist (100 entries),Call logs (100 entries)
5 Remote Phone Book URL Supported
LDAP
Multi-Language Support
IP-PBX Features:
SMS, MWI
Music on hold, Intercom
BLF(Busy Lamp Field)
Call Pickup, Group Call Pickup
Hot Desking
Call Recording
Call Completion
Anonymous Call, Anonymous Call Rejection
Security Features:
Support HTTPS (SSL)
Support SRTP for Voice Data Encryption
Support Login for Administration
OpenVPN, IEEE802.1X
Digest Authentication Using MD5/MD5-sess
AES Encryption for Configuration file
Keypad Lock
Prevent SIP Hacking
SIP Over TLS
Network Features:
SIP V1(RFC2543), V2(RFC3261)
Fully Compatible with Asterisk, BroadSoft Platform
QOS
Route Mode
LLDP
NAT Transverse: STUN Mode
Static IP/DHCP for IP configuration, pppoe
3 DTMF modes: In-Band, RFC2833, SIP INFO
HTTP/HTTPS Web Server for Management
Proxy Mode and Peer-to-peer SIP Link Mode
NTP for Auto Time Setting
UDP/TCP/DNS-SRV(RFC 3263)
TFTP/FTP/HTTP/HTTPS Protocols
802.1Q VLAN
Administration Features
Auto provisioning using FTP/TFTP/HTTP/HTTPS/PnP
Dial through IP PBX Using Phone Number
Dial through IP PBX Using URL Address
Configuration Managements with Web, Keypad on the phone, and Auto
Provisioning
SNMP
TR069
Package Tracing Export, System Log
- Compatible with EP10 Emergency Call Telecare Pendant (comes supplied with 1 x EP10)
- Easy to use
- HD Voice with High Ajustable Volume
- Boost Button, Adjustable Tone
- Hearing Aid Compatible (HAC)
- Big Buttons, SOS key
- Up to 10 Wireless Emergency Pendants Supported(Optional)
- Support PoE
- Fully Compatible with Asterisk, BroadSoft Platform
- Narrowband Codec PCMA, PCMU, G.729, G723_53, G723_63, G726_16, G726_24, G726_32, G726_40
- Wideband Codec G.722
- 3 DTMF modes In-Band, RFC2833, SIP INFO
- 3 LED Lights (1 Power Light, 1 Handfree Light and 1 SOS Light)
- Headset Port 1*1*RJ9(4P4C)
- Handset Port 1*RJ9(4P4C)
- Ethernet Ports 2 RJ45 10/100
- Display
- Flash Memory 8M Bytes
- POE IEEE 802.3a
- AC Power Adapter Output DC 5V/1A
- AC Power Adapter Input AC 100-240V
- Operating Humidity -10~95%
- Storage Temperature -10~50℃
- Dimensions 250 x 206 x 109 mm
- Weight (Net) 1.19kg
- Weight (Gross) 0.00kg
