Akuvox - R20B5F Compact IP Door Intercom Unit with 5 Buttons (Video & Card reader), incl. Flush Mount Backbox
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

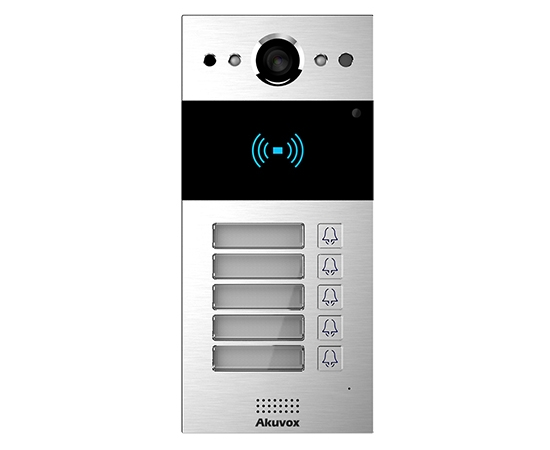

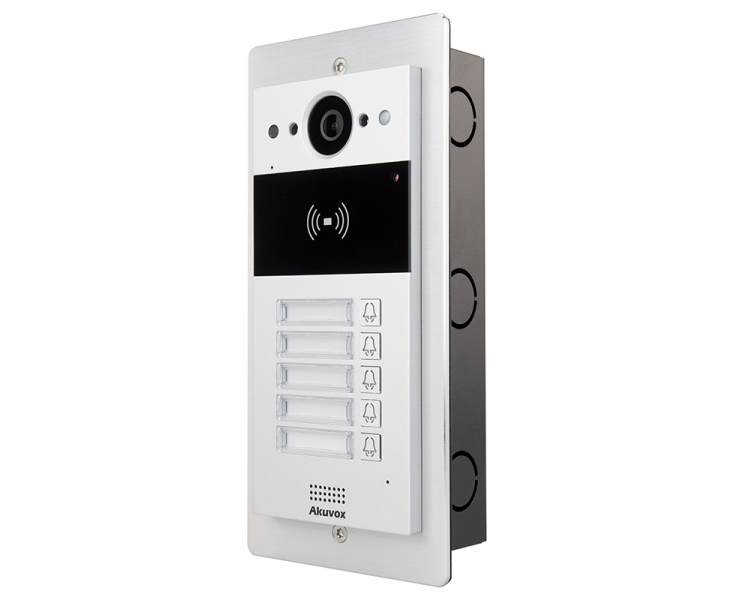

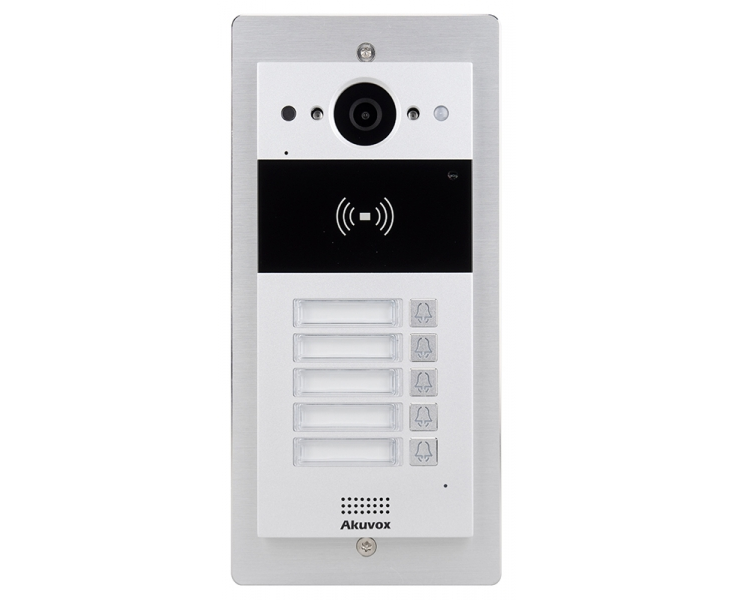

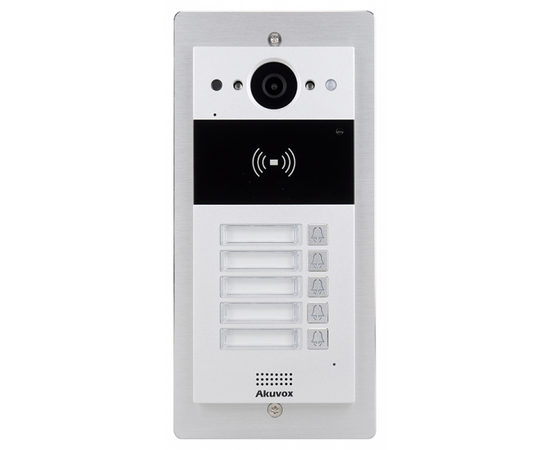

The Akuvox R20B5F is a highly-compact, IP-connected Door Intercom. It features 5 Call Buttons with Nameplates, high resolution colour camera, RFID card reader and NFC contactless via smart phone for secure remote audio/video communication and door entry.
Using the latest IP connectivity technology, the Akuvox R20B5F intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.
The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.
In addition, the built-in NFC allows for contactless and secure access using NFC enabled smartphones.

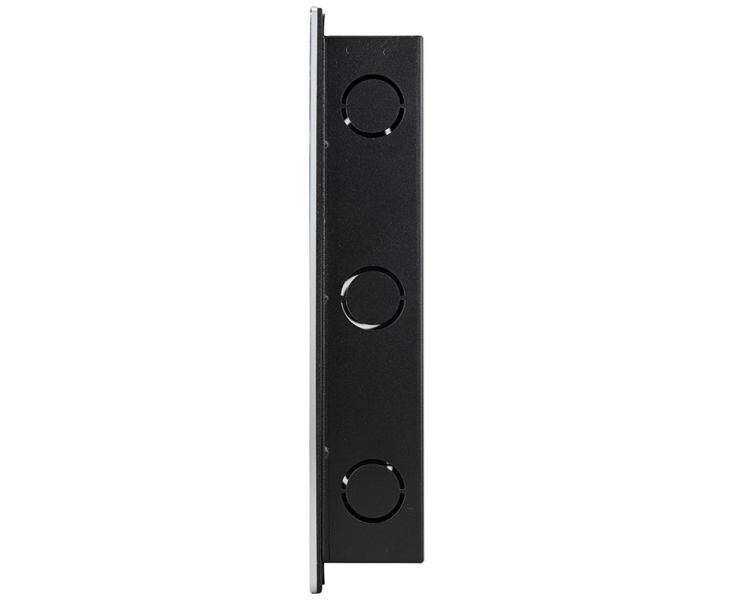

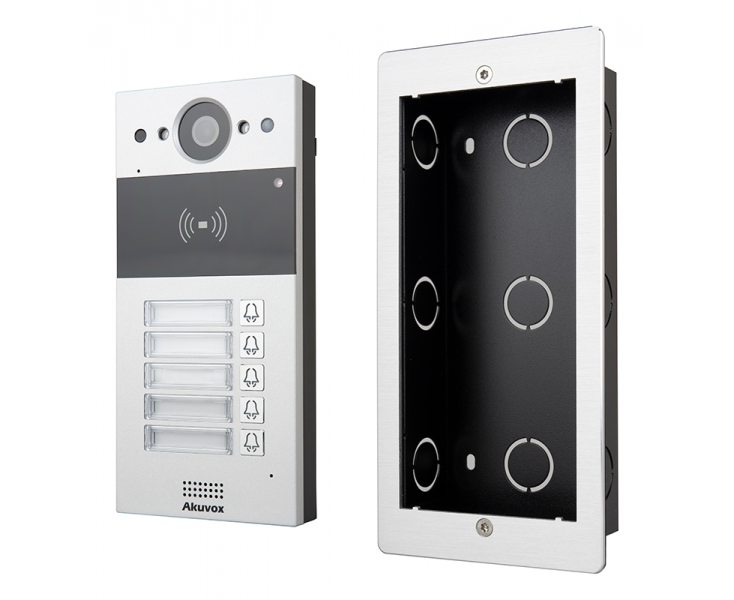

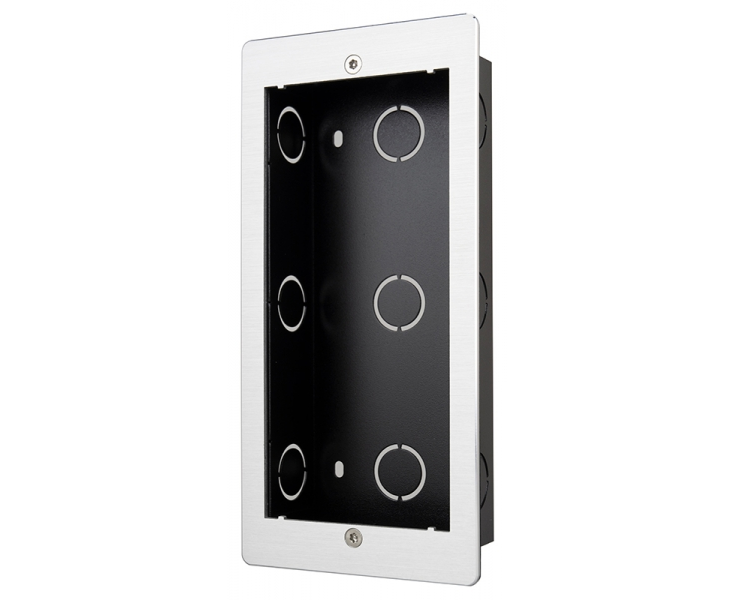

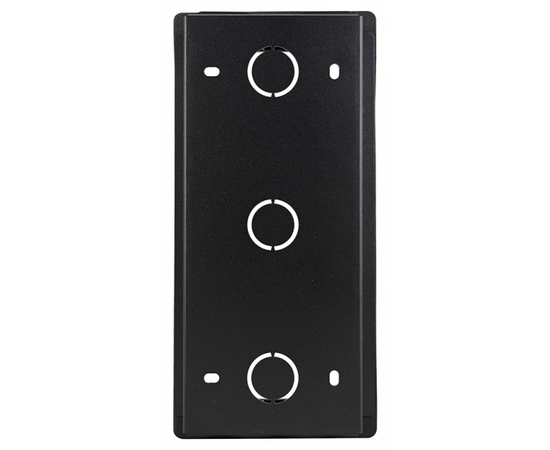

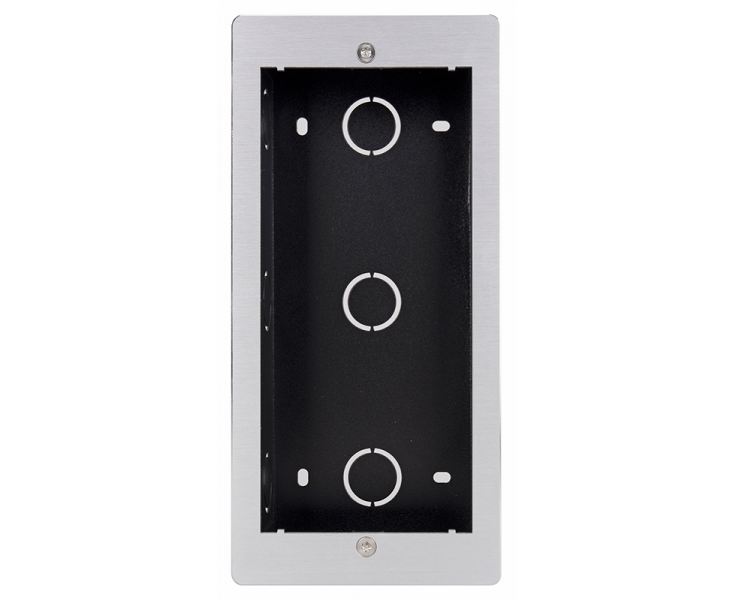

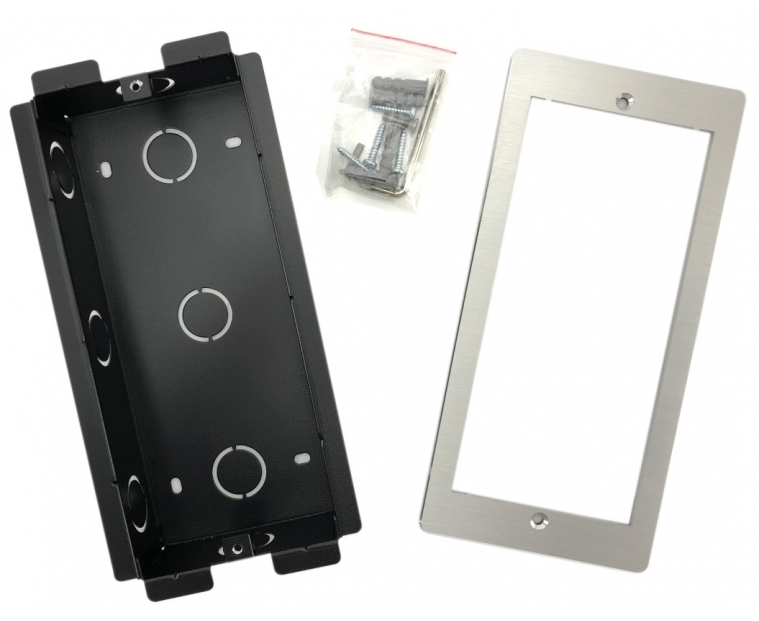

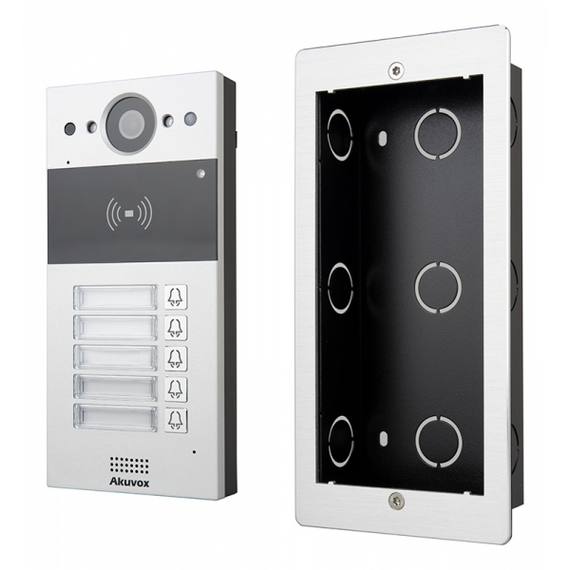

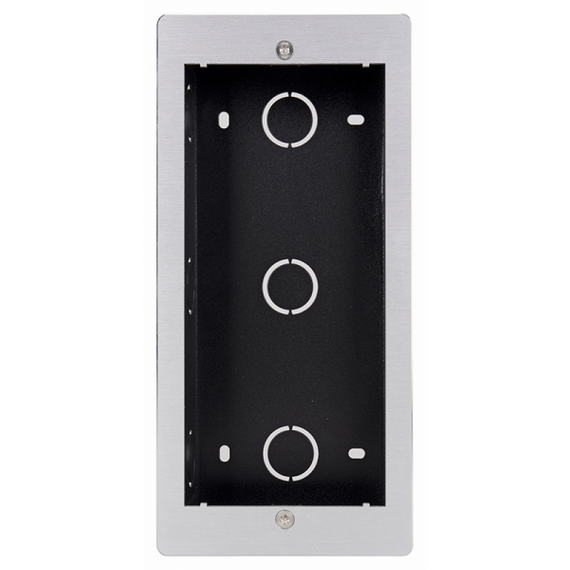

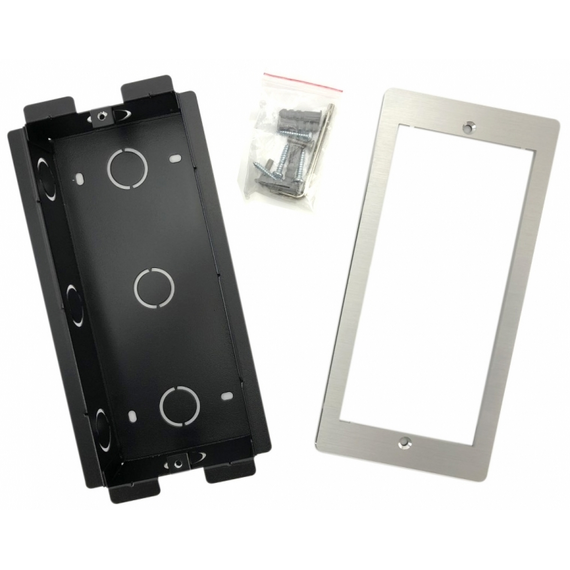

This model is supplied complete with flush-mount backbox.
IP65 protection rating allows for internal or external location.

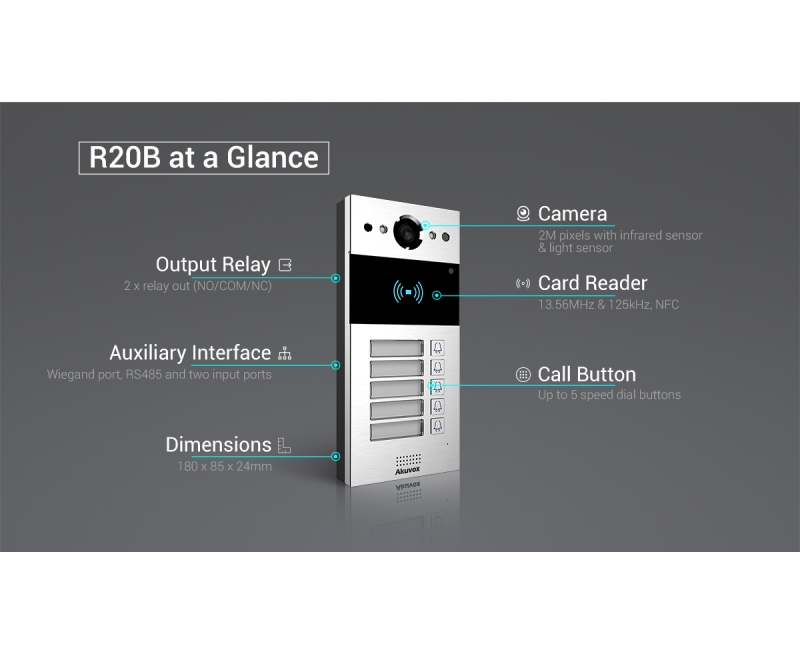

- IP connected Door Intercom
- Integrated RFID Card Reader
- nfc
- IP65 protection rating
- 5 x Call Buttons
- Wide-angle camera: 110°
- High resolution video: 1080p
- Complies with SIP standard for easy integration in every SIP capable PBXs
- Complies with ONVIF standard for easy integration with any network surveillance system
- Wide Dynamic Range for improved low light performance
- Water-proof & Dust-proof protection rating IP65
- Camera 2M pixels, with automatic lighting
- RFID Card Reader 13.56MHz & 125kHz
- Video Codec H.265 & H.264
- Low image light performance Digital Wide Dynamic Range
- Body Material Aluminium Alloy
- Buttons 5 x Call Buttons and Nameplates
- Relays 2
- Inputs 2
- Power Requirements PoE or 12v DC
- PoE (IEEE802.3af, Power-over-Ethernet)

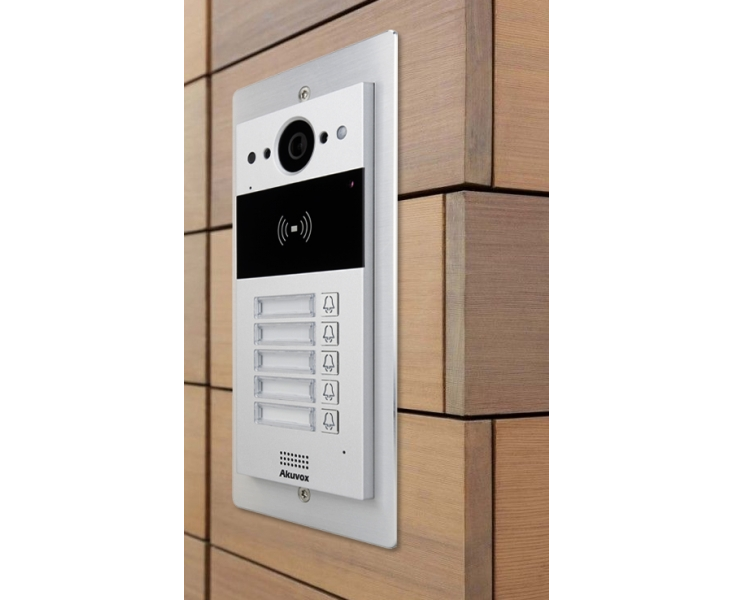

- Installation Flush mounted (Back box included)
- Overall Dimensions (incl backbox & faceplate) 226(H) x 108(W) x 54(D) mm

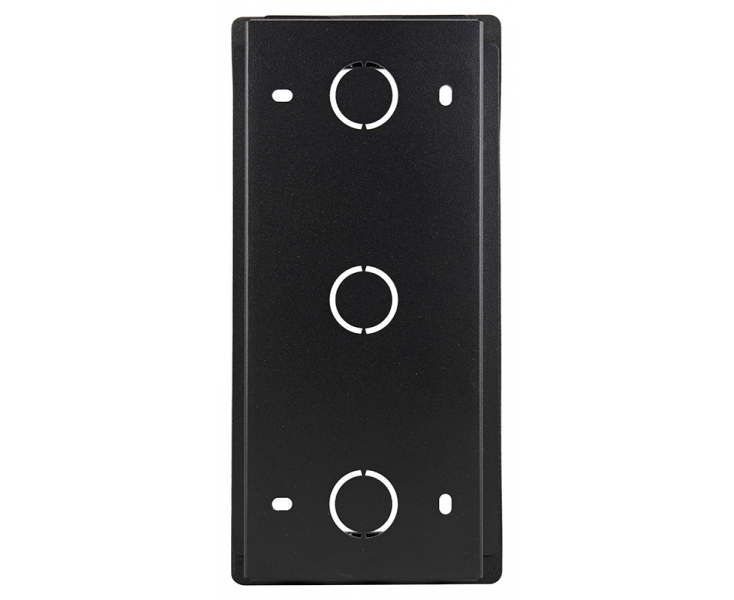

- Backbox Cut-out Dimensions 209(H) x 89(W) x 40(D) mm

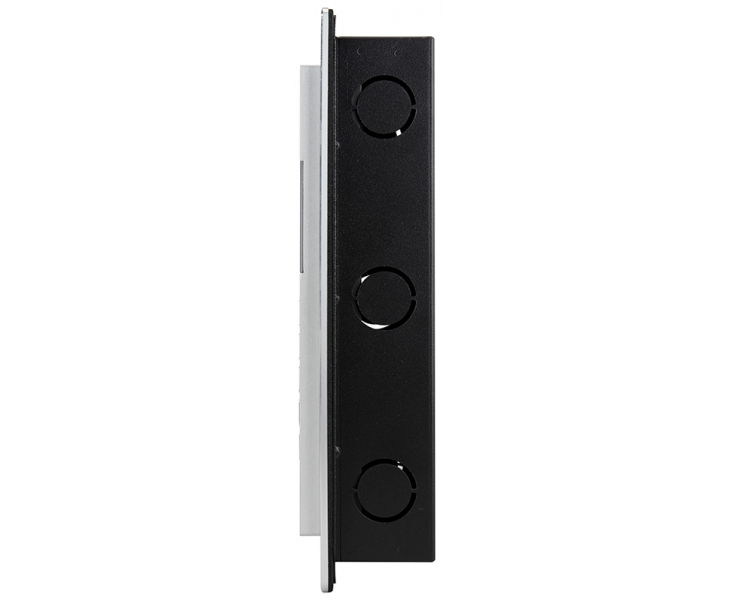

- Dimensions visible when flush mounted 226(H) x 108(W) x 13(D) mm
- Weight (Net) 1.20kg
- Weight (Gross) 1.80kg
