Akuvox - R26CF IP Door Intercom Unit with 1 Call Button (Video & Card reader) incl. Flush Mount Backbox
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

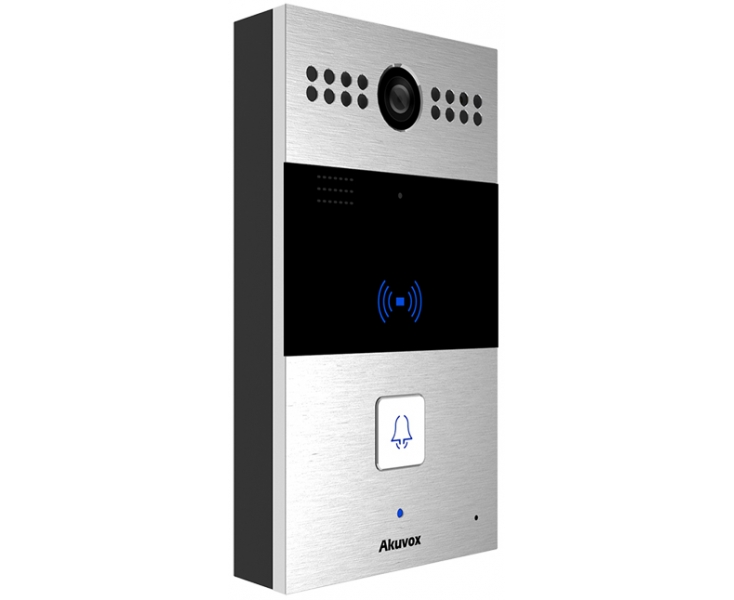

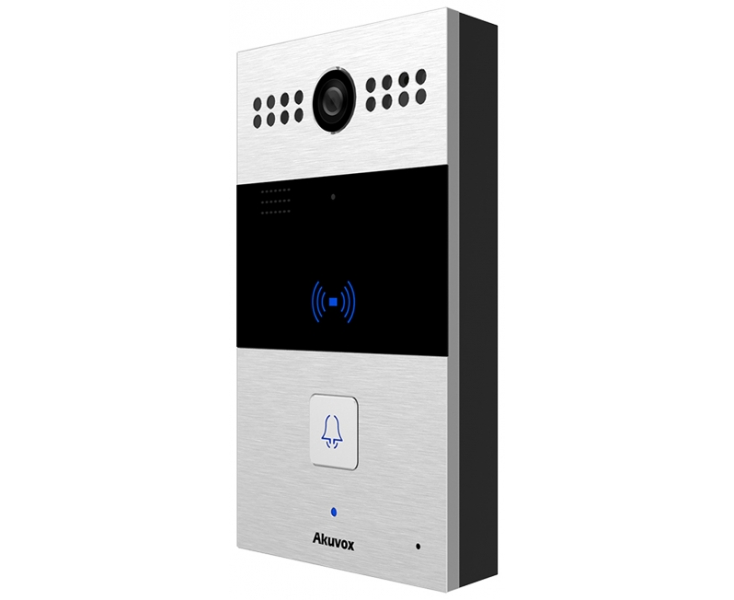

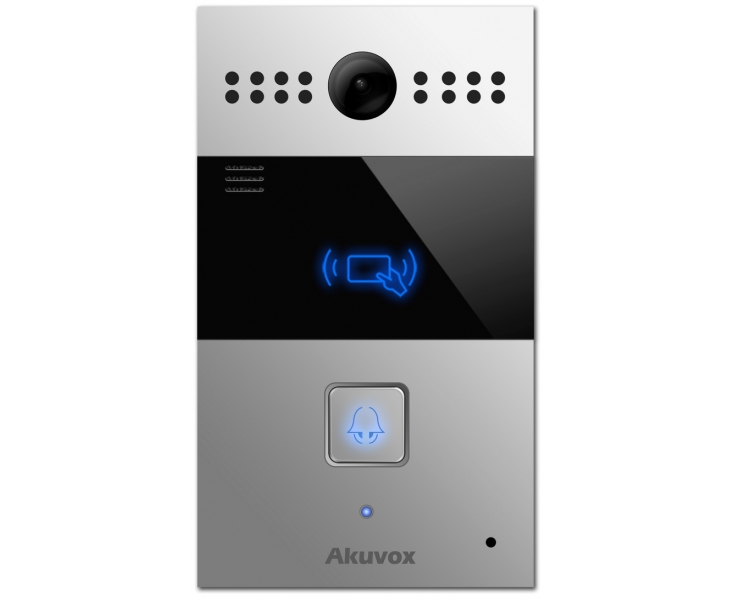

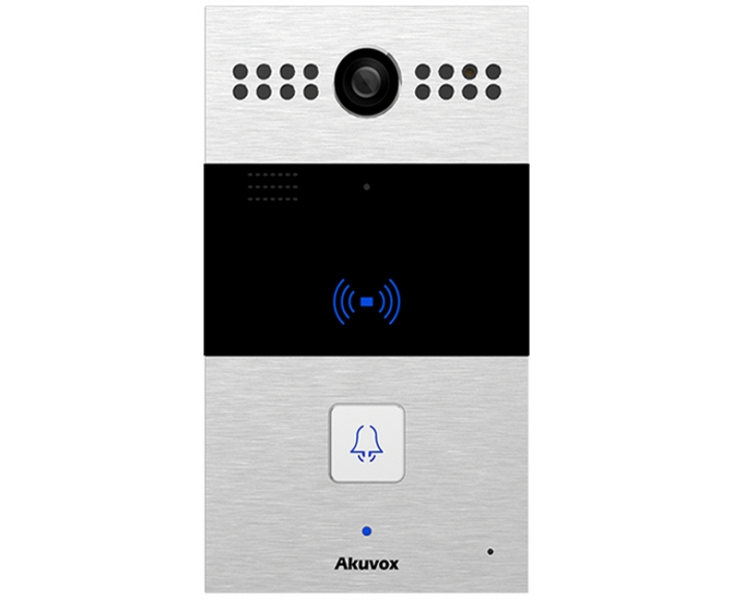

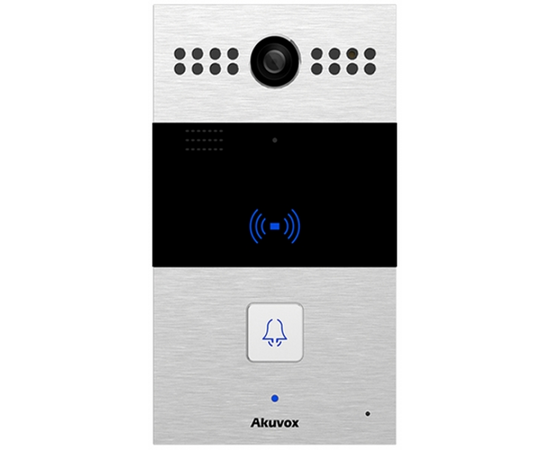

The Akuvox R26CF SIP IP Video Doorphone is a modern designed IP Door Intercom station featuring single call button, RFID card reader, colour camera and integrated microphone.
The Akuvox R26CF Intercom is an IP-connected device which uses high-grade materials and high quality construction to provide one-to-one audio and video communication between resident and visitor, together with access control to the building via connected door lock systems.
This unit also features bright blue LED icon indicators for function confirmation both in daylight and at night.
The R26CF is supplied including a flush-mount back box.
Interface Features
• 1xRJ45 10/100M Mbps Ethernet port
• Output relay: 2 relays for door opener
• Relays controlled individually by DTMF tones
• RS485 port
SIP Features
• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Line: 2 SIP accounts
Audio Features
• 1 built-in microphone with IP67 rating
• 2W speaker with IP66 rating
• Codec: G.711a, G.711μ, G.722 and G.729
• Speech quality: 7 kHz
• Echo cancellation
• Voice activity detection
• Comfort noise generator
Video Features
• Resolution: up to 720p
• Image transfer rate: 720p@30fps max.
• Camera permanently operational
• Auto-night mode with LED illumination
• Illumination: 0.1LUX min.
• Auto white balance
• Internal light sensor: image lighting during dark hours
• Codec: H.264, MPEG-4 and MJPEG
• Support live stream and RTSP
• Compliance with ONVIF
Network Features
• Static IP or DHCP
• 802.1Q VLAN
• NTP for auto time setting
Administration Features
• Auto-provisioning: FTP/TFTP/HTTP/HTTPS/PnP/DHCP
• Configuration management: web-based management or auto provisioning
• TR069
• SNMP
Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Perfect for villa intercom with door access control
• Control remote site entry over the internet
- Premium audio and video quality
- Real-time entrance monitoring
- Remote door opening
- RFID card reader: Supports 13.56MHz access card
- SIP/ONVIF/PoE/IP65
- 120° wide-angle 3MP camera with automatic lighting
- Vandal resistant all-aluminium body
- Single Call Button
- Flush Mount (Back box included)
- Enclosure rating IP65
- Camera 3M pixels, with automatic lighting
- Button 1 call button
- RF Card Reader 13.56MHz
- PoE IEEE802.3af
- Safety G-sensor for tamper alarm
- Power Consumption 12v DC input, less than 12W
- Installation Flush Mount (Back box included)
- Body Material Aluminum panel
- Dimensions 190(H) x 110(W) x 35(D) mm
- Weight (Net) 1.05kg
- Weight (Gross) 0.80kg
