Akuvox - R29C-L IP Touchscreen Door Intercom Unit with Dual Cameras with LTE Connectivity
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

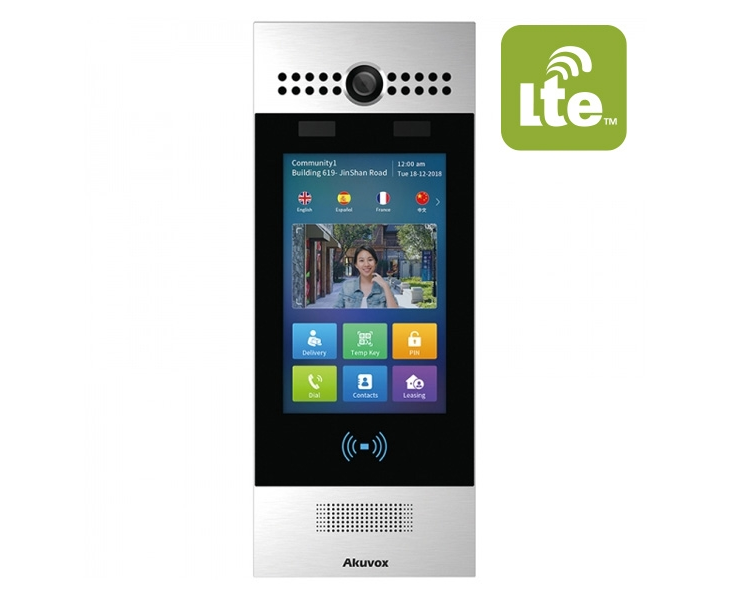

This LTE connected version of the flagship Akuvox R29C Smart Intercom uses LTE 4G wireless data connectivity to connect the device to the LAN - therefore negating the need for an Ethernet cable wired connection (only required wired power connection).
This makes the R29C-L LTE ideal for retrofit installations and gateways some distance away from the main building.
Featuring a high-impact touchscreen interface with intuitive Android-based user interface, this smart door phone device offers a wide range of authentication options for door intercom and access control systems.
The Akuvox R29C-L LTE Door Intercom is fully-equipped with Dual-cameras, NFC & Bluetooth contactless authentication, RFID Card Reader, secure infrared Face Recognition and QR Code Scanner for an all-round secure, smart intercom/access system.
The R29C-L features multiple authentication methods for ultimate security and flexibility:- Secure infrared Face Recognition
- Touchscreen Keypad
- Touchscreen Digital Phonebook
- NFC & Bluetooth contactless via Smartphone
- RFID contactless via ID card or keyfob
- QR Code (eg. for one-time access)

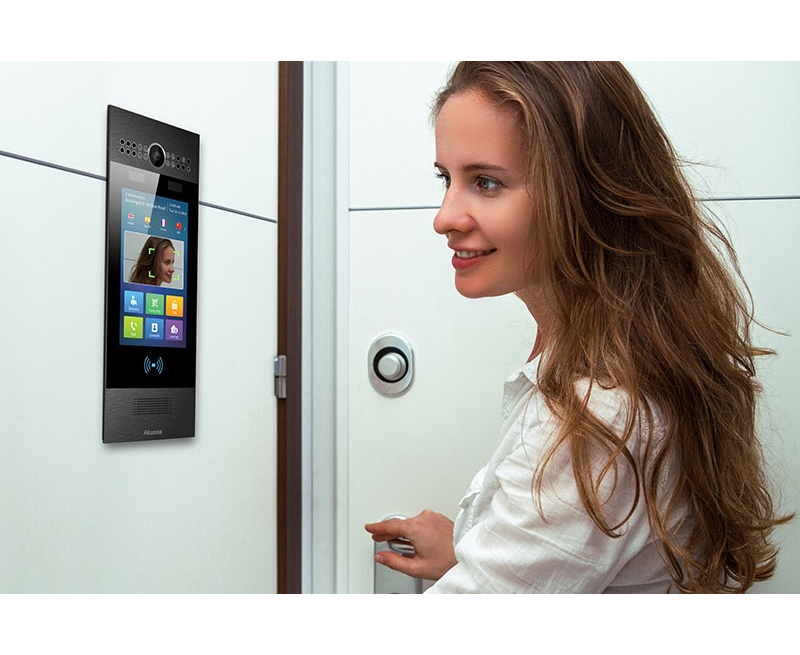

The R29C Intercom can be used for door entrance or gate systems and is IP65 rated for outdoor and high impact areas.
This advanced door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.
Door Entry Features
• Android OS for any 3rd party software or customization
• Internal DPDT relay for controlling a door opener;
• Relays controlled individually by DTMF tones or messages
• Multi-way Unlock: IC Card, and PassNumber;
• G-sensor for self-defence alarm
• Volume control for speaker
• Gain control for microphone
• Camera permanently operational, not just during calls
• White balance: auto
• Viewing angle: 3MP camera -120°; a second 5MP camera - 60° (For R29C only)
• Auto-night mode with LED illumination
• Minimum illumination: 1LUX (without LED illumination)
• Max call length setting
Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment / flat intercom with door access control
• Business information or a welcome experience for guests
DOWNLOAD Akuvox SmartPlus Intercom App for Apple
DOWNLOAD Akuvox SmartPlus Intercom App for Android

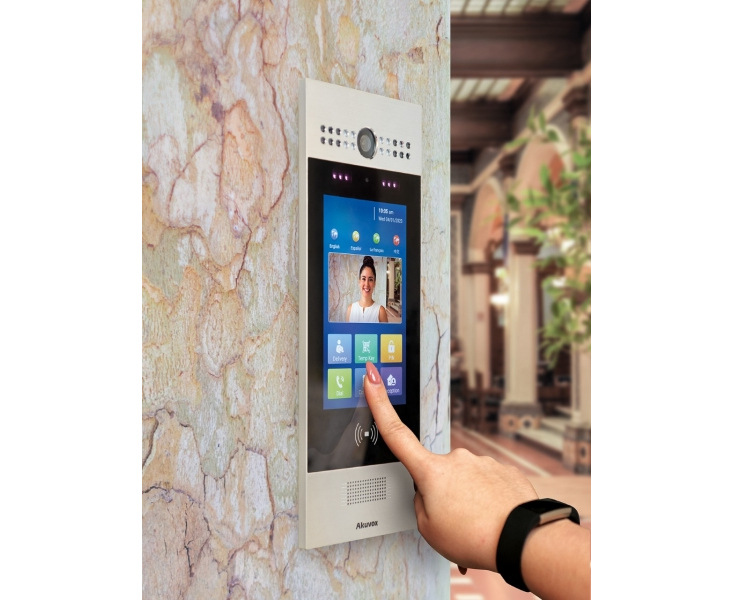

- 7-inch large capacitive touch screen (works with gloves on)

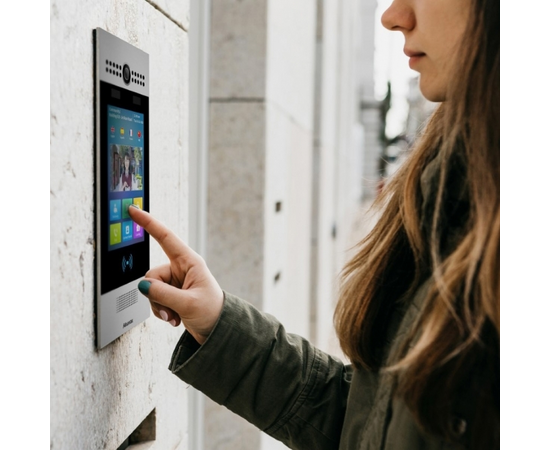

- Antispoofing face likeness detection
- Premium audio and video quality
- Real-time entrance monitoring
- Remote door opening
- Multiple access / authentication methods
- Dual cameras: one 120° wide-angle 3MP camera with IR and a second VGA 60° angle 5MP camera
- Flush or Surface mountable (back boxes sold separately)
- QR Code Scanner for 'single use' access
- Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65
- Finish - Brushed Steel
- LTE wireless 4G data connectivity (only requires wired power connection)
- Enclosure Rating IP65
- Installation Surface mount using R29XS back box; Flush mount using R29XF back box (each sold separately)
- Card reader 13.56MHz & 125kHz

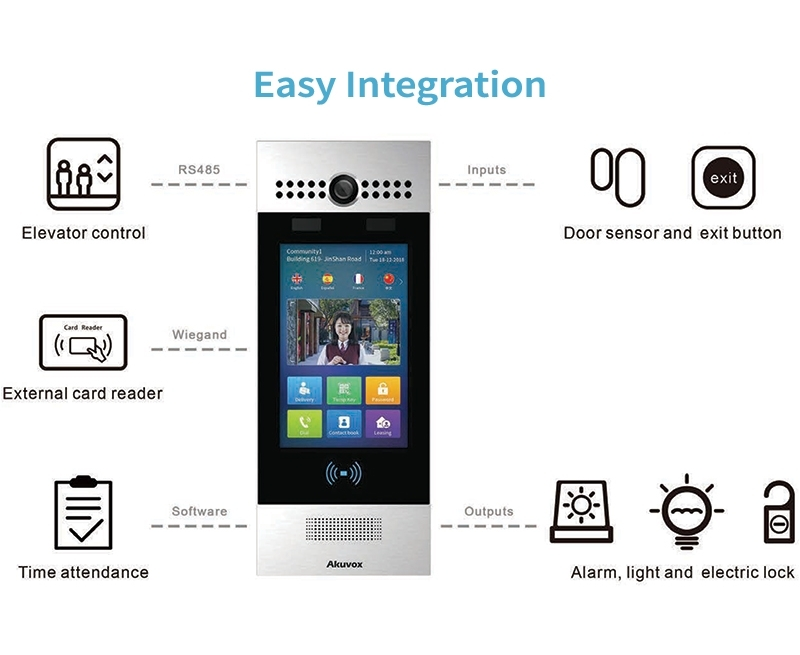

- Interface RS485 & Wiegand port
- Data connectivity LTE 4G wireless data
- Camera 3MP camera, automatic lighting; a second 5MP camera
- Screen 7 inch capacitive touch screen
- Number of Relays 3
- RAM/ROM 2/16GB
- Body material Aluminum
- Power 12v DC power supply
- Dimensions 324(H) x 130(W) x 27(D) mm
- Weight (Net) 1.50kg
- Weight (Gross) 1.70kg
