Akuvox - S562W 7" IP Indoor Touchscreen Answering Panel with WiFi - Linux
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

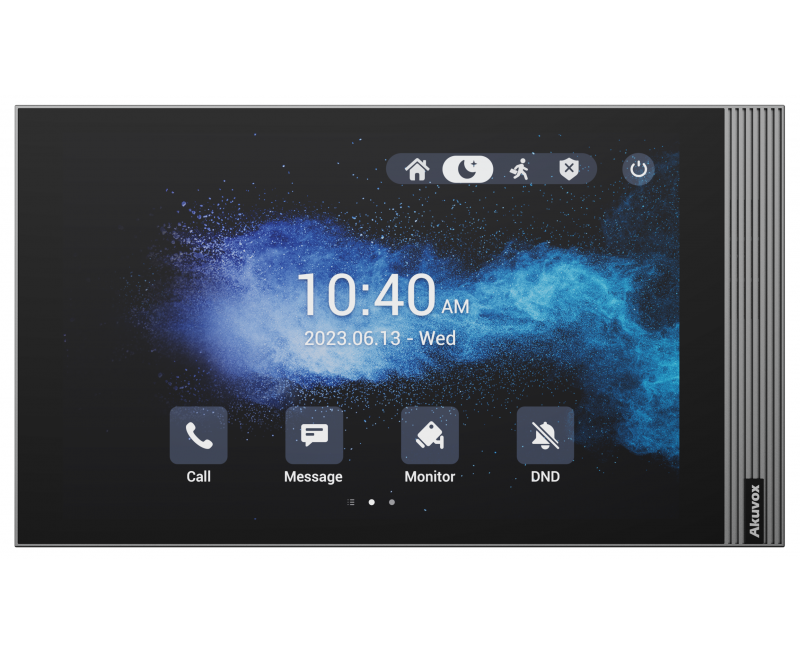

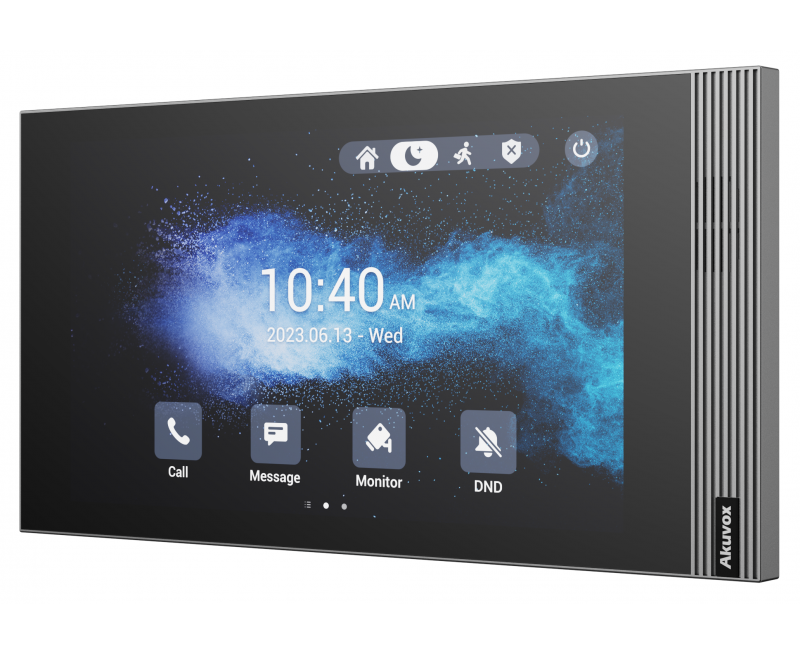

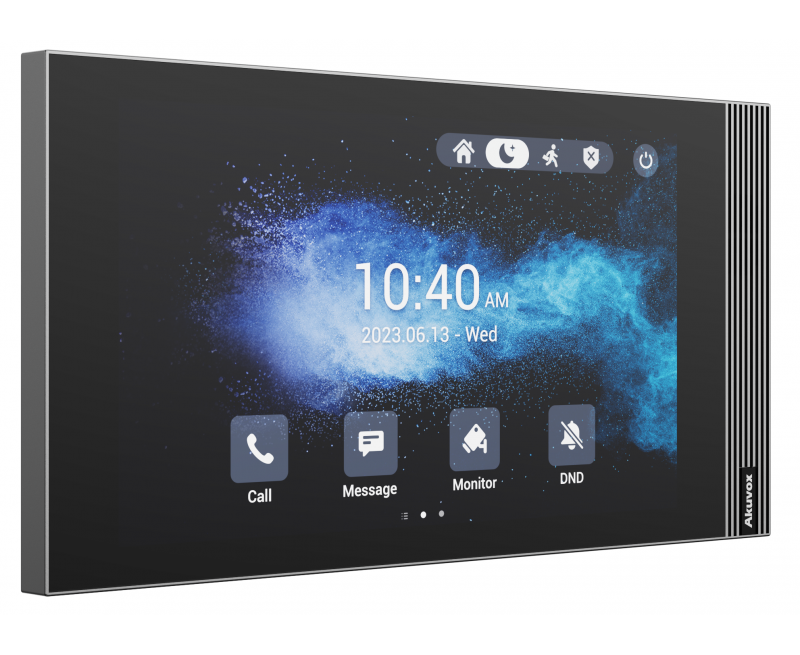

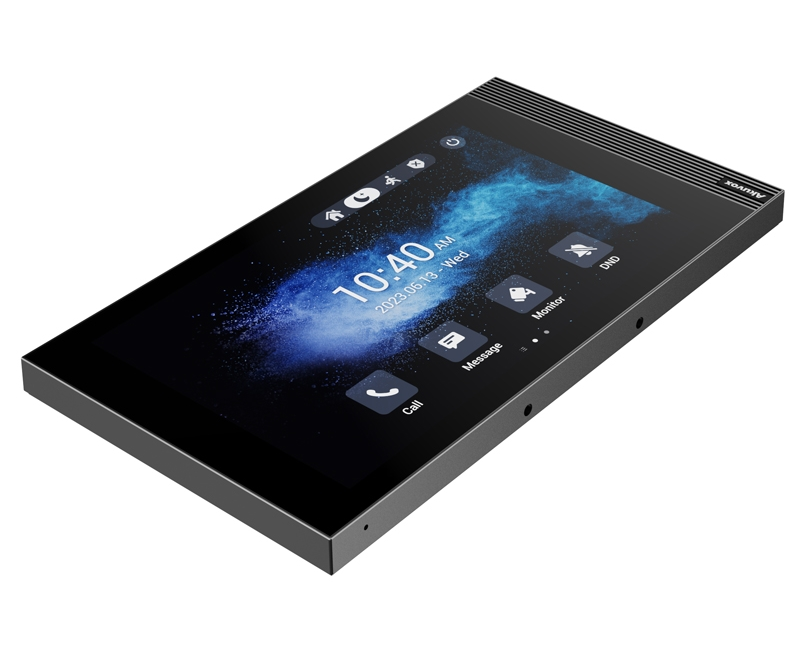

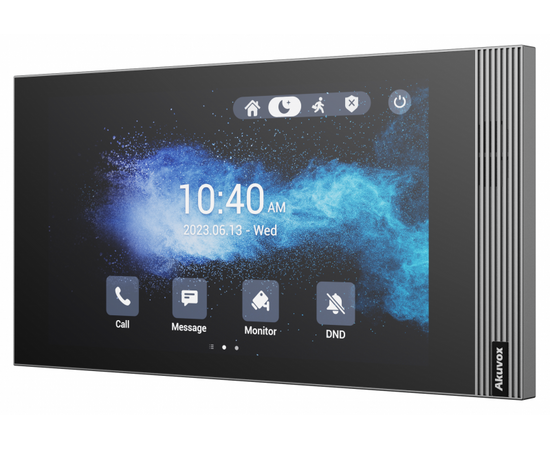

The Akuvox S562W 7'' door intercom answering panel is the latest addition to the new Akuvox S Series for door-to-door communication & access control in apartment living and shared office/co-working environment.
The Akuvox S562W runs on a Linux operating system and is equipped with wifi. Using SIP 2.0 protocol, the S562W also provides audio + video communication with door phones with minimalist design, the S562 blends well into any modern interior envirnment.
Delivering a cost-effective touch screen experience with it's space saving design 7" capacitive touch screen display, the S562W brings both convenience and security to the home.
The Akuvox S562W answering panel is ideal for integration as part of smart home living and access control systems in shared housing / multi-dwelling unit apartment buildings.
Applications:
Ideal for use in apartment complexes, shared housing, home automation systems, large villas and shared office environments.
- Ultra-clear, stylish appearance
- 7 inch capacitive touchscreen
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
- Screen display 7 Inch capacitive touch screen
- Speaker 4Ω/2W
- Ethernet Ports 2xRJ45, 10/100Mbps adaptive
- Microphone -42dB
- Installation Wall-mounted & Desktop
- Working Humidity 10~90%
- Working Temperature -10°C~+45°C
- Storage Temperature -20°C~+70°C
- WiFi IEEE802.11.b/g/n,@2.4GHz
- Protocols support IPv4, HTTP,HTTPS,FTP,SNMP, DNS,NTP,RTSP,RTP,TCP,UDP, ICMP, DHCP, ARP
- Dimensions 216(W) x 119(H) x 22(D) mm
- Weight (Net) 0.33kg
- Weight (Gross) 0.60kg
