Akuvox - S563W-WH 8" IP Indoor Touchscreen Answering Panel with WiFi & Bluetooth - White
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

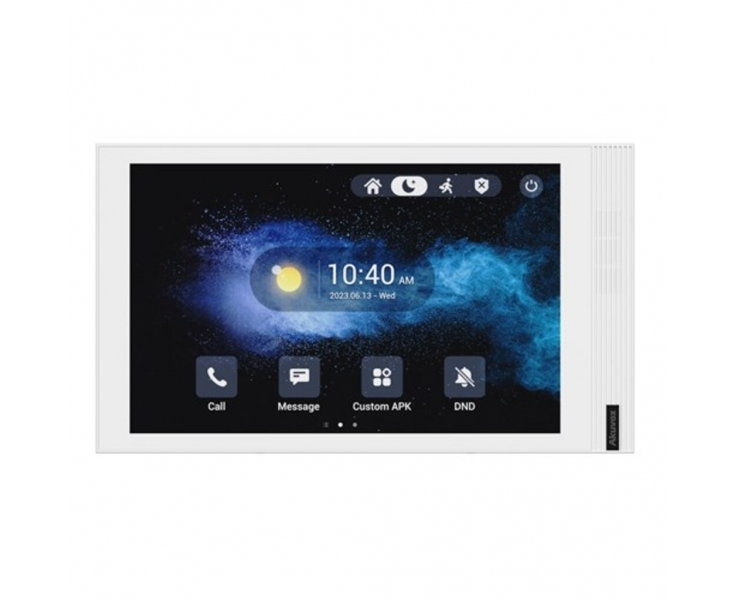

The Akuvox S563W-WH 8'' door intercom answering panel is the latest addition to the new Akuvox S Series for door-to-door communication & access control in apartment living and shared office/co-working environments.
The Akuvox S563W-WH in white is more than just a door intercom; it's a gateway to a smarter, more secure home. Designed with modern living in mind, this sleek and stylish device offers a touch of convenience and a layer of protection to your shared living space.
Powered by Android 12, the S563W seamlessly integrates with your existing smart home ecosystem. Control your lights, heating, and curtains with ease, all from the convenience of your door intercom. The built-in voice assistant takes things a step further, allowing you to answer calls and unlock doors hands-free.
Experience crystal-clear audio and video communication with visitors, thanks to the S563W's advanced technology. Enjoy high-resolution live video streaming from your door intercom and surveillance cameras, and immerse yourself in your favorite content with high-performance video streaming from apps like YouTube.
With its minimalist design and space-saving 8-inch capacitive touch screen, the S563W blends seamlessly into any modern interior. Whether you're living in an apartment building or a shared office space, this versatile device is the perfect solution for your door-to-door communication and access control needs.
Applications:
Ideal for use in apartment complexes, shared housing, home automation systems, large villas and shared office environments.
- Android 12 Power
- Wireless Convenience
- SIP 2.0 Compatibility
- Stunning Design
- Voice Assistant Integration
- High-Quality Video
- Screen display 8 Inch capacitive touch screen
- Speaker Dual speakers, 4Ω/2W
- Ethernet Ports 2xRJ45, 10/100Mbps adaptive
- Microphone -26dB
- Installation Wall-mounted & Desktop
- Working Humidity 10~90%
- Working Temperature -10°C~+45°C
- Storage Temperature -20°C~+70°C
- WiFi IEEE802.11.b/g/n,@2.4GHz
- Protocols Support IPv4, HTTP,HTTPS,FTP,SNMP, DNS,NTP,RTSP,RTP,TCP,UDP, ICMP, DHCP, ARP
- Alarm Input 8
- Bluetooth 4.2
- Bell In 1
- Relays Out 1
- RAM / ROM 2GB / 8GB
- Dimensions 217 (W) x 124 (H) x 22 (D) mm
- Weight (Net) 0.33kg
- Weight (Gross) 1.95kg
