Akuvox - S565W 10" IP Indoor Monitor (Linux) - brushed aluminium
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

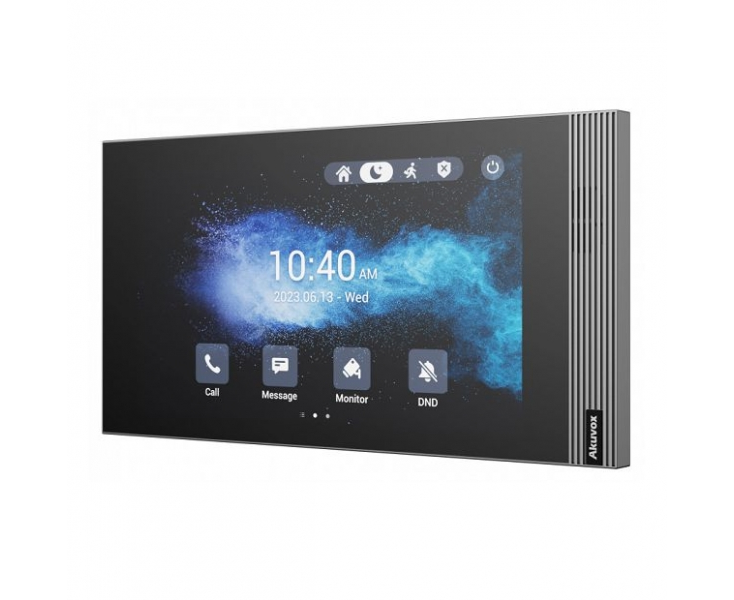

Elevate your home's security and convenience with the Akuvox S565W.

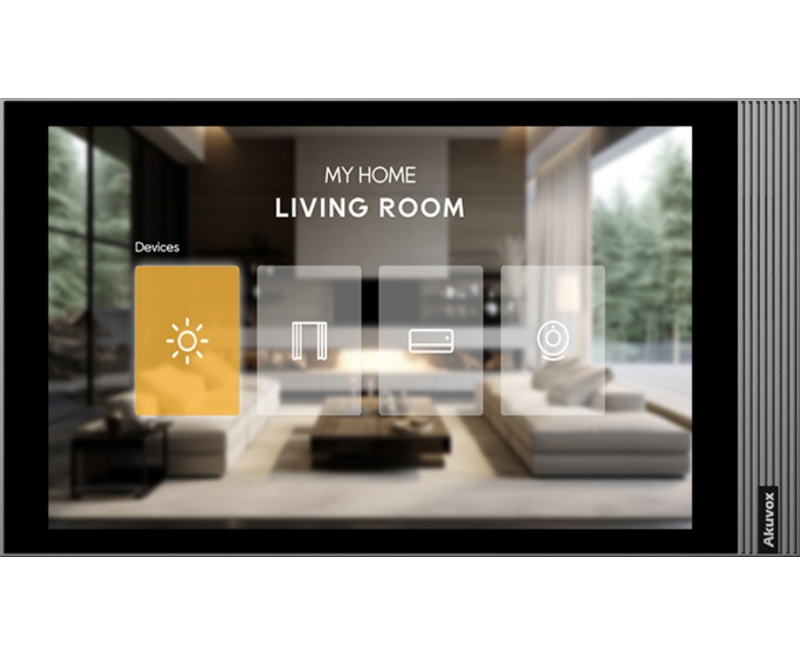

Experience the future of home communication with this sleek, multi-functional touchscreen communicator. Its intuitive Linux operating system and brilliant 10-inch display offer a seamless user interface for crystal-clear audio and video calls with your door phones.
Enjoy the freedom and flexibility of SIP 2.0 protocol, allowing you to connect with loved ones and manage your home's security from anywhere. The Akuvox S565W is more than just a door phone; it's a stylish and sophisticated addition to your home that combines cutting-edge technology with unparalleled convenience.
Applications:
Ideal for use in apartment complexes, shared housing, home automation systems, large villas and shared office environments.
Also available in White.
- Ultra-clear, stylish appearance
- 10-inch capacitive touch screen with energy saving mode

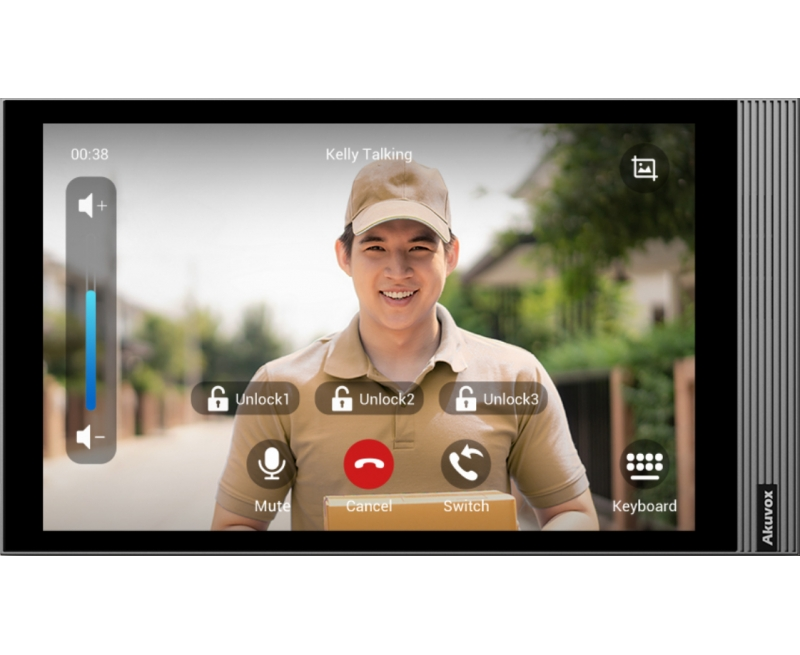

- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
- Display 10 Inch IPS LCD 1280x800 resolurion
- Screen 10 Inch capacitive touch screen
- Wi-Fi IEEE802.11 b/g/n, @2.4GHz
- RS485 port Support
- Relay out 1
- Bell in 1
- I/O 8
- Front panel Plastic
- RAM / ROM 128MB / 256MB
- Microphone Dual microphones
- Speaker One speaker
- Ethernet Ports 2xRJ45,10/100Mbps adaptive
- POE 802.3af Power-over-Ethernet
- Power 12V DC Connector
- Installation Wall-mounted & Desktop
- Dimension 278x164x22.8 mm
- Working Humidity 10~90%
- Working Temperature -10°C ~ +45°C
- Storage Temperature -20°C ~ +70°C
- Weight (Net) 0.60kg
- Weight (Gross) 0.60kg
