Akuvox - X7HD 7" IP Indoor Touchscreen Intercom Answering Panel Black
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

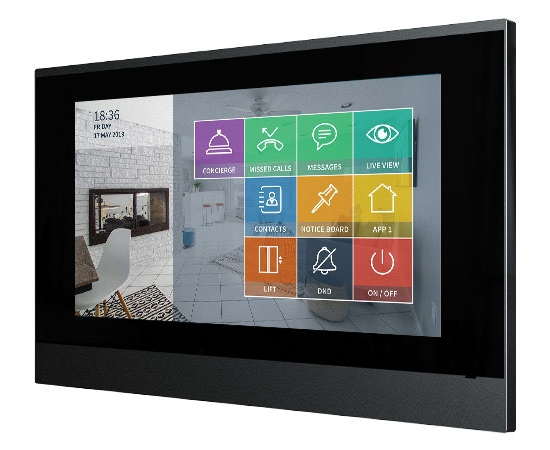

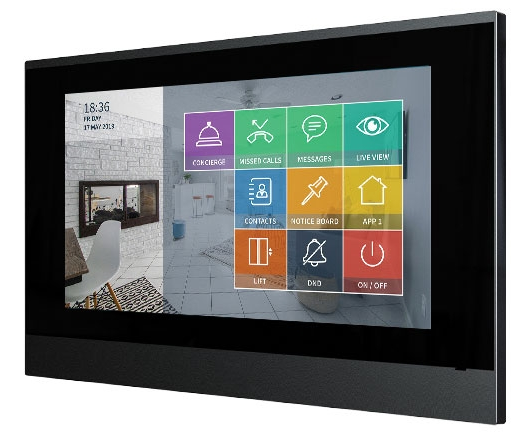

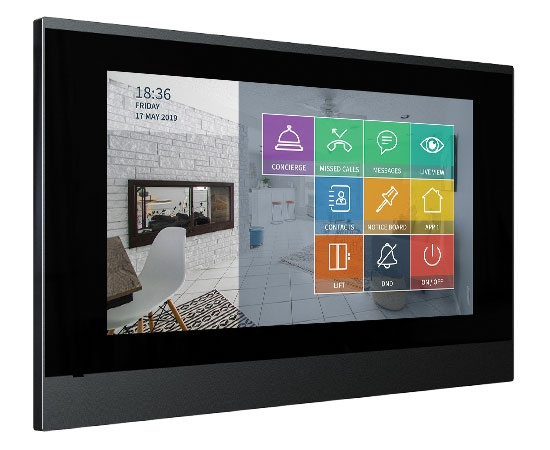

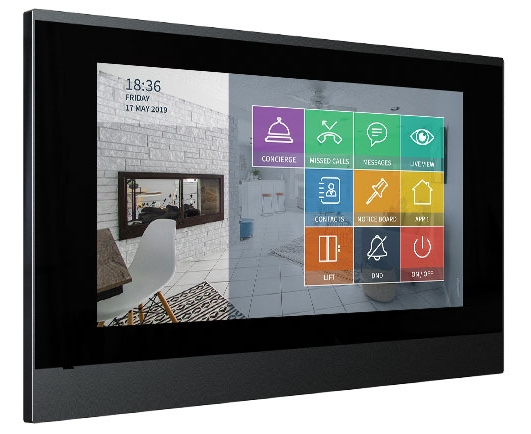

The Akuvox X7HD is a cost-effective, professional Touchscreen Door Entry Monitoring Panel with Android operating system.
Providing HD video and high quality communication for door intercom & video phone systems via SIP 2.0 protocol, the Akuvox X7HD is ideal for residential and multi-point MDU door entry systems.

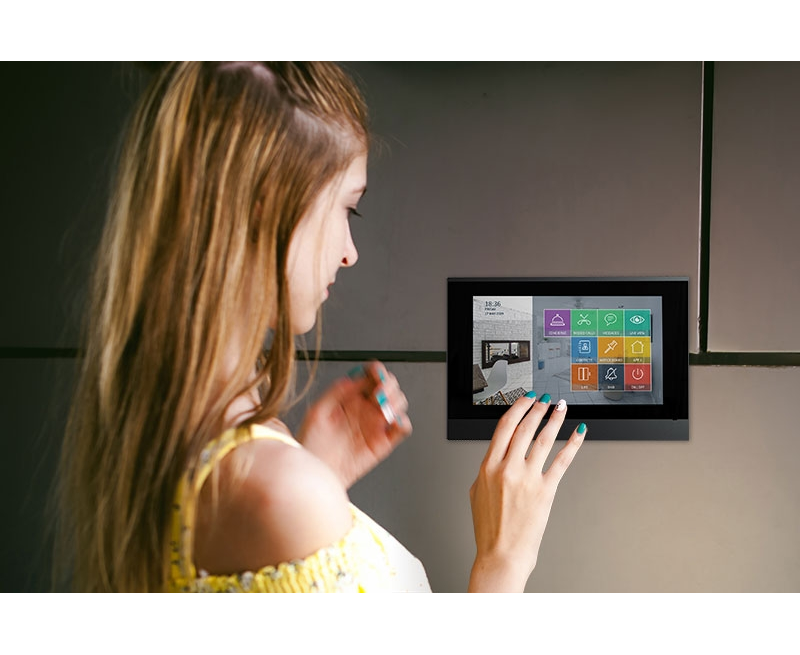

This IP-connected door answering panel provides a stylish, budget-friendly touchscreen experience in an unobtrusive, space-saving design featuring 7" HD capacitive touchscreen display.
The Akuvox X7HDW is a professional, but cost-effective indoor intercom panel for interior use and is ideal for integration as part of an Akuvox Door Entry System using the Akuvox Intercom product range.
Ideal for use in MDUs (multi-dwelling units), apartments, home automation systems and high specification office environments.
Also available as WiFi-connected version - Model No. X7HDW.
Application Scenarios
• Apartment complexes / MDUs
• Home automation systems
• Modern interiors
• Villas
- 7 inch capacitive screen
- Android operating system; simple to use, control and configure
- Remote door unlocking
- Receive video and audio from connected intercom / door access devices on the network
- Easily integrates with SIP systems
- Finished in black
- Touch Screen Display Active matrix TFT, transmissive type, Aspect Ratio: 16:9, Resolution: 1024 x 600, Brightness: 300nits (cd/m²), Contrast: 800:1, Colour Depth: 24-bit, 16M colours, Illumination: Edgelit LED
- Touch Screen 7 inch (176 mm) diagonal, Projected Capacitive
- Video Streaming Formats: H.264
- Audio Built-in microphone and speaker
- Memory RAM 1GB, Flash 8GB
- Ethernet 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
- Alarm Out: 1x Alarm output relay (Dry Contact), In: 8x Alarm input terminals
- Bell In: 1x Bell input terminal
- Operating Temperature -10° to 45°C
- Humidity 10% to 90% (non-condensing)
- Dimensions 132(H) x 200(W) x 17.5(D) mm
- Weight (Net) 0.90kg
- Weight (Gross) 1.00kg
