Akuvox - X912S Vandal Resistant SIP Video Intercom, Digital Keypad, Face Recognition, Bluetooth, RFID & QR Code
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

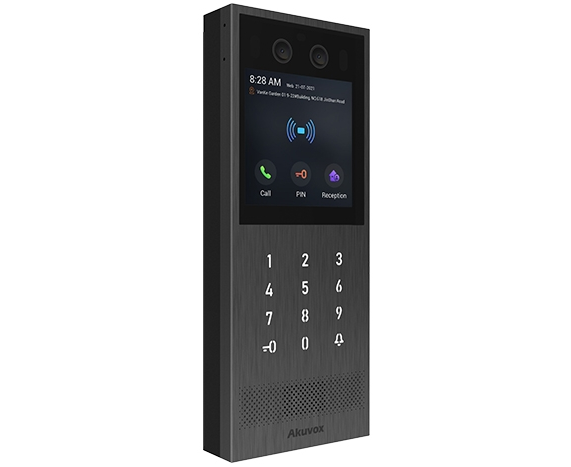

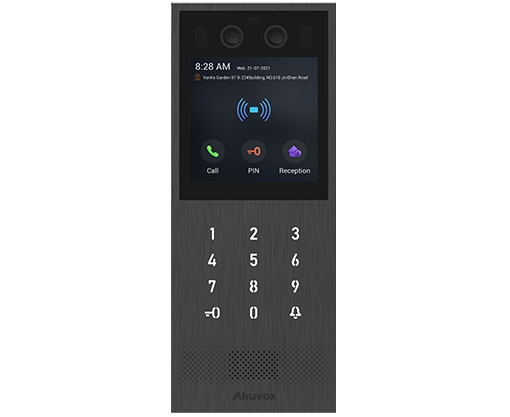

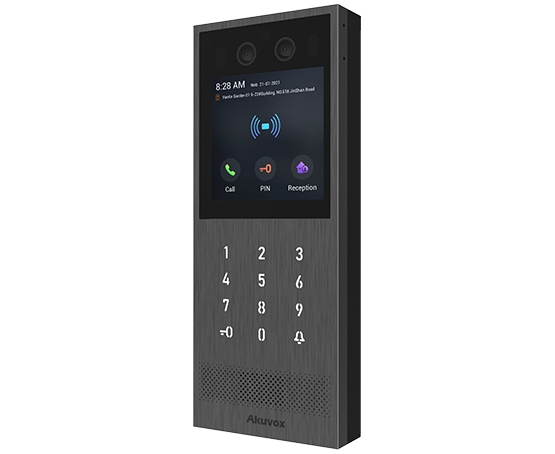

The Akuvox X912S is a vandal-resistant, advanced IP Door Intercom with multiple credential authentication options - ideal for apartment buildings, MDUs, shared office spaces and gated communities.
Featuring IK10 impact rating and IP65 ingress protection rating, the X912S IP Intercom is ideal for outdoor and public access areas such as main entrances, gate & barrier access.
The Akuvox X912S Door Intercom features a range of touchscreen and mobile access credentials including secure face recognition, RFiD, BLE and QR Code contactless authentication and PIN Code access for an all-round secure, smart intercom/access system.
The X912S features multiple authentication methods for ultimate security and flexibility:
- Secure infrared Face Recognition
- Numeric Keypad
- Touchscreen Digital Phonebook
- RFiD & Bluetooth (BLE) contactless via Smartphone
- RFID contactless via ID card or keyfob
- QR Code (eg. for one-time access)
This advanced door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.
Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment / flat intercom with door access control
Akuvox X912S is featured in Primary Art Gallery Case Study CLICK HERE to read the story in full.

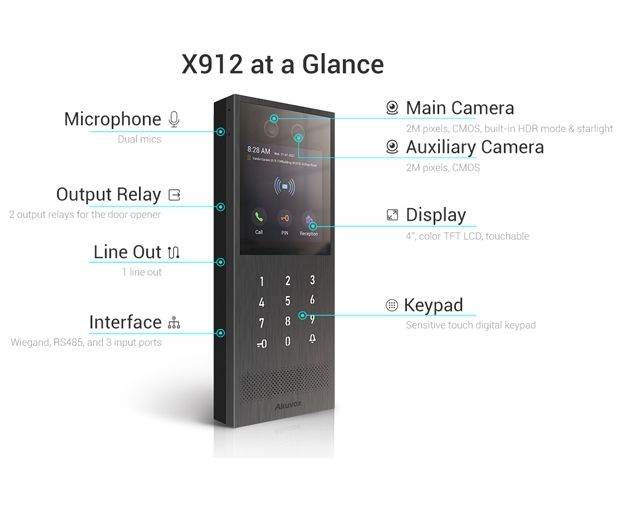

- IK rated vandal resistant housing
- Antispoofing face likeness detection
- Multiple access / authentication methods: Face recognition, BLE, QR Code, RFID PIN Code
- Face verification accuracy >99% ; face comparison speed < 0 6 s per person; false recognition rate
- Supports SIP to provide reliable two way voice & one way video communication
- Camera features built in HDR mode for high light contrast locations
- Complies with ONVIF standard for easy integration with any network surveillance system
- QR Code Scanner for temporary access permissions
- 4 Inch, colour TFT LCD touchscreen display
- Touch sensitive numeric keypad
- IK10 high impact protection rating
- Finish - Black stainless steel

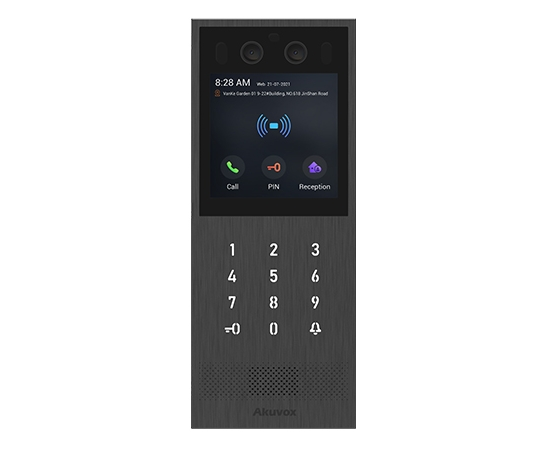

Description X912S
- Enclosure Protection Rating IP65 / IK10
- Installation Wall mount
- RFID Card Reader 13.56MHz & 125kHz
- Access Authentication Methods Face Recognition, RFID, BLE, QR Code, PIN Code
- Operating System Linux
- Camera 2M pixels with Starlight low-light technology
- Display Screen 4 inch LCD touchscreen
- Relays Out 2
- Inputs 3
- Front Panel Material 316 grade stainless steel
- Gesture Detection Sensor Yes
- Wiegand Support Yes
- RS485 Port Yes
- Power 12-24v DC / PoE
- Dimensions 94(W) x 234(H) x 34(D)mm
- Weight (Net) 1.10kg
- Weight (Gross) 2.00kg
