Akuvox - X915S-HIDICLASS IP Touchscreen Smart Door Intercom Unit with Face Recognition, QR, RFID, HID iClass and BLE
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

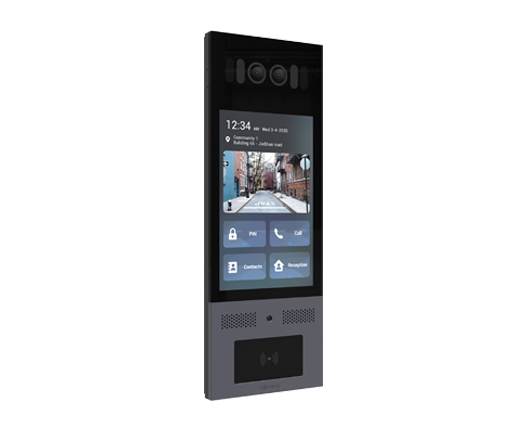

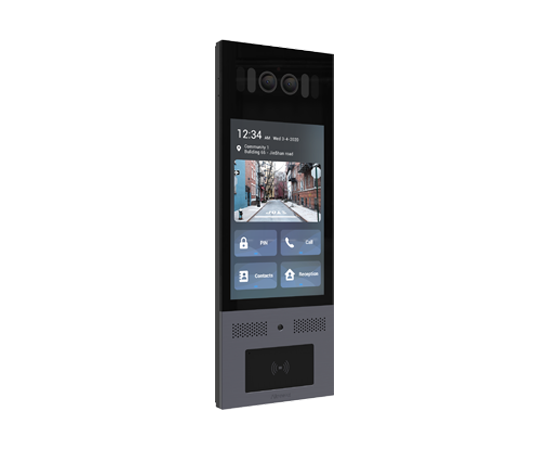

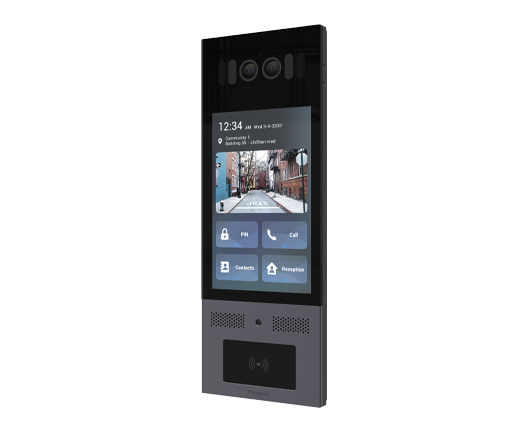

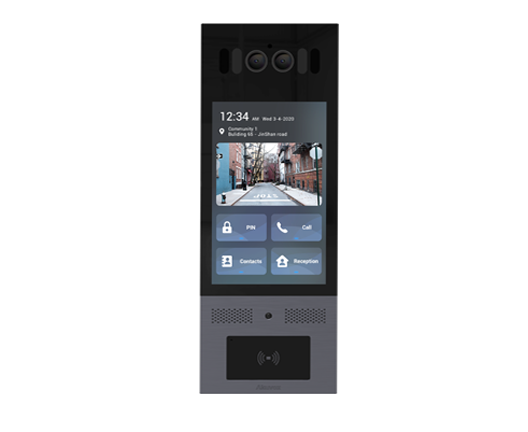

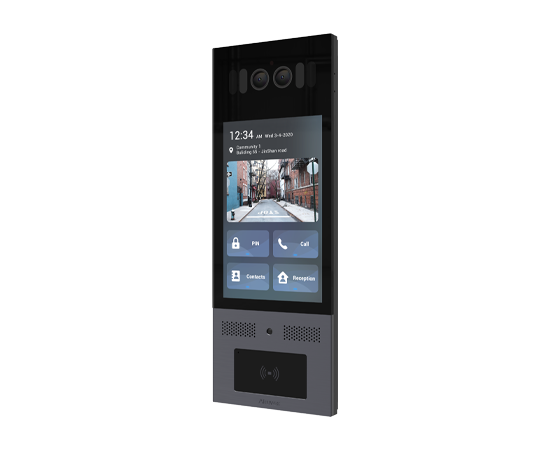

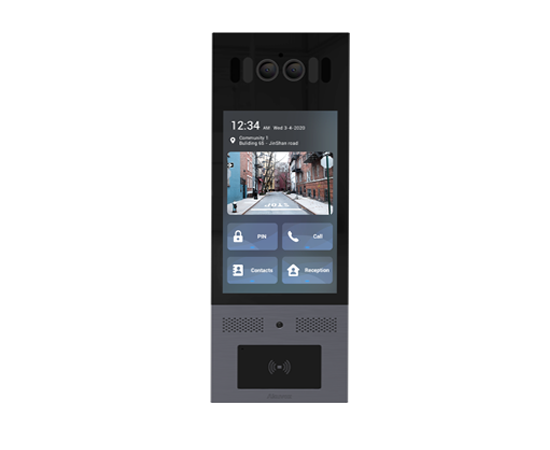

The Akuvox X915S -HIDICLASS Touchscreen Door Intercom is an advanced, customisable smart IP door intercom device for apartment buildings, MDUs, office buildings and gated communities.
Featuring a high-impact 8-inch touchscreen interface with intuitive Android 9.0-based user interface, this smart door phone device offers a wide range of credential authentication options for door intercom and access control systems.
The Akuvox X915S Door Intercom features a range of touchscreen and mobile access credentials including secure face recognition, RFiD, BLE and QR Code contactless authentication and PIN Code access for an all-round secure, smart intercom/access system.
The X915S features multiple authentication methods for ultimate security and flexibility:- Secure infrared Face Recognition
- Touchscreen Keypad
- Touchscreen Digital Phonebook
- RFiD & Bluetooth (BLE) contactless via Smartphone
- RFID contactless via ID card or keyfob
- HID iClass Compatible
- QR Code (eg. for one-time access)
Investing in HID iCLASS technology offers a higher level of security and peace of mind compared to standard MIFARE or MIFARE Classic. By using advanced encryption methods and secure data transmission, HID iCLASS significantly reduces the risk of unauthorised cloning or tampering. This robust protection not only helps safeguard your building’s assets but also enhances trust and confidence among staff, visitors and stakeholders.
Another key advantage lies in the capacity of HID iCLASS cards. The 4K space ensures greater flexibility for storing encryption keys and other secure data, allowing for a comprehensive security strategy that can evolve alongside future requirements. While there is a modest increase in cost due to this extra memory, the investment is quickly justified by the long-term benefits of heightened protection and scalability.
By choosing HID iCLASS, you demonstrate a commitment to best-practice security standards and a forward-thinking approach to access control. This not only helps deter potential threats but also reinforces the perception of a well-protected and professionally managed environment. In short, HID iCLASS delivers superior encryption, more comprehensive data capacity and enduring value for those serious about the security of their premises.
The X915S Intercom can be used for door entrance or gate systems and is IP65 & IK10 rated for outdoor and high impact locations.
This advanced door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.
Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment / flat intercom with door access control
• Business information or a welcome experience for guests
DOWNLOAD Akuvox SmartPlus Intercom App for Apple
DOWNLOAD Akuvox SmartPlus Intercom App for Android
- X915XS Surface-mount Back Box
- X915XF Flush-mount Back Box
- Camera features built in HDR mode for high light contrast locations
- Antispoofing face likeness detection
- Multiple access / authentication methods: Face recognition, BLE, QR Code, RFID PIN Code
- Main camera features built-in HDR for high-light contrast locations
- Face verification accuracy >99% ; face comparison speed < 0 6 s per person; false recognition rate
- Supports SIP to provide reliable two way voice & one way video communication
- Complies with ONVIF standard for easy integration with any network surveillance system
- QR Code Scanner for 'single use' access
- Flush or Surface mountable (back boxes sold separately)
- IK10 high impact protection rating
- Finish - Black stainless steel
- Enclosure Protection Rating IP65 / IK10
- Installation X915XS Surface Mount or X915XF Flush Mount (back boxes sold separately)
- RFID Card Reader 13.56MHz & 125kHz
- Access Authentication Methods Face Recognition, RFID, BLE, QR Code, PIN Code, HID iClass
- Operating system Android 9.0
- Camera 2M pixels with Starlight low-light technology
- Display Screen 8 inch IPS LCD touchscreen
- Number of Relays 3
- RAM/ROM 2GB / 16GB
- Front Panel Material 316 grade stainless steel
- Wiegand Support Yes
- RS485 Port Yes
- HID Support iClass
- Power 12-24v DC / PoE+
- Dimensions: surface mounted - overall incl. X915XS back box 348(H) x 130(W) x 42(D) mm
- Dimensions: flush mounted - overall incl. X915XF back box 348(H) x 130(W) x 54(D) mm
- Dimensions: flush backbox cutout 334(H) x 120(W) x 40(D) mm
- Dimensions: flush visible when mounted 348(H) x 134(W) x 14(D) mm
- Weight (Net) 1.30kg
- Weight (Gross) 1.50kg
