Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

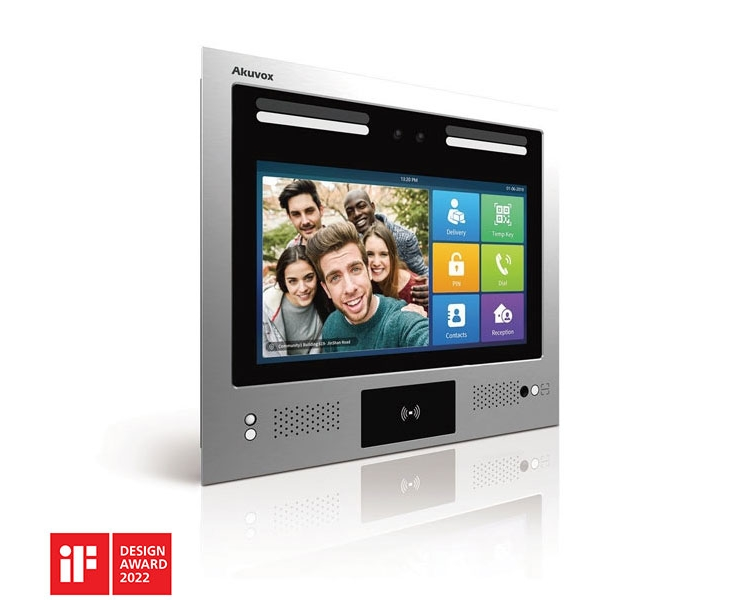

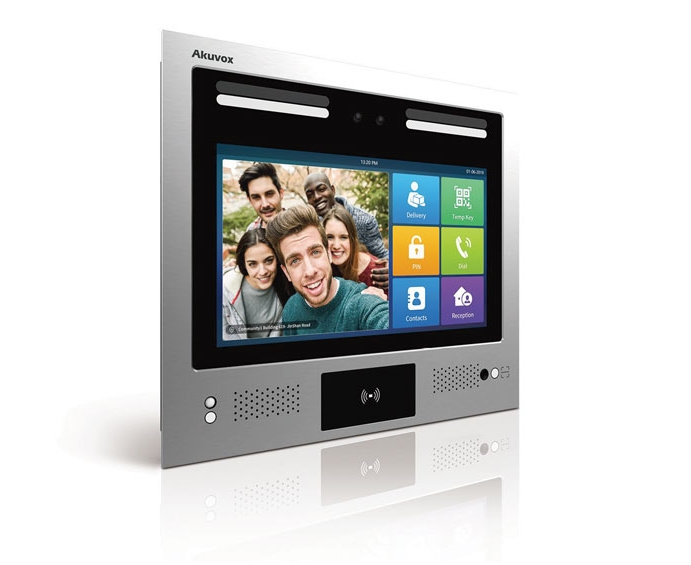

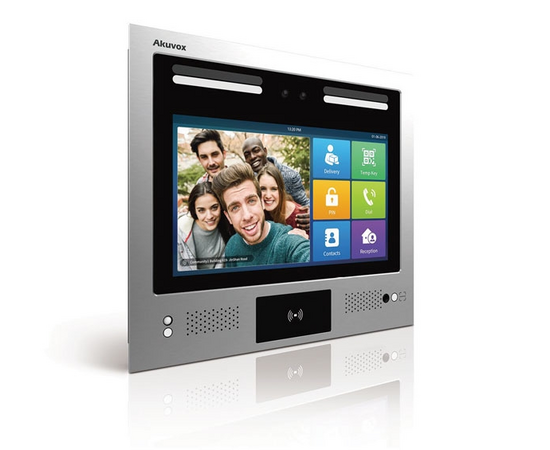

The Akuvox X916S SIP Touchscreen Intercom is a flagship door entry communication device, designed to impress and hold pride of place in high-profile, stylish multi-dwelling residential and commercial main entrances and lobbies.
Featuring a 13.3" full-colour touchscreen user interface, the Akuvox X916S offers visitors, residents and staff a user-friendly communication environment featuring a wide range of secure authentication options for secure door entry and access control.
The Akuvox X916S is fully-equipped with 3 cameras (including the latest 'starlight' camera technology for ultra low-light performance), secure face recognition scanning, NFC & RFID contactless, as well as touchscreen digital phonebook, keypad and concierge buttons.
Communicate/Door Entry from your smartphone
This stylish, eye-catching Door Intercom Panel easily connects to residents' smart phones via the Akuvox Smartplus App.
This secure yet simple smartphone integration allows users to communicate via audio & video with visitors (either from your apartment/office or remotely while away), open and manage doors from your smartphone and send temporary guest pin access codes to visitors.
Effectively functioning as a 'virtual concierge/reception' the X916S IP Intercom uses the latest Android 9.0 platform, allowing for integration with a whole host of third-party control applications and automation technologies.

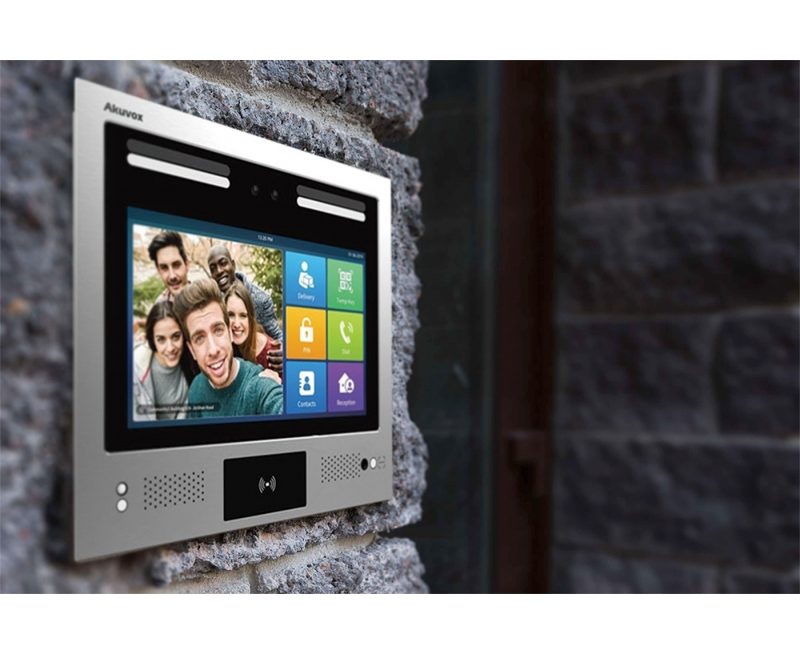

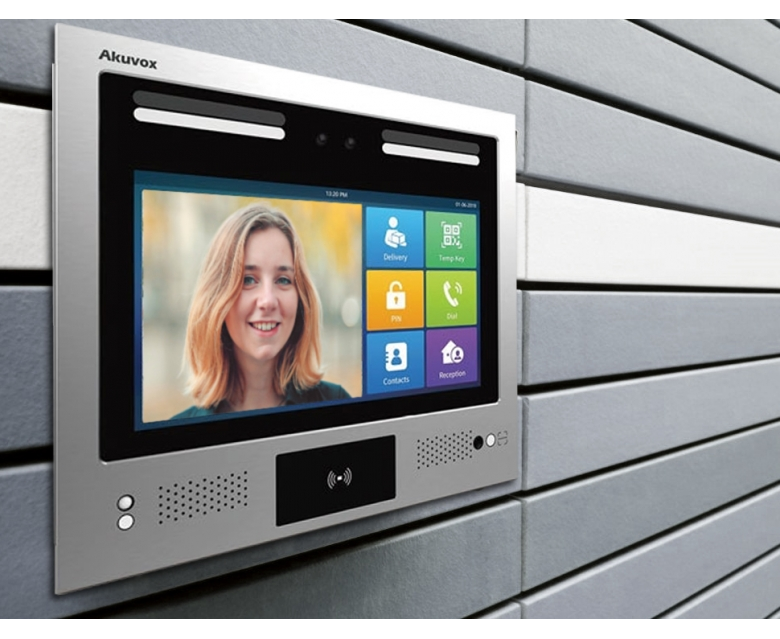

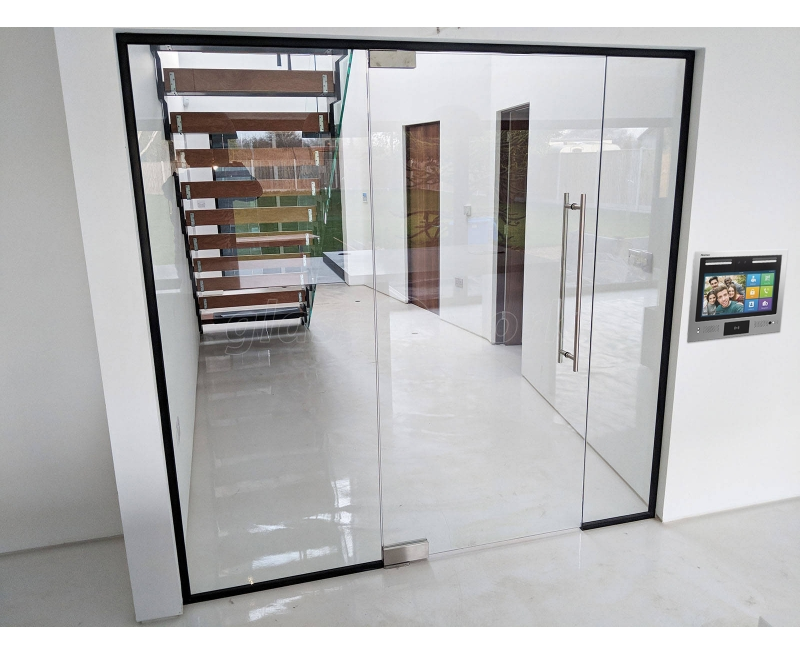

The X916S Intercom can be used for door entrance or gate systems and is IP65/IK06 rated for outdoor and high impact areas.
This door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.
Interface:
2xRJ45 10 / 100M Mbps Ethernet port
Relays: 4x In / 4x Out
Independently controlled relays using DTMF tones
RS485 port
Wiegard
HDMI
SIP features:
SIP v1 (RFC2543)
SIP V2 (RFC3261)
2 SIP accounts
Audio Features:
2x Built-in microphone with IP67 protection
2x loudspeaker with IP66 protection
G.711a, G.711μ, G.722 and G.729 codecs
7 kHz HD audio quality
Echo cancellation
Voice activity detection
Comfort noise generator
Video Features:
Display angle: 115º (H) x 63º (V)
Full HD 1080p video resolution
Frame rate max 1080p @ 30fps
Camera permanently on
HDMI output for 'mirrored' display on additional screen
Automatic night mode with LED lighting and ultra-low light starlight technology camera
Lighting: min. 0.1 LUX
Automatic white balance
Integrated light sensor
Codec H.263 and H.264
RTSP support
ONVIF support
DOWNLOAD Akuvox SmartPlus Intercom App for Apple
DOWNLOAD Akuvox SmartPlus Intercom App for Android
- 13.3 inch touch capacitive IPS LCD
- 3x Cameras (Main - 2MP, Starlight, HDR | Auxiliary - 2MP | QR Code Reader)
- Power PoE or 12v DC
- G-sensor to trigger an alarm in the event of tampering
- Ingress Protection rating: IP65
- Impact Protection rating: IK06
- Integrated reader
- Face recognition
- Dual microphone for noise reduction
- RTSP support
- ONVIF support
- RFID card reader 13.56 MHz and 125 kHz
- Numeric Keypad Numeric code - PIN
- Face recognition 32 recognition points
- Video resolution Full HD 1080p
- Camera display angle 115º (H) x 63º (V)
- Protection Ratings IP65/IK06
- Screen 13.3 inch capacitive touchscreen
- Front panel material Stainless steel
- Operating System Android 9.0
- Power Supply PoE or 12v DC
- Dimensions 340(H) x 384(W) x 45(D) mm
- Depth from Wall when flush mounted 3mm
- Weight (Net) 1.15kg
- Weight (Gross) 1.50kg
