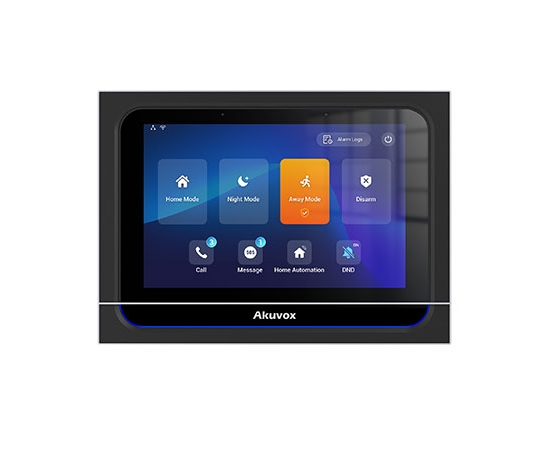

Akuvox - X933H Premium 7 inch Touchscreen Door Intercom Answering Panel Zigbee Home Automation
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

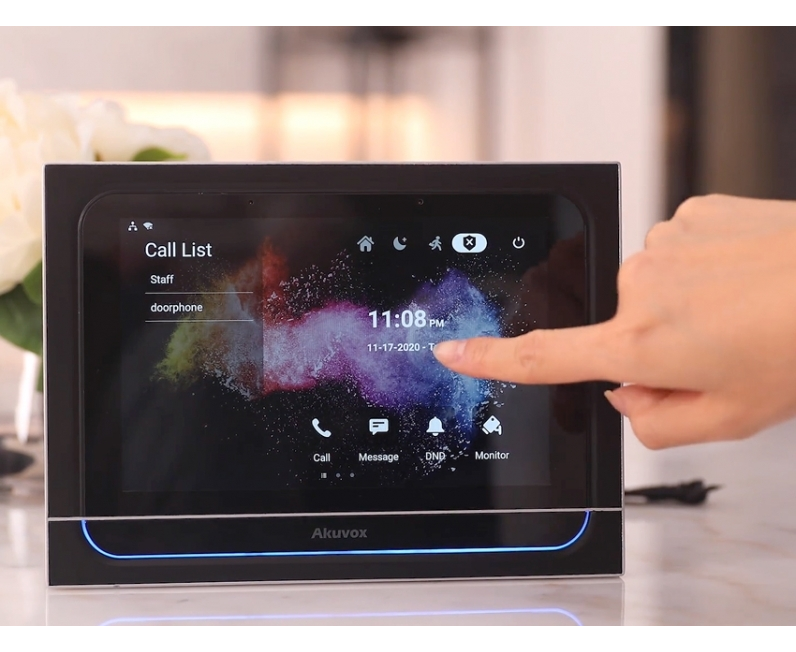

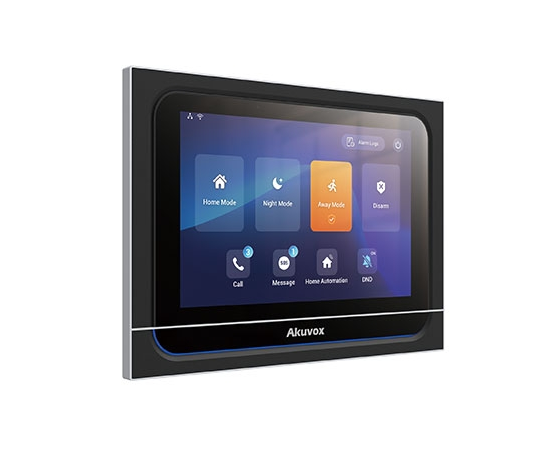

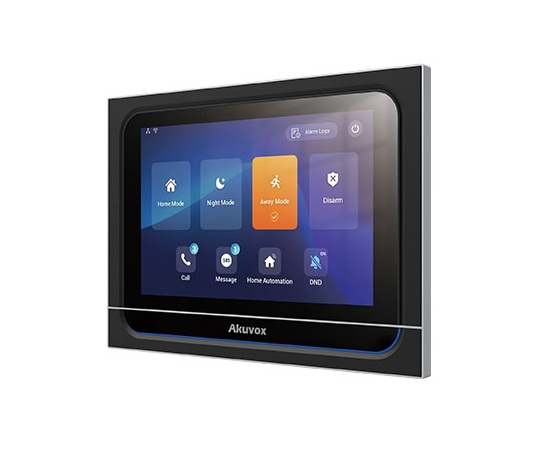

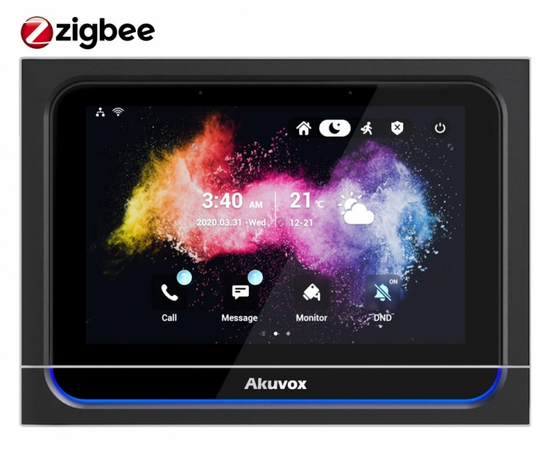

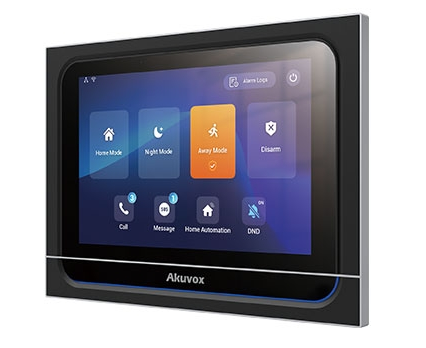

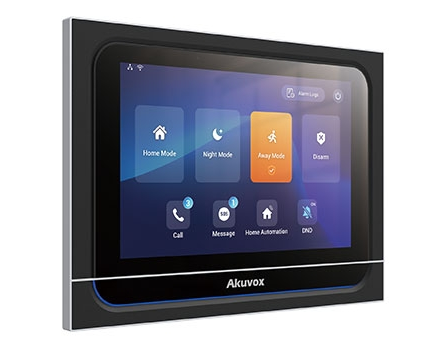

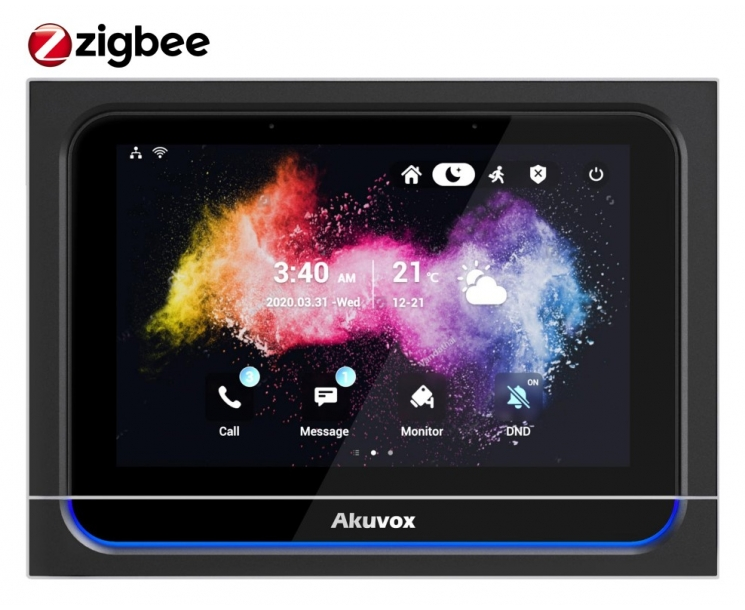

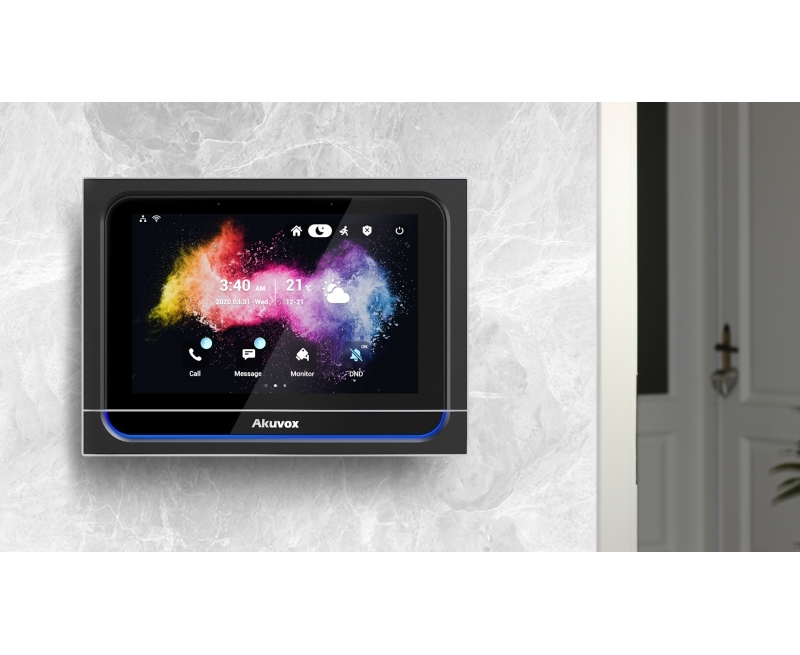

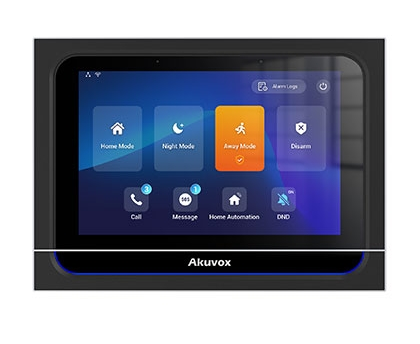

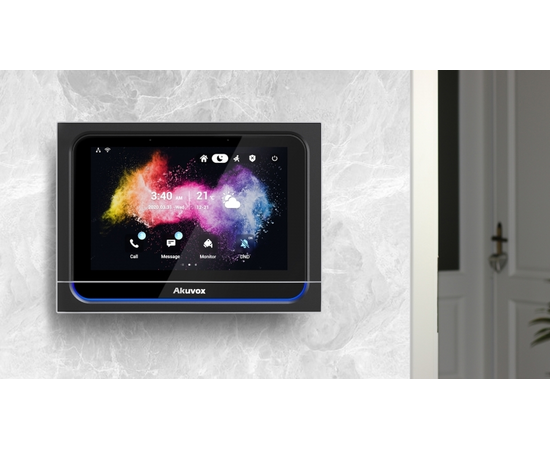

The Akuvox X933H Indoor Intercom Answering Panel is a premium door access / communication intercom featuring 7" full-colour touchscreen. This X933H model features Zigbee connectivity for integration with a wide range of wireless connected smarthome and smart security devices.
This multi-functional touchscreen door answering panel uses the high performance Android 9.0 operating system and is ideal for apartment / MDU intercom systems and integration with the Akuvox range of professional door intercom devices.
The X933H can be used as a smart home center and provides HD audio and video communication via SIP 2.0 protocol and can work with Zigbee devices via Zigbee 3.0.

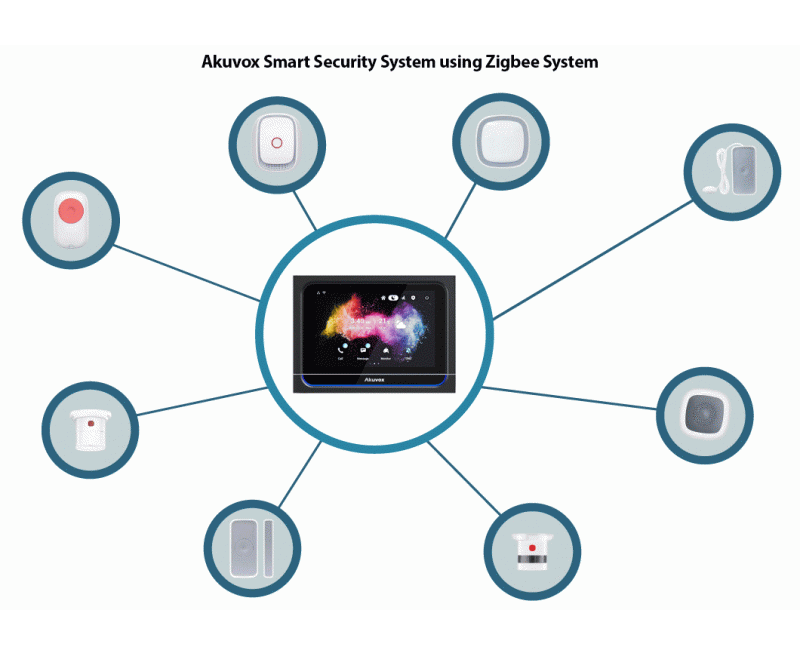

Akuvox offers a range of compatible devices and sensors including:- Carbon Monoxide Sensor
- Emergency Button
- Water Leakage Sensor
- Methane Gas Detector
- Door / Window Sensor
- Motion Sensor
- Smoke Sensor
- Temperature and Humidity Sensor
Offering much more than just an intercom answering panel, the X933H uses a newly-designed, user-friendly interface featuring numerous pre-installed functions and applications and can be fully-integrated with other third-party, IP smart home devices (such as lighting, heating, blinds, etc) and automation platforms such as Control4, Crestron and Savant.
Ideal for use in apartments, multi-dwelling units (MDUs), large villas / home complexes and office environments.
Finished with black frame and blue LED status bar.
- Premium door intercom panel with smart automation sensor wireless connectivity
- Android 9.0 system
- 7 inch capacitive touch screen
- Also functions as a smart home wireless hub with Zigbee 3.0
- HD audio/video communication with other units in the network
- Powered by PoE or external source
- Support US or European electrical wall box mounting
- LCD Size 7 inch (Diagonal)
- Display Resolution 1280 x 800
- Display 7 Inch IPS LCD
- RAM/ROM 2GB / 8GB
- Microphone Dual microphones, -26dB
- Speaker Dual speakers, 4Ω/ 3W
- Mesh Network ZigBee 3.0
- WiFi IEEE802.11 b/g/n, @2.4GHz
- Relays out 2
- Bell in 1
- Ethernet Ports 1xRJ45, 10/100Mbps adaptive
- Bluetooth Bluetooth 4.2
- Colour Black
- Installation Wall mount or table top (Stand sold separately)
- Operating Temperature -10° to 45°C
- Dimensions 205(W) x 148(H) x 27.5(D) mm
- Weight (Net) 0.90kg
- Weight (Gross) 1.10kg
