Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

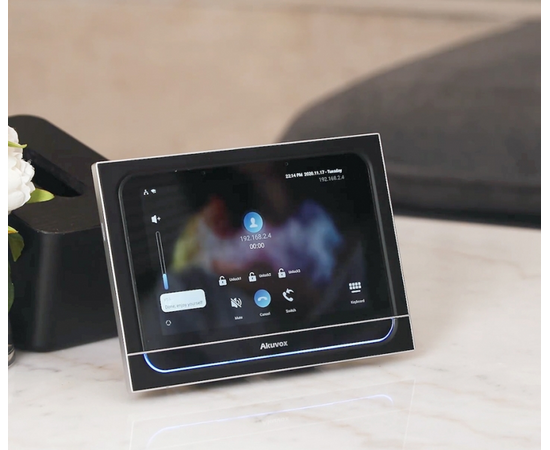

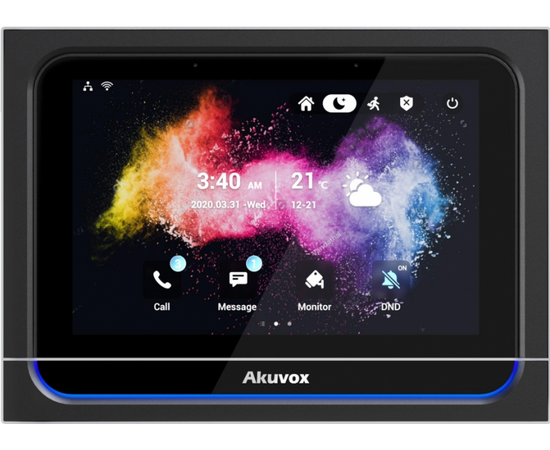

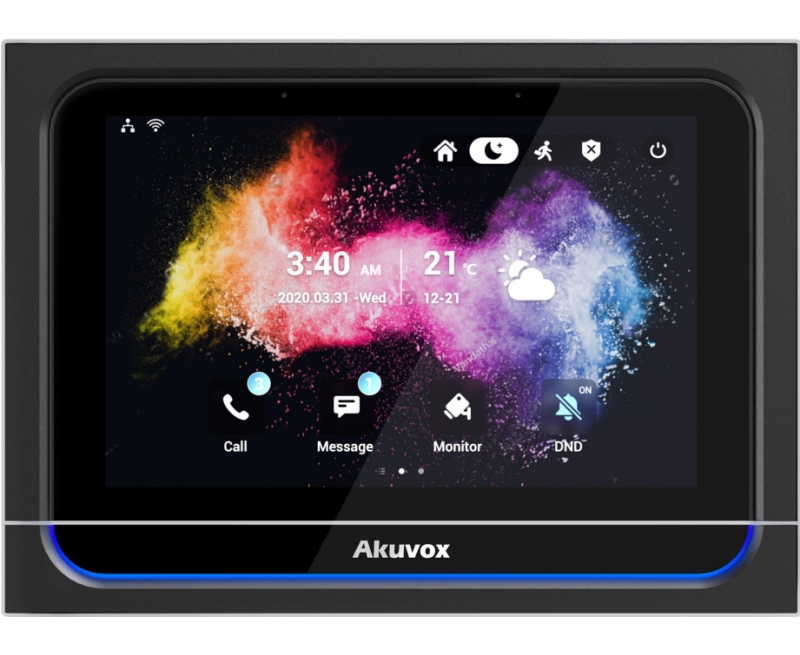

The Akuvox X933W Indoor Intercom Answering Panel is a premium door access / communication intercom featuring 7" full-colour touchscreen. - this model also featuring Wifi and Bluetooth wireless connectivity.
This multi-functional touchscreen door answering panel uses the high performance Android 9.0 operating system and is ideal for apartment / MDU intercom systems and integration with the Akuvox range of professional door intercom devices.

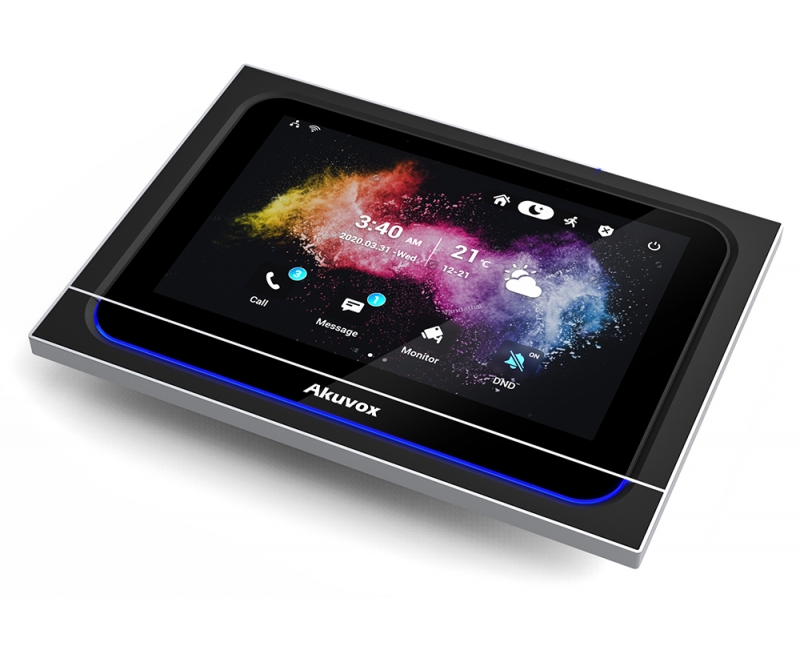

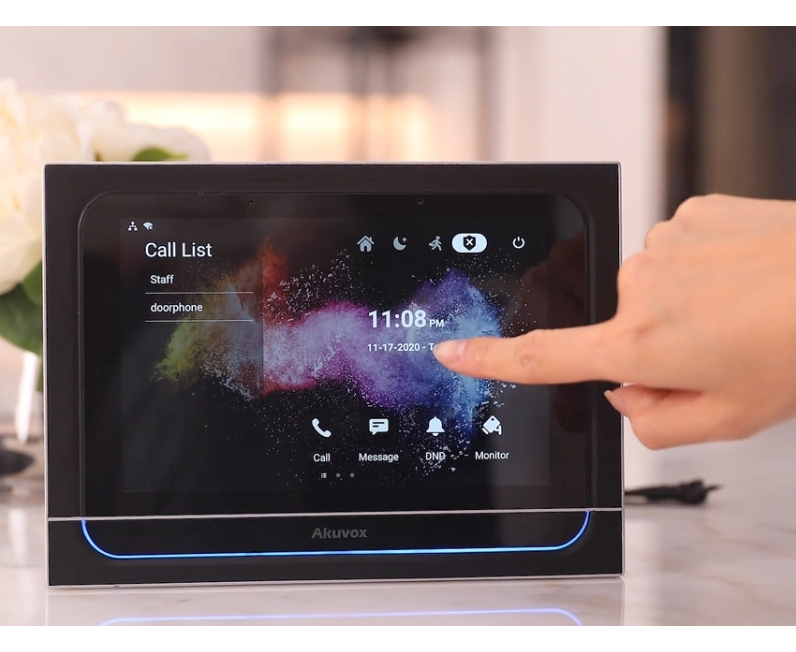

The Akuvox X933W Door Answering Panel features a 7 inch capacitive touchscreen and ABS plastic body.
Offering much more than just an intercom answering panel, the X933W uses a newly-designed, user-friendly interface featuring numerous pre-installed functions and applications and can be fully-integrated with other third-party, IP smart home devices (such as lighting, heating, blinds, etc) and automation platforms such as Control4, Crestron and Savant.

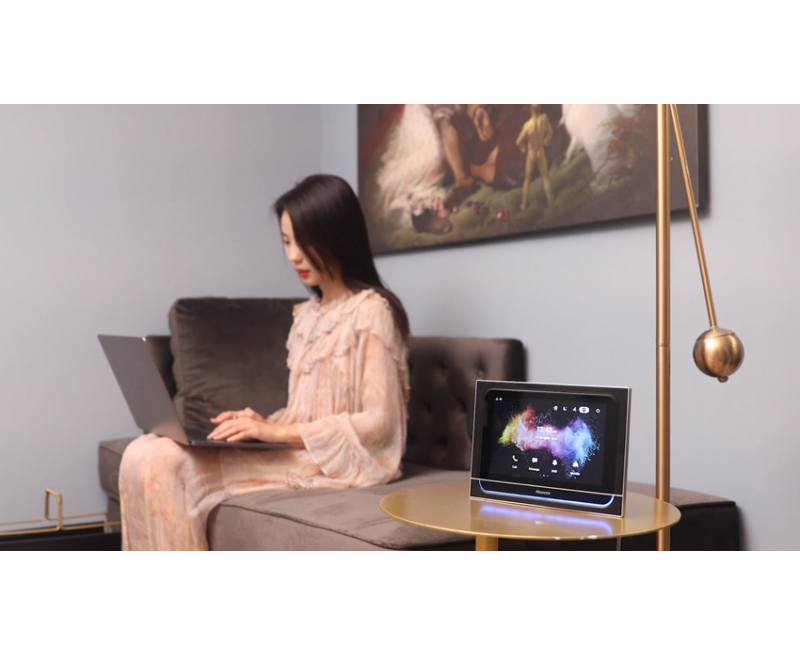

Ideal for use in apartments, multi-dwelling units (MDUs), large villas / home complexes and office environments.

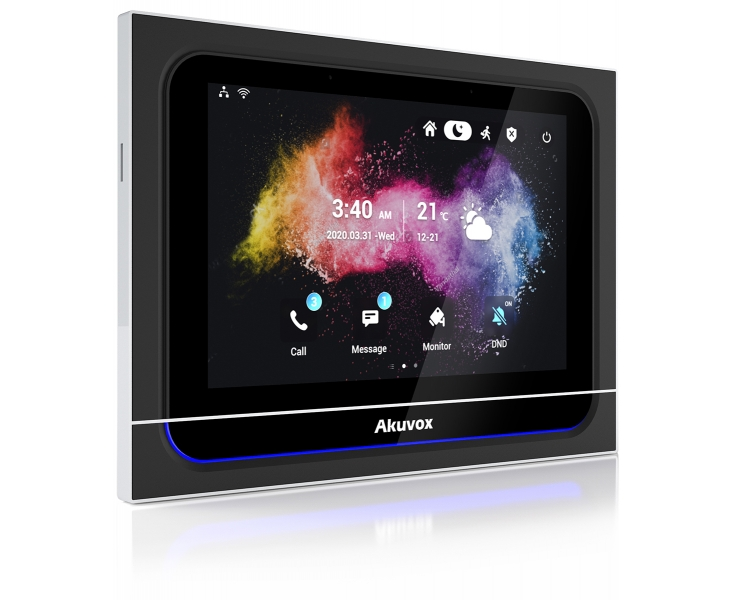

Finished with black frame and blue LED status bar.
WiFi Connectivity:
This version of our latest Door Answering Panel features built-in WiFi connectivity which allows wireless connection to the network for easy installation (no wired Ethernet cable required - although a power supply is still required).
As a WiFi-connected Android device, the X933W can also easily be integrated with other third-party smart devices such as lighting / heating control, audio systems, etc.
- Premium door intercom panel including Wifi & Bluetooth wireless connectivity
- 7 inch capacitive touch screen
- IP addressable for use with Akuvox range of IP Intercom devices
- Android 9.0 operating system; simple to use, control and configure
- High definition view of visitors at the door
- Remote door unlocking
- Receive video and audio from connected intercom / door access devices on the network
- Integration with third-party IP-connected devices
- Easily integrates with SIP Systems
- Power supply via PoE or 12v supply
- Voice assistant control
- Finished with black frame and blue LED status bar
- Touch Screen Display Normally black, Transmissive, Projected Capacitive, Luminance 350 cd/m²
- LCD Size 7 inch (Diagonal)
- Display Aspect Ratio 16:10
- Display Resolution 1280 x 800
- Contrast Ratio 900:1
- Screen Viewing Angle ±89° Left, ±89° Right, ±89° Upper, ±89° Lower
- Voice Activation Included
- Audio Features Built-in microphone and speaker (For C317A and C317W only)
- Video Streaming Formats H.263 & H.264
- Memory RAM 2GB, ROM 8GB
- Ethernet 1 x RS485 port / Wifi connnectivity
- Relay Out x2
- Bell In x1

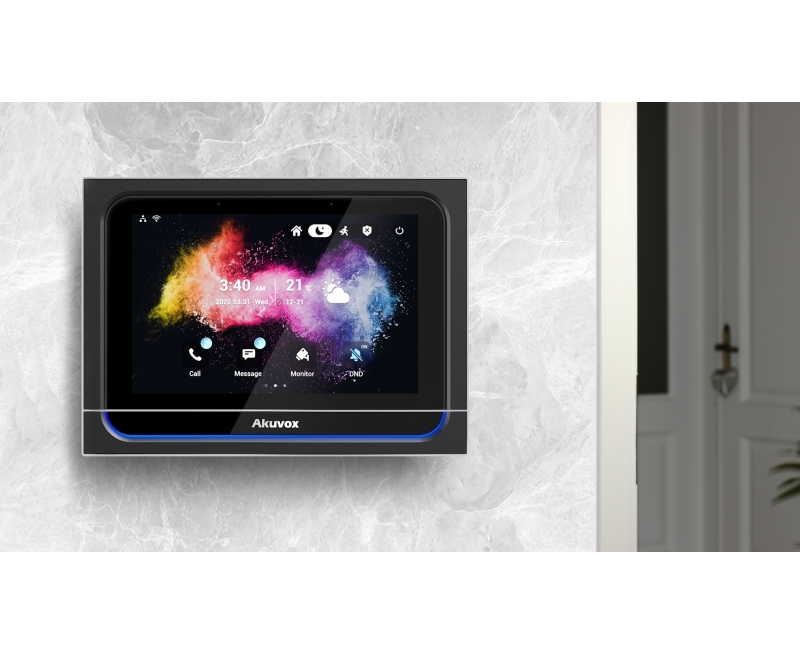

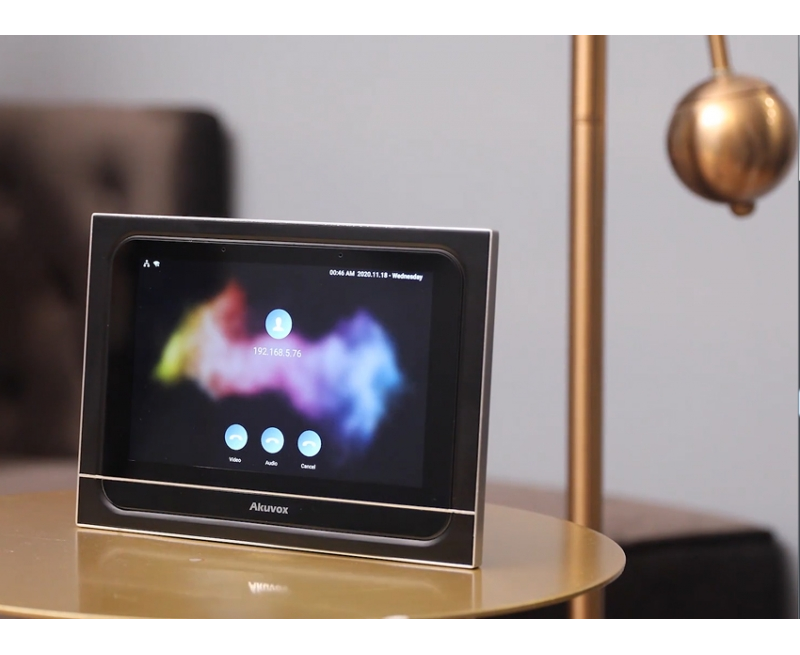

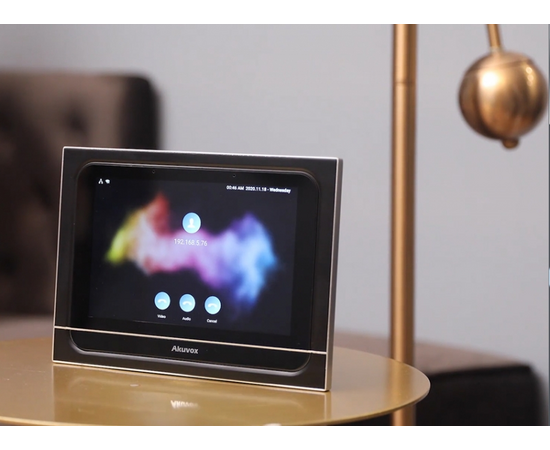

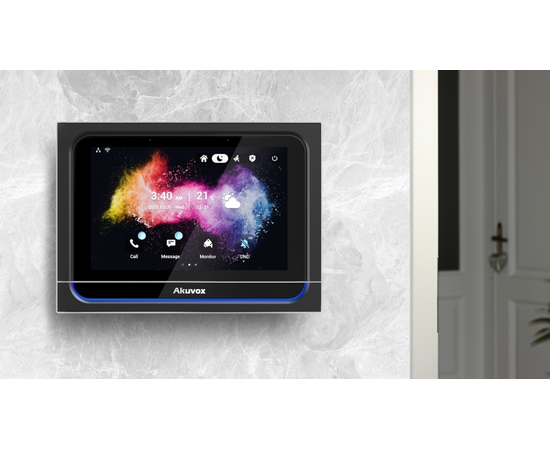

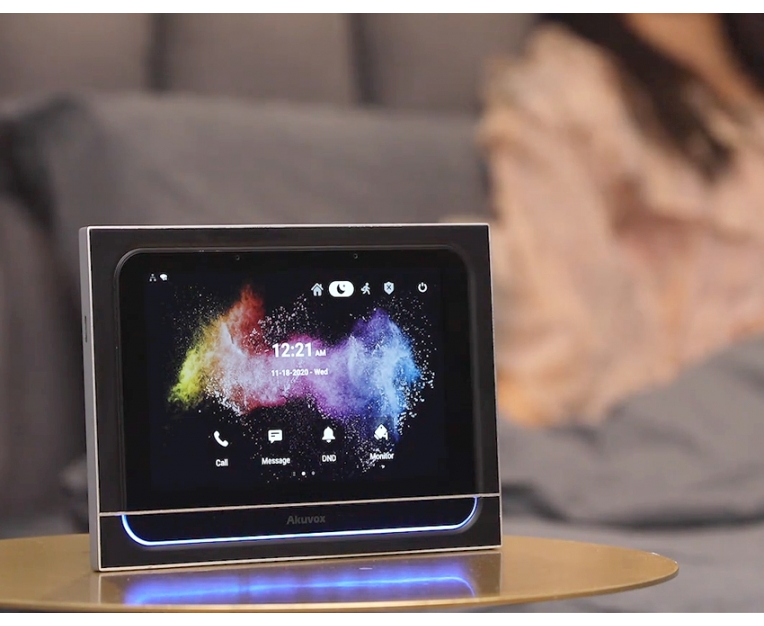

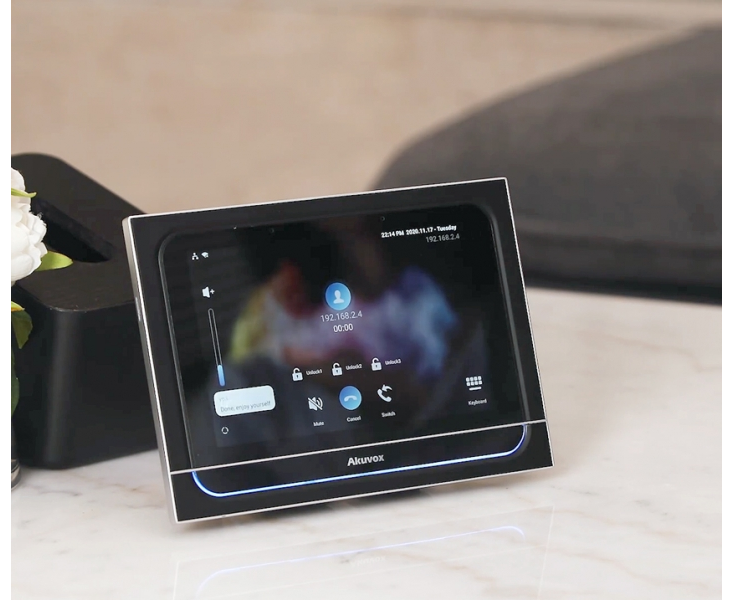

- Installation Wall mount or table top (Stand sold separately)
- Colour Black
- Operating Temperature -10° to 45°C
- Housing Material Plastic
- Dimensions 205(W) x 148(H) x 22(D) mm
- Weight (Net) 0.90kg
- Weight (Gross) 1.10kg
