Arlo AVD1001-100EUS 2K Wired Video Doorbell
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
---|---|---|---|
2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
---|---|---|---|
1 | 44 | 11 | 36 |
2 | 22 | 5 | 18 |
3 | 17 | 4 | 14 |
4 | 11 | 3 | 9 |
5 | 9 | 2 | 8 |
6 | 8 | 2 | 6 |
8 (4K) | 5 | 1 | 4 |
12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

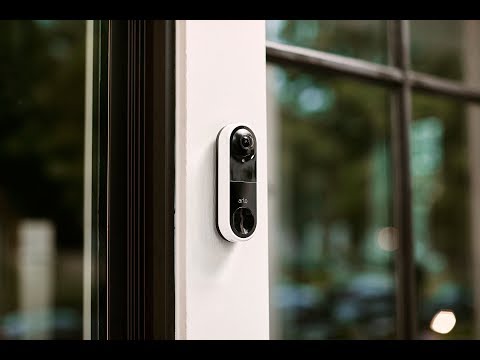

Video Doorbell 2K (Wired)
Know before they knock
See more at your front door.
Capture a person from head to toe, or a package on the ground, with a front door-optimized 180° diagonal viewing angle and 1:1 ratio.
Video call
Arlo Video Doorbell calls your phone directly when your doorbell is pressed to ensure you never miss a visitor.
Motion detection & alerts
Get notified when motion is detected, and watch live-streaming video from your smartphone or tablet.
More ways to answer
Hear and speak to visitors with clear 2-way audio, or respond quickly with pre-recorded messages.
Connect to your existing doorbell wiring. Arlo Video Doorbell requires a voltage between 16-24VAC to work. We advise hiring a certified electrician to install the transformer included in the box to deliver the correct power.
Built-in siren
Set the siren to sound automatically during an event or trigger it remotely.
Video Doorbell
- Max Video Resolution
1536x1536
- Video Modes
1536x1536, 1080x1080, 720x720, 1:1 ratio
- All Video Features
HDR, SIP video call at doorbell push
- Max Lens Field of View
180-degree diagonal
- Spotlight
No
- Motion Detection
Single Motion Sensor, 110 degree horizontal
- Night Vision
Night Vision, high powered Infrared LEDs (850nm) with IR Cut Filter
- Indoor/Outdoor
Outdoor UV & Weather resistant
- Digital Zoom
12x
- Microphone
Single Microphone Array
- Audio
Full Duplex 2-way audio, SIP audio/video call initiated at doorbell press, quick reply messages
- Operating Temperature
-20 to 45 degree Celsius
Installation Requirements:
- Wired doorbell and chime with existing electrical wiring.
- Voltage between 16V AC and 24V AC, and a 10VA transformer.
- High-Speed Internet Connection.
