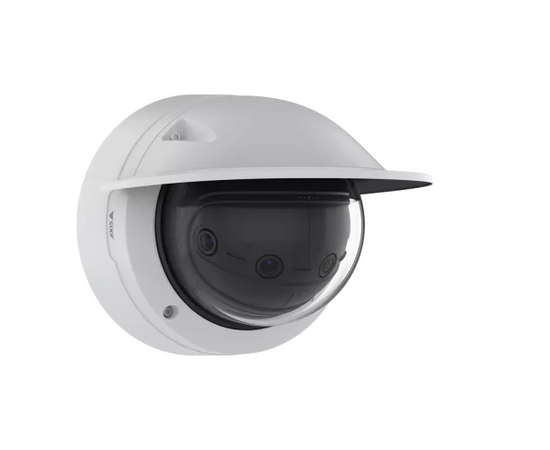

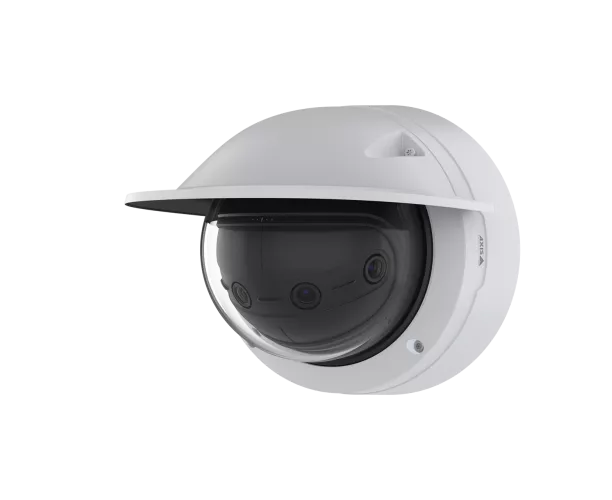

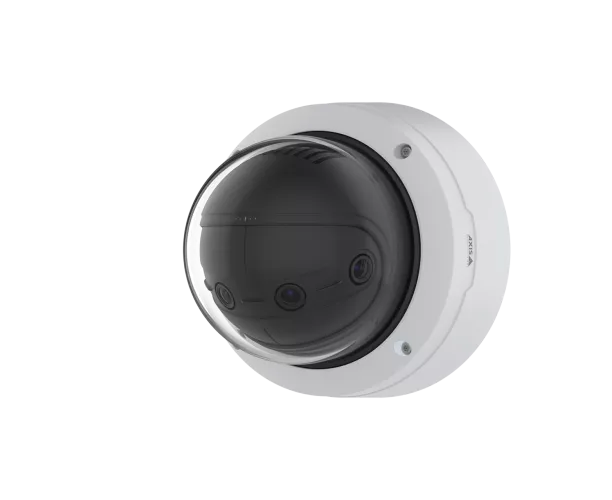

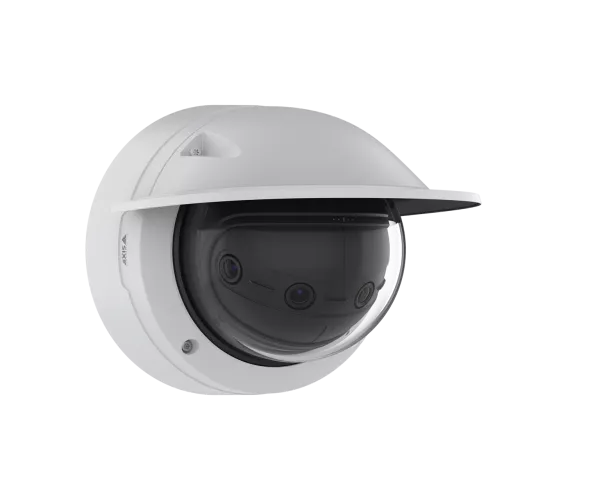

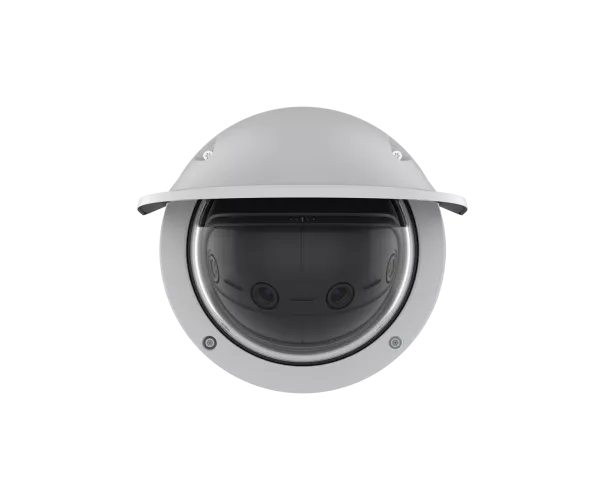

AXIS 6 MP Outdoor Ready Dome with 180° Panoramic View and Audio Capture Network Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Do you need a camera that ensures complete coverage and excellent image quality with no blind spots? Built on ARTPEC-8, this multisensor, cost-efficient camera supports advanced analytics based on deep learning on the edge.
True to life images
This 7 MP multisensor camera offers a single smooth and cohesive video stream with 180° panoramic coverage and captures high resolution images with incredible details up to 30 fps. Thanks to horizon straightening, it ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image. With seamless stitching across all 4 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitch in the center. And the camera automatically optimizes white balance and exposure time. Furthermore, thanks to Forensic WDR, it offers excellent forensic image usability.
Complete coverage with support for audio input
AXIS P3827-PVE is perfect when you need to see the whole picture. It offers panoramic overview of extensive areas with 180° horizontal and 90° vertical coverage with no blind spots. And it’s possible to mount two cameras back-to-back for a complete 360° overview using AXIS T94V01C Dual Camera Mount. This allows for quick and intuitive situational awareness over a large area and lets the operator visually follow objects across great distances. Furthermore, with edge-to-edge technology, it’s easy to add whatever connectivity devices you need. For instance, you can add support for audio using AXIS T61 Audio and I/O Interface.
Deep learning on the edge
Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P3827-PVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Cost-efficient, flexible, and secure
This cost-efficient camera gives you get the benefits of four cameras while paying for just one. And fewer cameras are needed to cover large areas. Additionally, it offers a wide variety of mounting options and adjustable positions to ensure fast, cost-efficient, and easy installation. Furthermore, AXIS P3827-PVE includes built-in cybersecurity features. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
