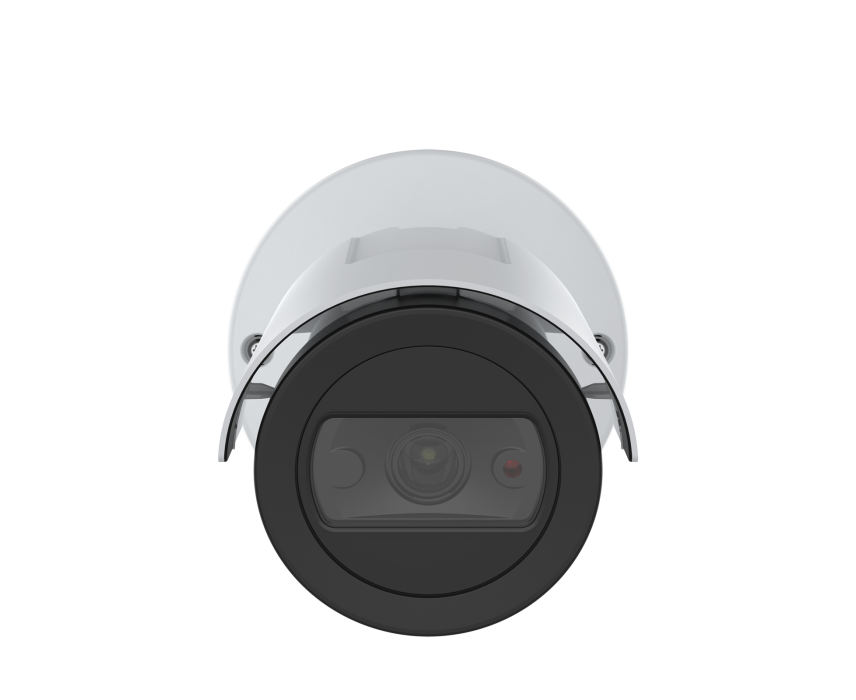

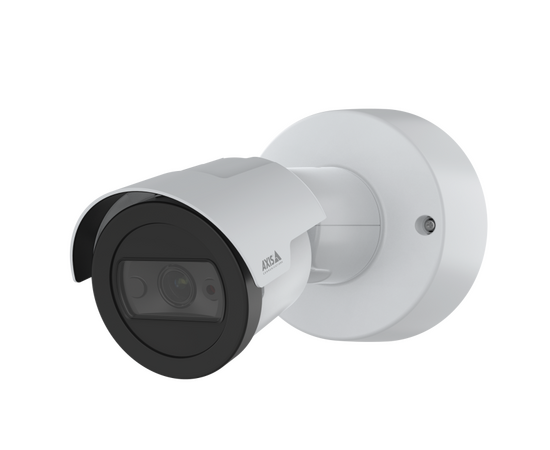

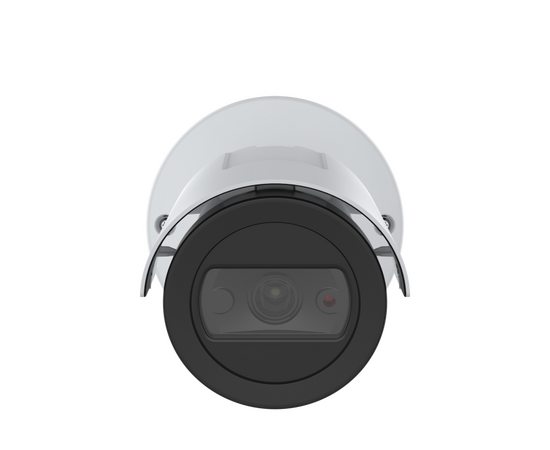

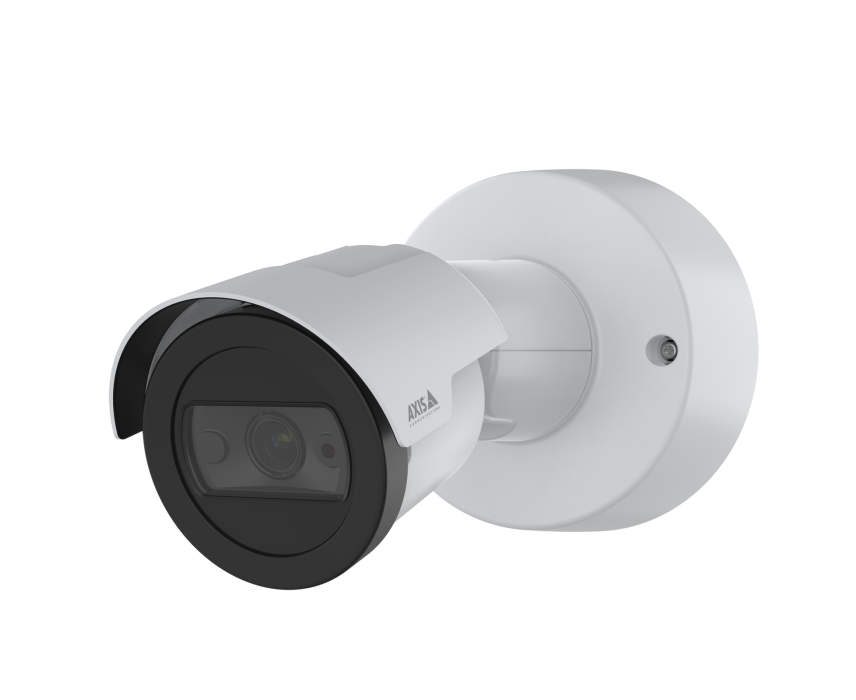

Axis M2036-LE 4MP Compact Bullet With Deep Learning
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it’s easy to install and supports analytics with deep learning.
Affordable Axis excellence
AXIS M2036-LE delivers Quad HD 1440p/4 MP and a horizontal field of view of 129°. With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there’s both dark and light areas in the scene.
Top performance in tough conditions
Ideal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures as low as -30 °C and as high as 50 °C (-22 ºF to 122 ºF). It includes an integrated sunshield for protection against sun and rain. Additionally, with IP66, IP67, and NEMA 4X ratings, it’s resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker
Installation that’s as easy as 1,2,3…
This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there’s no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, AXIS M2036-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.
