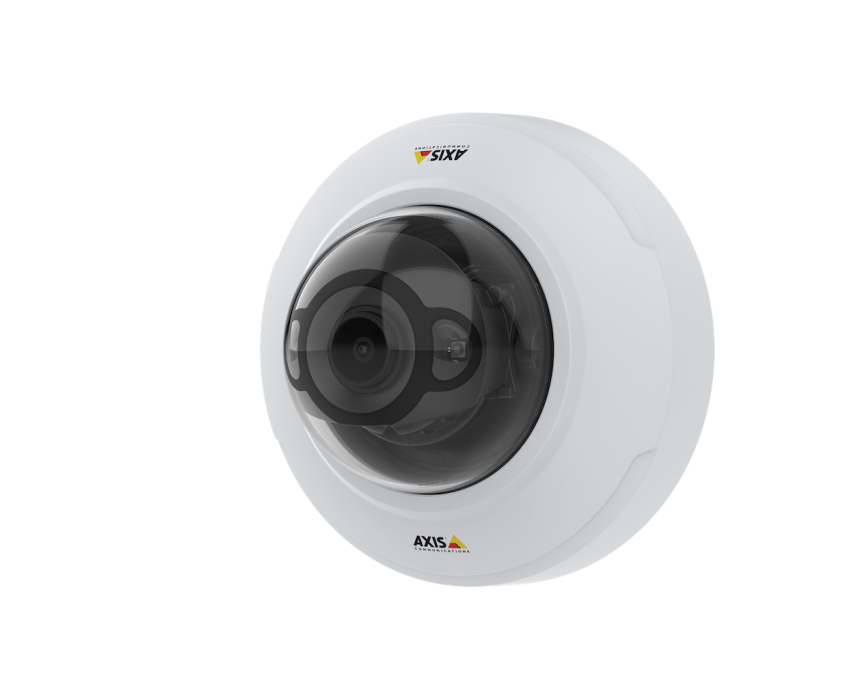

Axis M4216-LV Varifocal 4 MP dome with IR and deep learning
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
This discreet dome delivers great images in any light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.
Great images, every time
Ideal for indoor surveillance applications, AXIS M4216-LV delivers great image quality in 4 MP for wide 4:3 view and 3 MP for 16:9 aspect ratio. With a varifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed. Thanks to Lightfinder and WDR, it provides details even in challenging light conditions. And Axis OptimizedIR allows for surveillance in pitch darkness. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.
Extended possibilities
AXIS M4216-LV offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity using AXIS T61 Series. It offers advanced analytics based on deep learning on the edge to deliver valuable metadata facilitating efficient forensic search capabilities in live or recorded video. And AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering.
Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment. This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it’s always safe and secure.
