AXIS License Plate Verifier Kit - P1465-LE-3
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

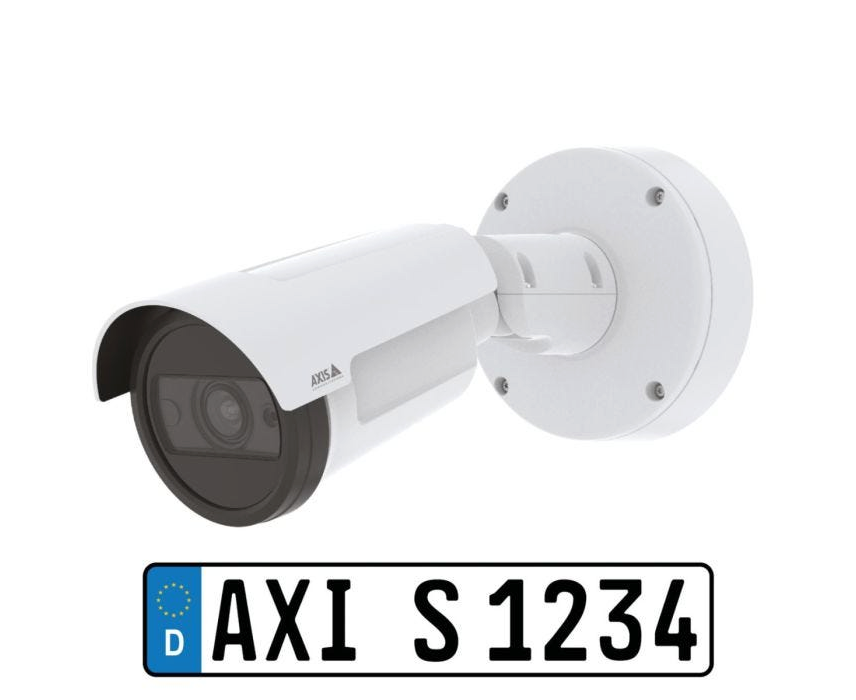

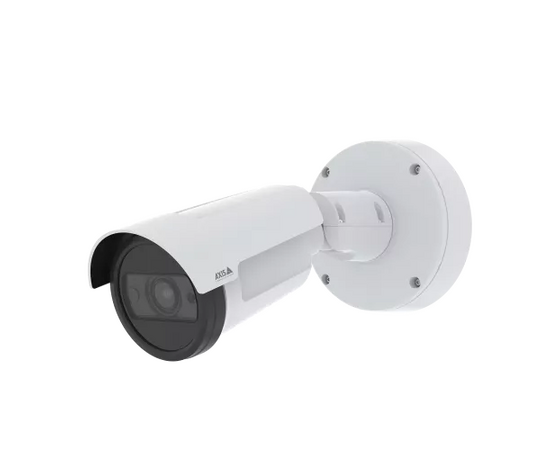

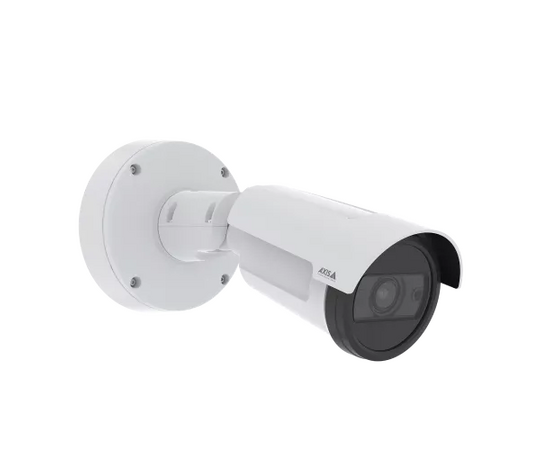

Overview of the AXIS P1465-LE-3 Licence Plate Verifier Kit
- AXIS P1465-LE camera with built-in AXIS License Plate Verifier software
- Captures full HD 1080p video for reliable plate recognition
- 29mm varifocal telephoto lens delivers a tight 11°–29° horizontal view
- Detects number plates at distances of up to 20m at speeds up to 65mph
- Forensic WDR, Lightfinder 2.0 and OptimizedIR deliver clear images 24/7
The AXIS P1465-LE-3 License Plate Verifier Kit is an all-in-one solution for reliable number plate capture in both free-flow traffic and access control scenarios. It includes the AXIS P1465-LE network camera with AXIS License Plate Verifier preinstalled, offering full HD 1080p resolution and a 29 mm telephoto varifocal lens for long-range detection. Plates can be read at distances of up to 20 m, even at vehicle speeds of up to 65 mph. Electronic Image Stabilisation (EIS) ensures a stable picture even at extended distances and during vibrations. Built for outdoor use, it features IP66/67 and IK10 ratings, along with OptimizedIR, Forensic WDR and Lightfinder 2.0 for clear imaging in any conditions. Ideal for barrier control, gated entries, or perimeter monitoring.
We recommend using the AXIS TQ1602-E conduit back box for secure installation and tidy cable management.
Video Analytics
AXIS License Plate Verifier provides real-time licence plate recognition for vehicle access, search, parking management, and free-flow traffic applications. It captures plates at speeds up to 65 mph and runs entirely on the camera, eliminating the need for external servers and reducing bandwidth use. Easily link with access control systems and define rules for seamless entry management in car parks, toll roads, and similar environments.
This camera also supports AXIS Speed Monitor, AXIS Perimeter Defender and other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- Road monitoring - capture vehicle detail, improve traffic flow and ease congestion, aid city planning, combine with radar for speed management and fine enforcement, collate data and develop insights, identify repeat offenders
- Access control - identify licence plates added to whitelists and blacklists, toll bridges and tunnels
- Car parks - vehicle detection, object counting in area, loitering warning within restricted zones
Accessories included
- Camera
- Installation guide
- TORX® L-keys
- Terminal block connector
- Connector guard
- Cable gaskets
- AXIS Weather Shield L
- Owner authentication key
No posts found
All-in-one license plate recognition with AXIS P1465-LE-3 License Plate Verifier Kit
