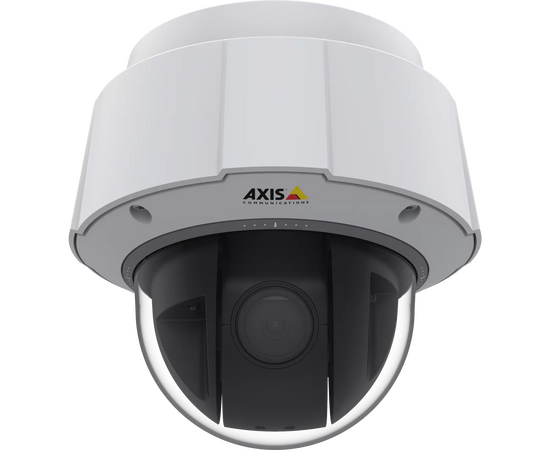

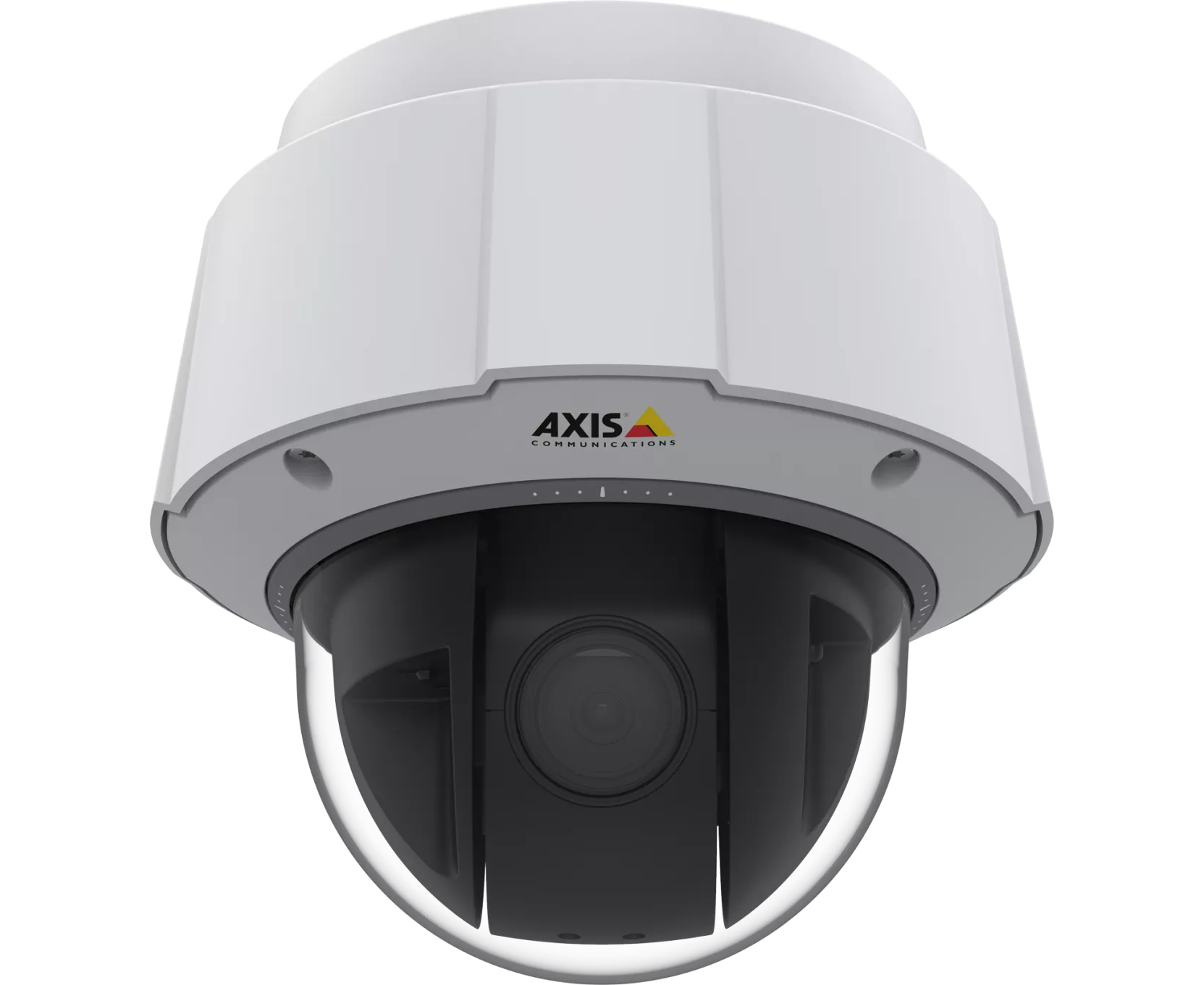

Axis Q6075-E outdoor PTZ IP camera with HD 1080p, 40x optical zoom, endless 360° pan, Lightfinder 2.0 and PoE+
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

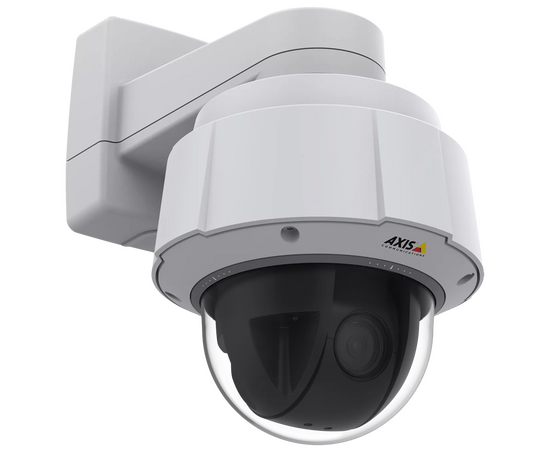

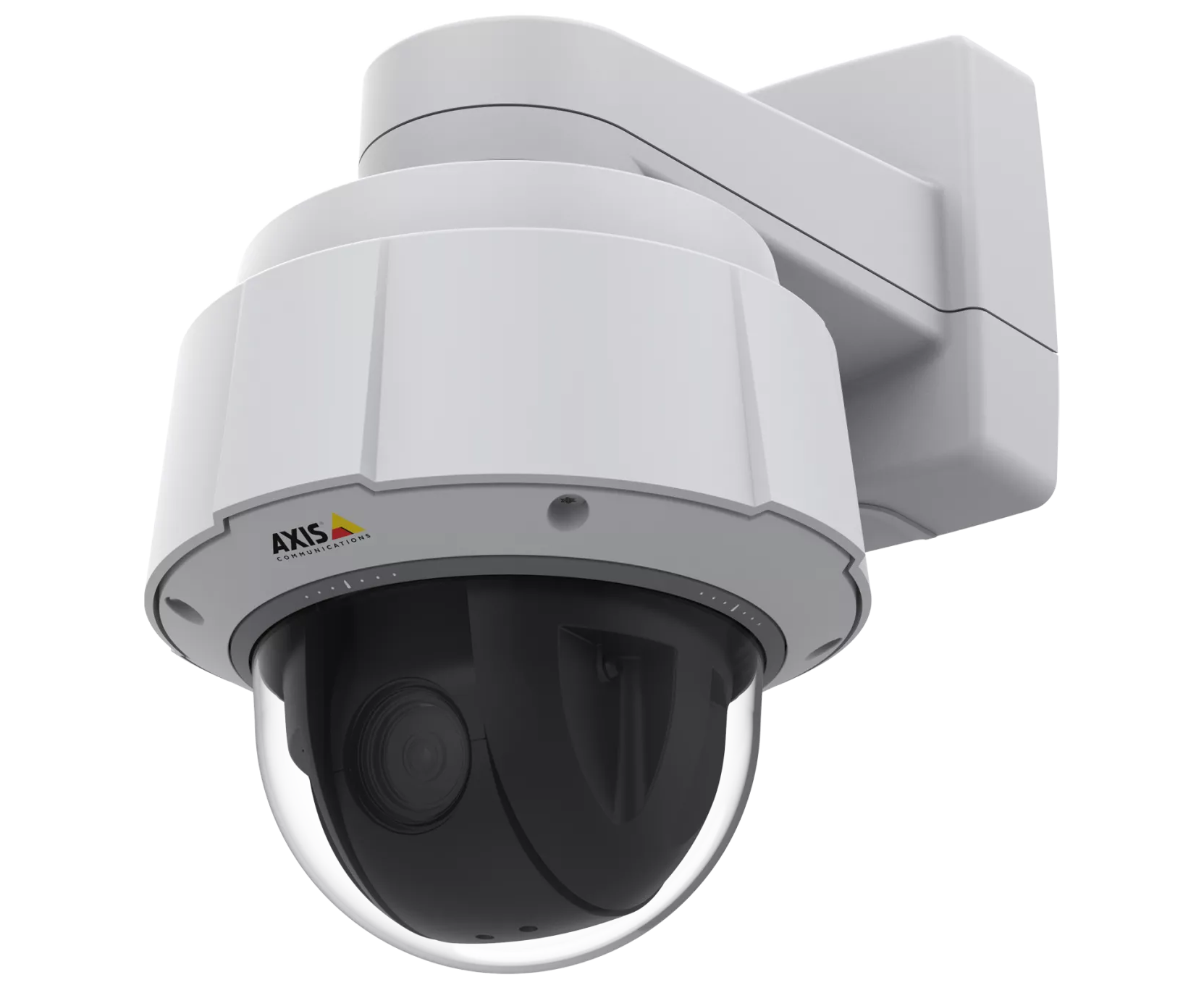

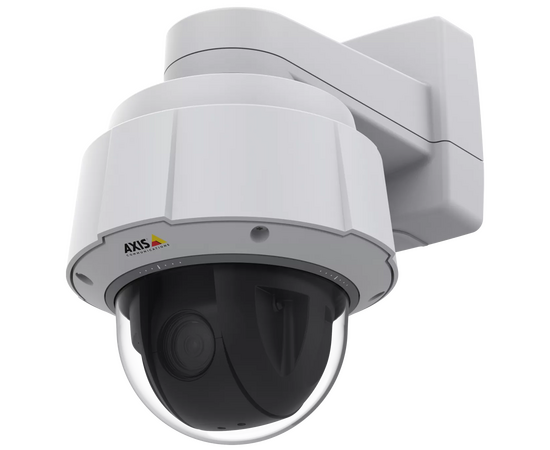

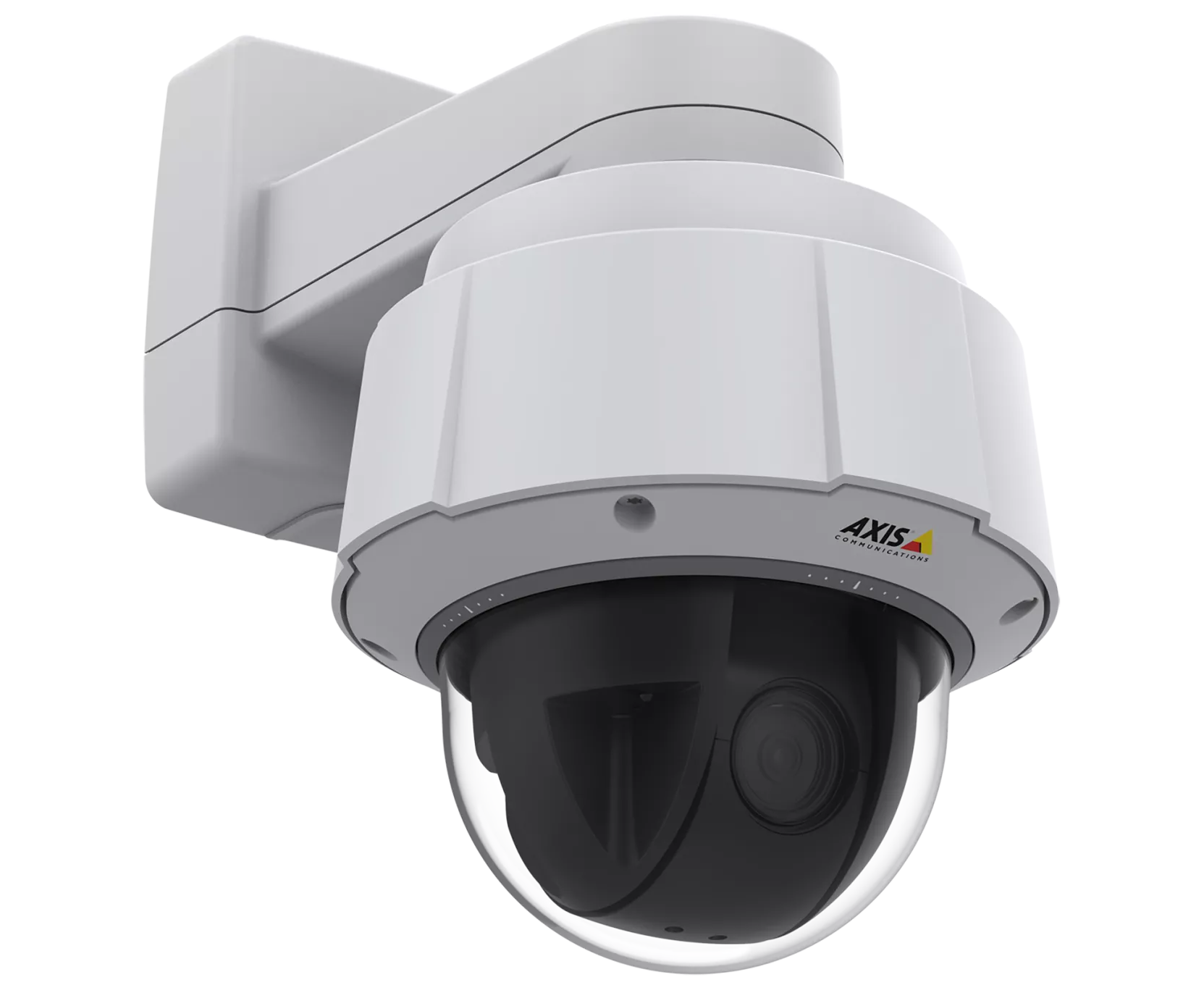

AXIS Q6075-E PTZ Network Camera
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It's ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.
Superior details in demanding light conditions
AXIS Q6075-E delivers superior video quality in HDTV 1080p and 40x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colours and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
Whenever, wherever it's needed
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighbouring property.
Keeping you secure
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Module Platform that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
