Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Power You Can Always Rely On

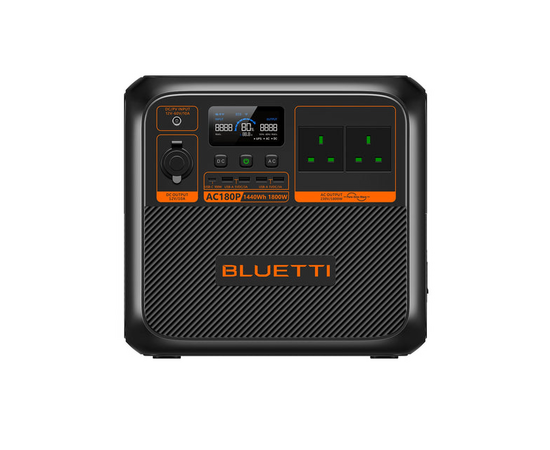

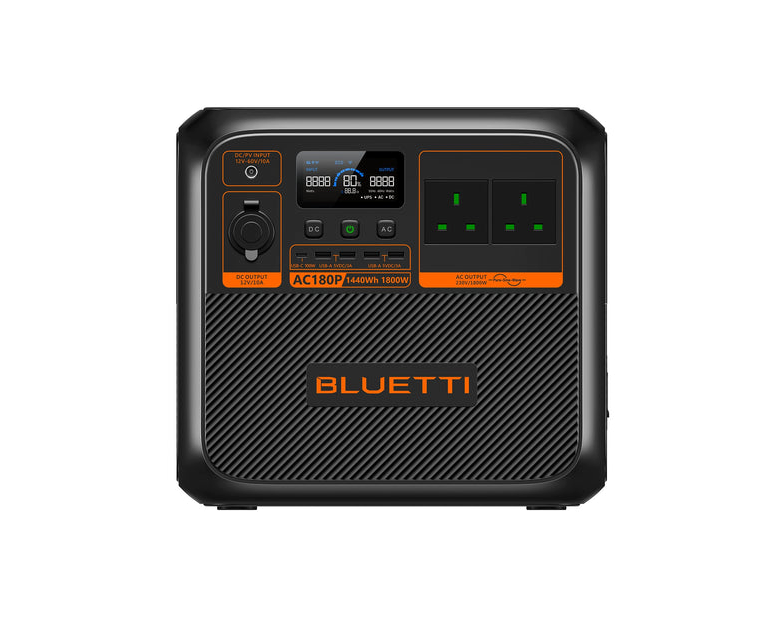

Designed for both indoor and outdoor scenarios, AC180P is highly capable as it has a robust capacity and continuous output power. Thanks to its super-fast charging speed and portable design, it's a grab-and-go power station for numerous applications. The BLUETTI App is also available to make remote control and real-time monitoring incredibly convenient with just a few swipes on your phone.
Power Pretty Much Anything.
BLUETTI equips AC180P with 1,800W constant output power and 1,440Wh capacity to cover most power demands. It also has a Power Lifting Mode that delivers 2,700W output to run high-powered devices effortlessly. A wide range of outputs, including AC outlet, USB-A, USB-C, 12V DC outlet, and wireless charging pad, are built for versatile charging for living off-grid or on the go.
Compact & Portable
In view of portability, AC180P measures 340mmｘ247mmｘ317mm(LxWxH) and weighs about 35.27lbs/16kg, adding a convenient handheld design that makes it easy to carry around on the way to your next adventure.
Capacity Grows As Needed
Worry about running out of juice on your way to the next destination? Get your AC180P charged via expansion batteries - B80 (806Wh), B230 (2048Wh), and B300 (3072Wh) - to ensure a continuous power source of up to 4,224Wh, which is sufficient to last your outdoor fun even longer.
One Hour to Charge, All Day to Power.
The highly efficient charging rate ensures the battery can be fully loaded shortly. With only one single charge, AC180P is capable of delivering extended battery life to feed up your essentials at home or in the wild. Driven by Turbo Charging with up to 1,440W input, 0-80% recharging only takes 45mins! You can now relax knowing that the ready-to-use power is always within reach
