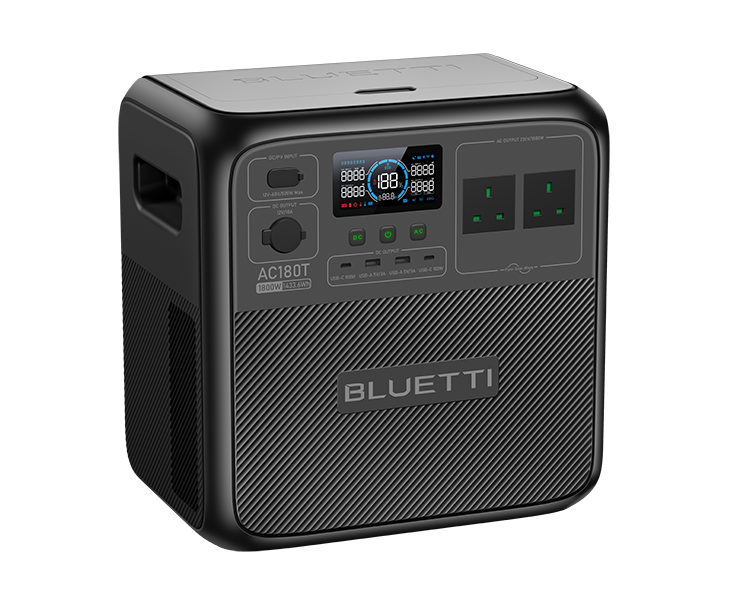

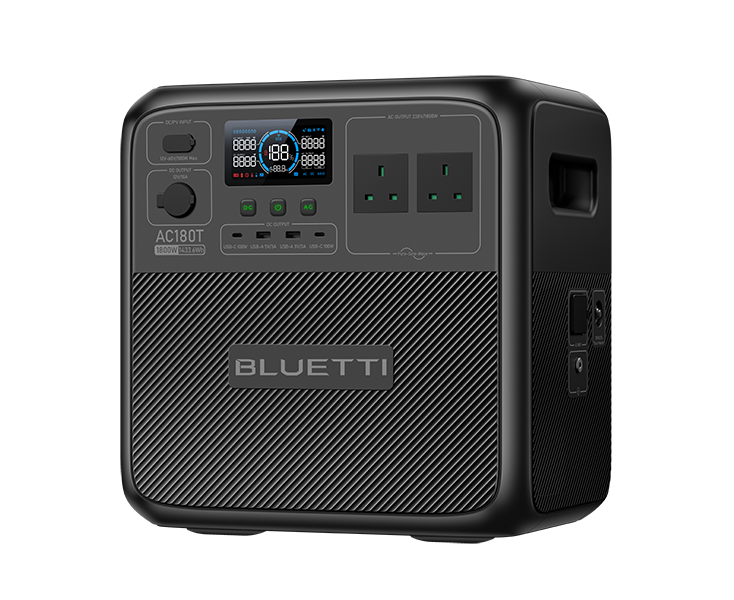

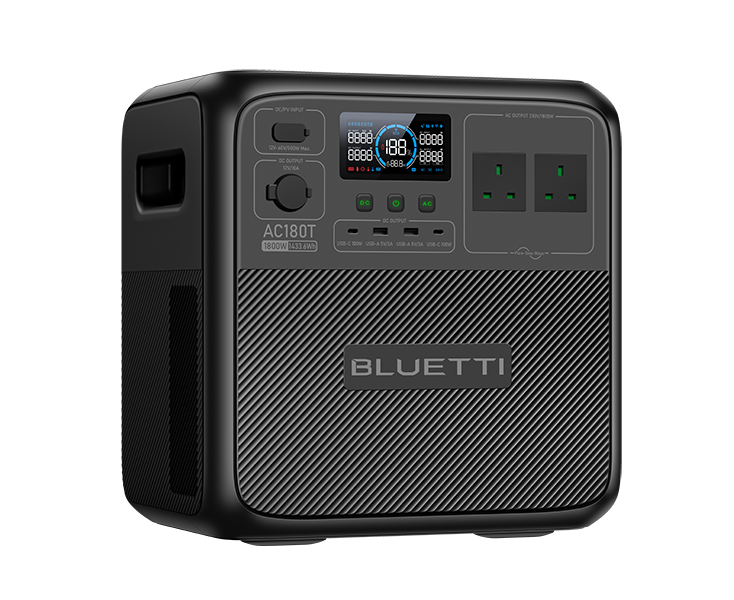

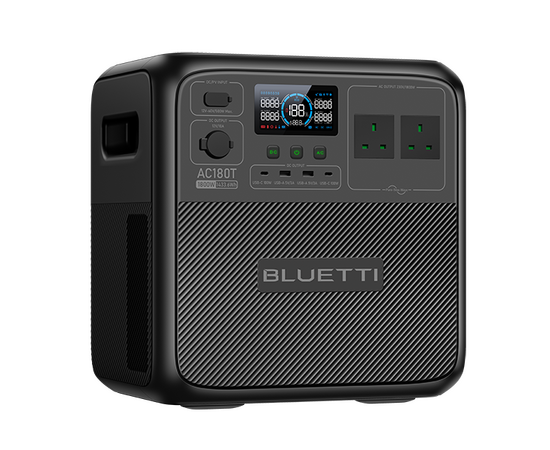

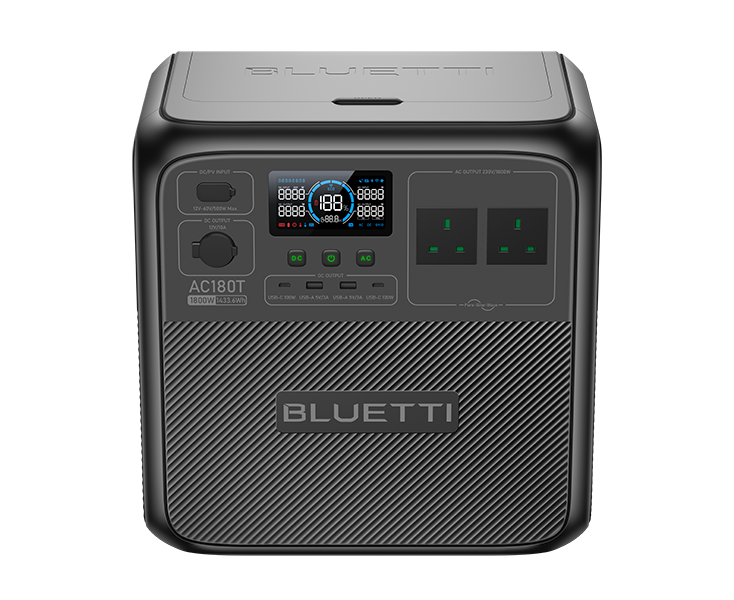

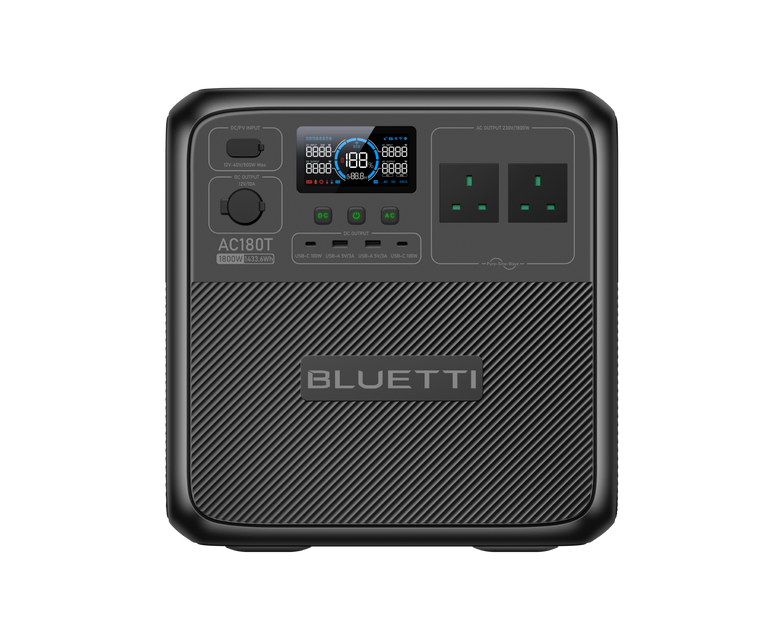

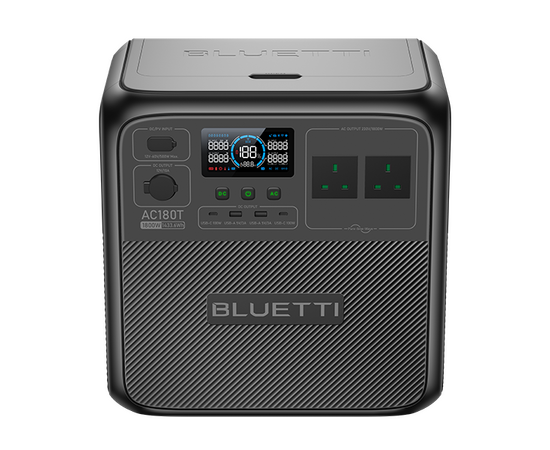

BLUETTI AC180T Solar Portable Power Station | 1,800W 1,433Wh
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
BLUETTI SwapSolar Ecosystem: Power & Chill On the Go
For week-long road trips or an off-grid lifestyle, BLUETTI's first ecosystem keeps your devices powered, food fresh, and drinks ice cold, all in an efficient and sustainable way. The interchangeable B70 battery fits both the AC180T and the Multicooler, offering extreme flexibility and convenience.
*Multicooler and B70 Battery Pack sold seperately and will be available in August.
Swap Seamlessly for Endless Runtime
Keep multiple battery packs on standby and replace them for constant power anytime. Whether it's during a multi-day power outage or on a rainy day when solar energy is not available, you can always have ample power for all your needs.
Swappable Battery Design for Easy Move
Packing a punch without being bulky, the AC180T is easy to transport to where it's needed most, thanks to its two removable batteries that allow for separate transportation.
Speedy Charging, Ready in 1.1 Hours
Minimal waiting time and maximum power fun with the AC180T, which reaches to 80% in just 45 minutes and fully charges in 1.1 hours! This rapid speed ensures a quick response to emergencies and fast readiness for a getaway on a whim.
Charge It at Your Will, Anywhere, Anytime
Flexible recharging means worry-free power journeys. Plug into the wall for a full charge in just 1.1 hours. Harness the sun in 3 hours. Or power up from your vehicle in 8 hours. Whichever way you choose, you're good to go.
Work Like a Charm with Big Power
The AC180T's 1,800W output already covers 99% of common appliances like coffee makers, laptops, TVs, microwaves, and induction cooktops. But the real magic happens with its Power Lifting mode, allowing you to power resistive loads of up to 2,700W, such as electric heaters and hairdryers. With a capacity of 1433.6Wh, it can power a 6,000 BTU window air conditioner for 6 hours straight—how about that!
*1,800W output with two B70 batteries inserted, or 1,200W with one.
Safety Always a Priority, All for Peace of Mind
We build the AC180T with reliable LiFePO₄ (LFP) batteries capable of over 3,000 charge cycles to 80%, equivalent to about 10 years of use. Powered by the advanced BLUETOPUS AI-Battery Management System, it safeguards against overcharging, discharging, and overheating, ensuring hassle-free and long-lasting usage.
