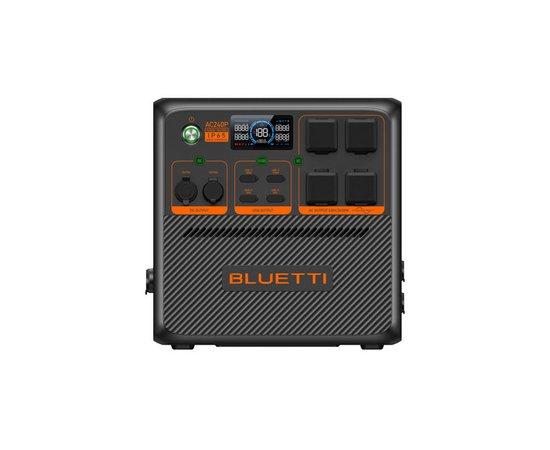

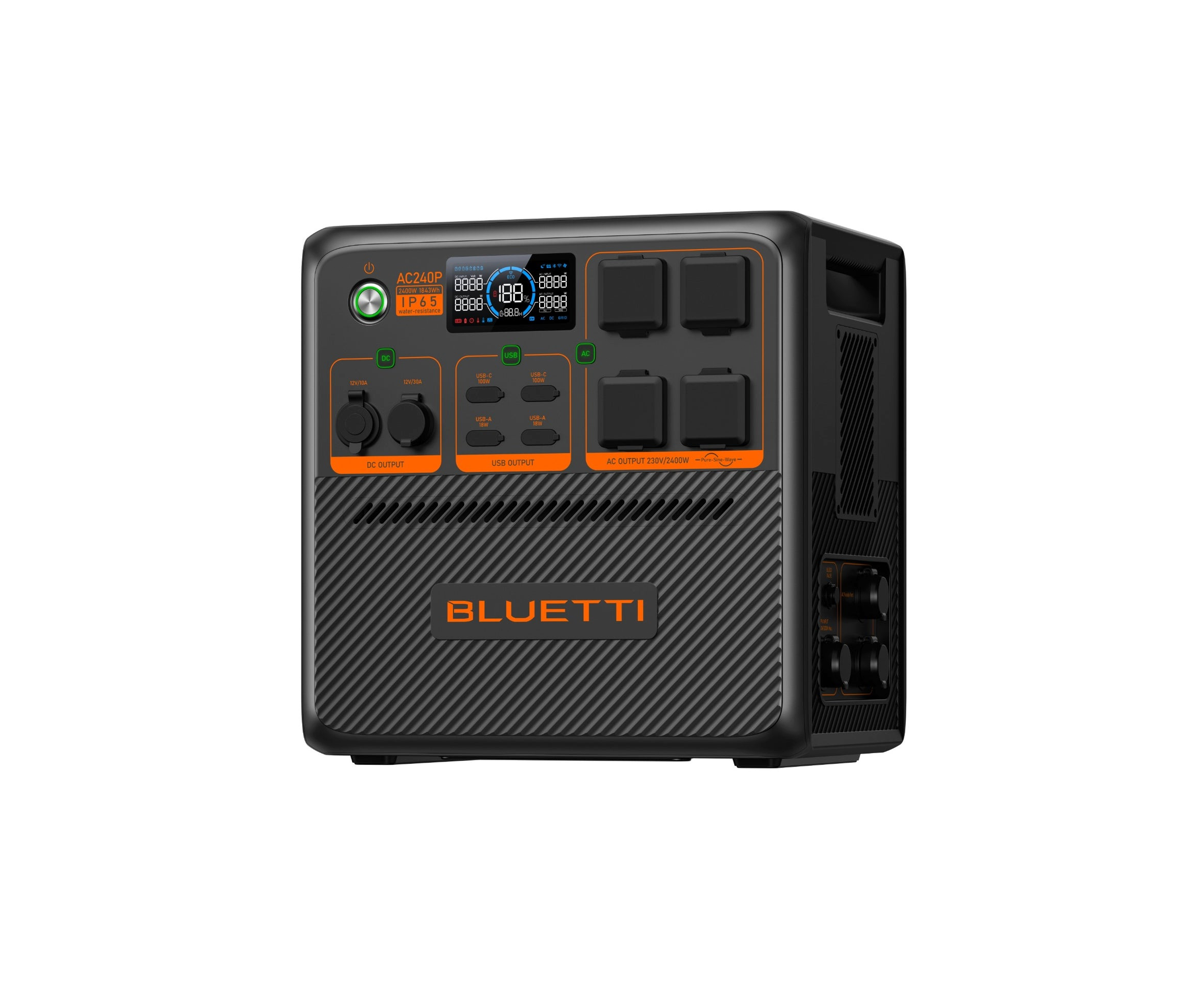

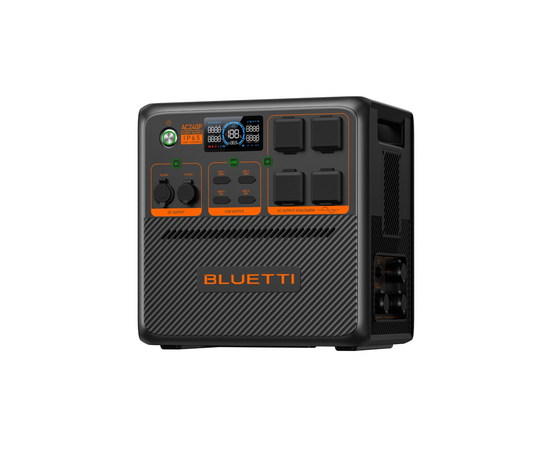

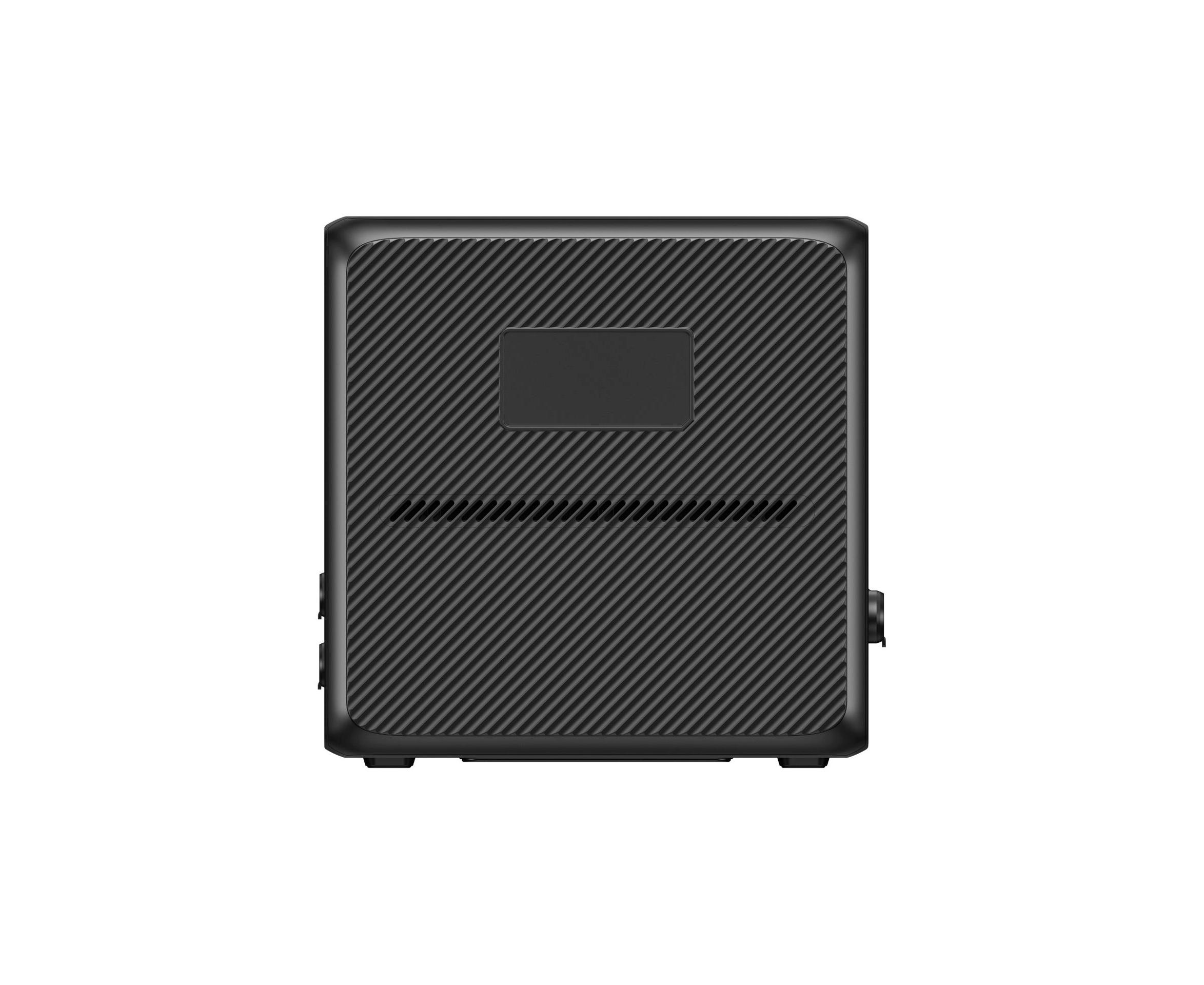

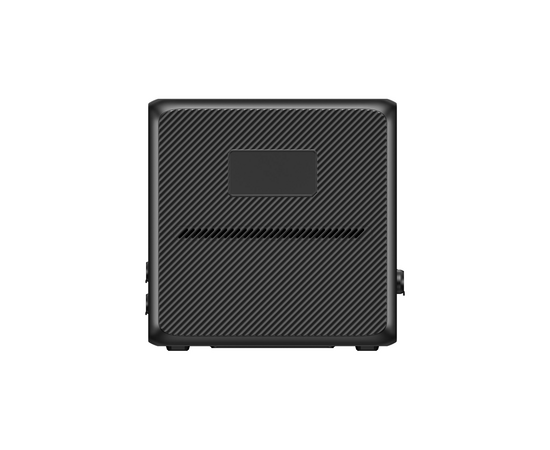

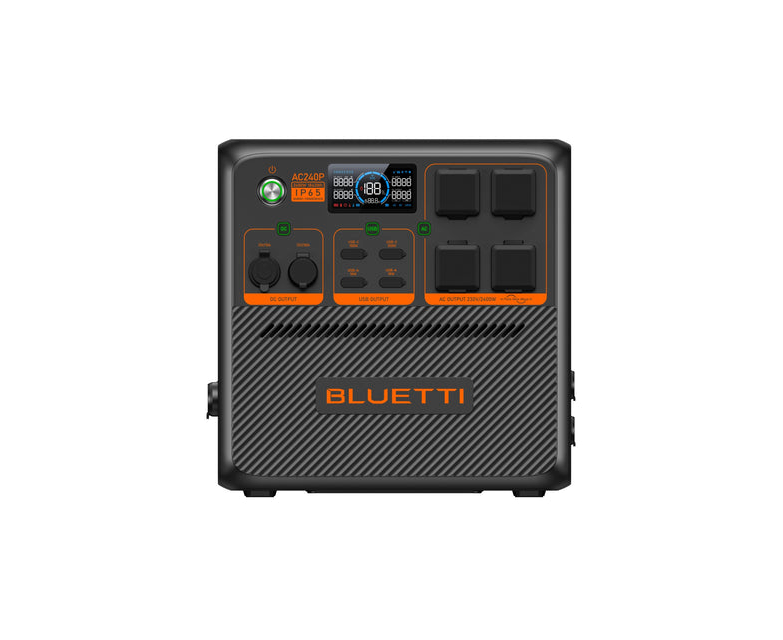

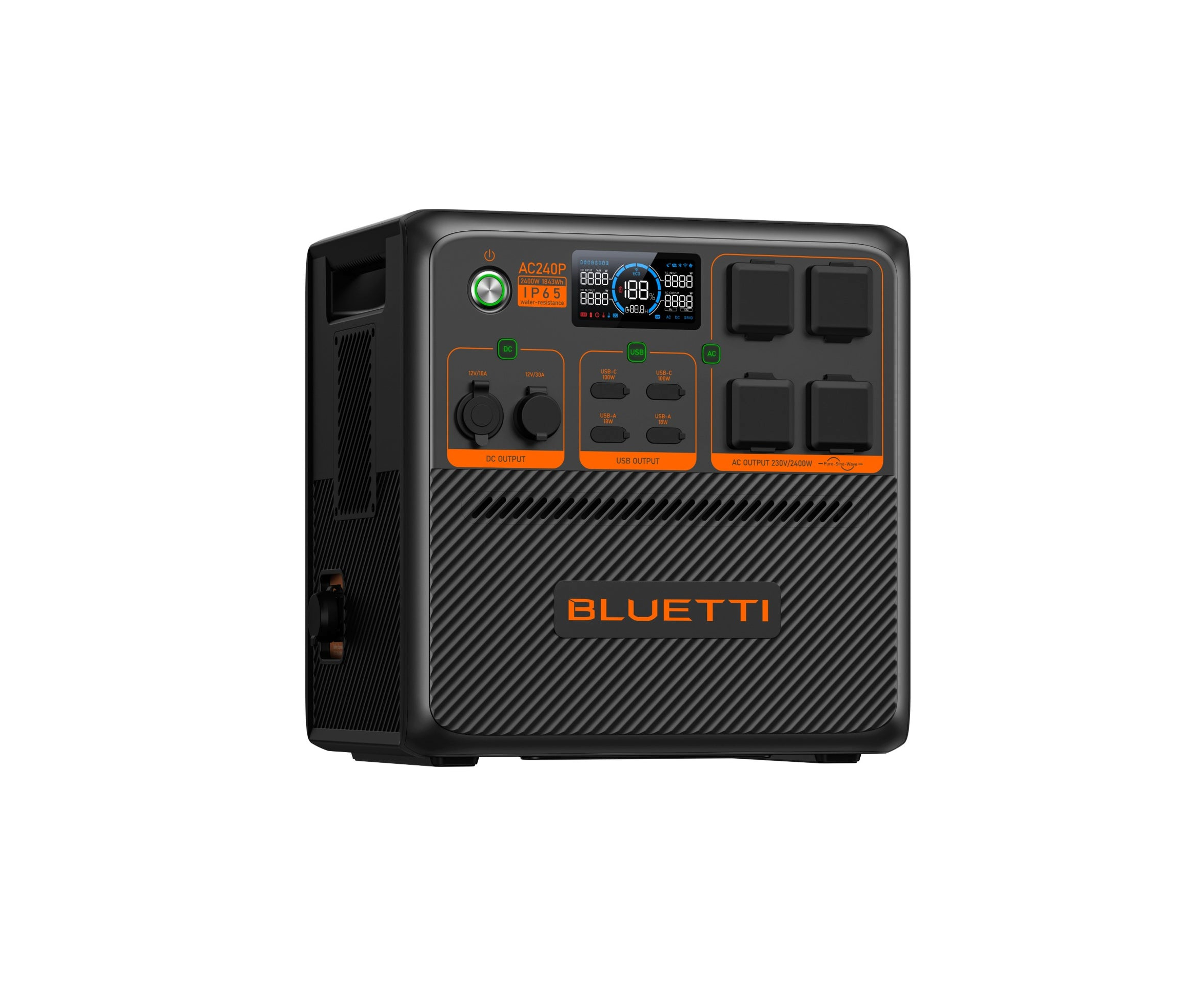

BLUETTI AC240P Portable Power Station | 2,400W 1,843Wh
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Power On, Rain or Shine.
The outdoor-friendly build and IP65 water and dust-resistance ensure resilience against rain, mud, dust, and salt corrosion. Coupled with optimal ventilation to protect the internal components, the AC240P is your go-anywhere, do-anything power pal!
More Than Manufacturing - Revolution
BLUETTI AC240P: Where Design and Innovation Fuse for Technological Breakthroughs.
Powering Your RV & Yacht
Ahoy there! You've got the AC240P as the no-pay first mate. With its NEMA TT-30A and RV ports, the AC240P ensures your RV life and voyage is powered up and ready for anything. Whether you're navigating the high seas or driving into the unknown wilderness, it's reliable enough to keep your adventures smooth from start to finish, no matter how choppy the waters or how dusty the roads.
Pushing the Boundaries of Mobile Power Station
Power Lifting Mode
Prepare to be wowed by the AC240P's exceptional output power. It effortlessly handles 99% appliances with a robust 2,400W rated output. But wait, there's more! Activate the lifing power for up to 3,600W, then running power-hungry devices is a breeze! Time to ditch your gasoline generator, because the AC240P is always at the ready for all scenarios.
Powering is More Like Playing with LEGO
Well, with the AC240P's modular design, it practically is! Stack up B210P expansion batteries and watch your power options multiply. Not surprisingly, your every energy need will be taken good care of.
Note: The B210P expansion battery is IP65 water-resistant and a standalone power source with USB-C and USB-A ports.
Charge Up Anywhere, in Anyway You Like
Tired of the hustle to charge your power station? Say goodbye to the hassle! With the AC240P, you're in control. Whether you're basking in the sun's energy with solar panels, plugging into a wall outlet, staying juiced on the move with a car charger, or even tapping into a lead-acid battery or shore power, the AC240P ensures you're always powered up and good to go.
Note: Extra cables are required for Turbo Charging (sold separately in BLUETTI)
Shore power charging: An extra adapter cable is required. How to connect: shore power outlet → adapter cable → charging inlet of AC240P.
A Decade of Power, Companion Forever.
- BMS: BLUETOPUS AI System protects against over charge/ discharge, over current, etc.
- Auto balance: ensure equivalent capacity for parallel operation.
- LiFePO₄ battery: 3,500+ life cycles.
- 10-year lifespan, 6-year warranty.
