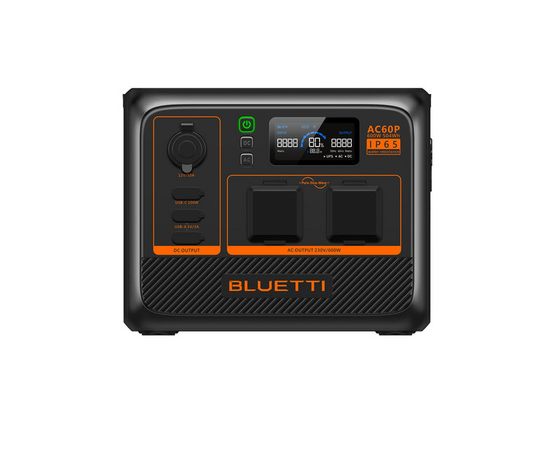

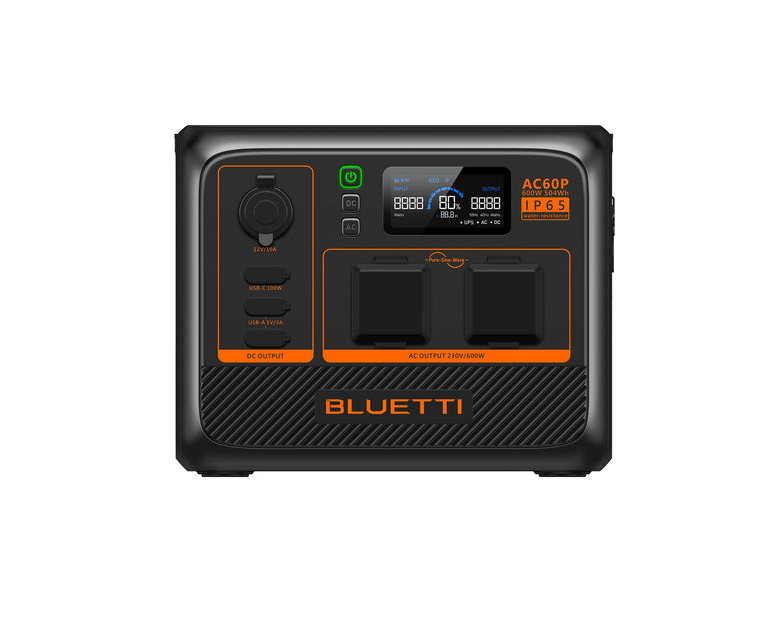

BLUETTI AC60P Portable Power Station | 600W 504Wh
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Power Anywhere, On the Road or Sea
Sporting industry-leading Power Lifting technology*, AC60P can deliver max 1,200W from its 600W inverter to power high-wattage resistive appliances such as hair dryers and girls. With 7 versatile outlets, it can power a range of devices timely, like ice-makers, fridges, electric blankets, phones, laptops, and more. Just enjoy the outdoors with the comforts of home.
* Power Lifting Mode allows AC60P to run high-power heating devices up to 1,200W.
Tiny, But Mighty
The AC60P is the world's first IP65-rated portable power station to be water-resistant and dust-proof. Compact at 18.9 lbs, it is easy to carry and can provide power anywhere, anytime. From dusty deserts to lakeside, in sunshine or rain, you'll have peace of mind.
Flexible Capacity for Longer Stay
The AC60P packs with the safest LiFePOâ‚„ battery for over 3,000 cycles before reaching 80%. It can be paired with two B80P expansion batteries (806Wh each) for a growing capacity - plenty of power for short trips or long periods away from the grid.
Multiple Charging Ways
Besides fast wall charging, the AC60P supports solar, car, and lead-acid battery charging. With a choice of charging methods, the AC60P is always full-loaded whenever you need it.
Never Run Out of Power
Suitable for various occasions
