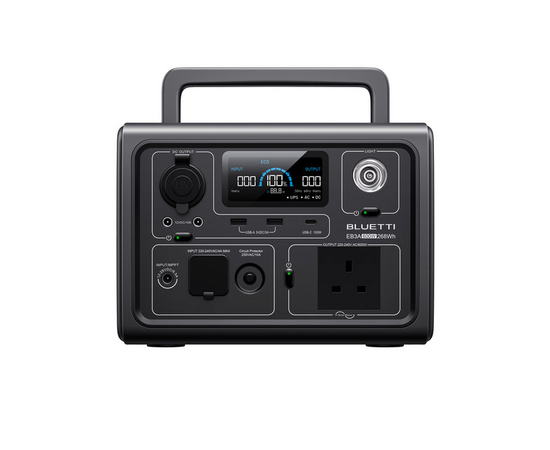

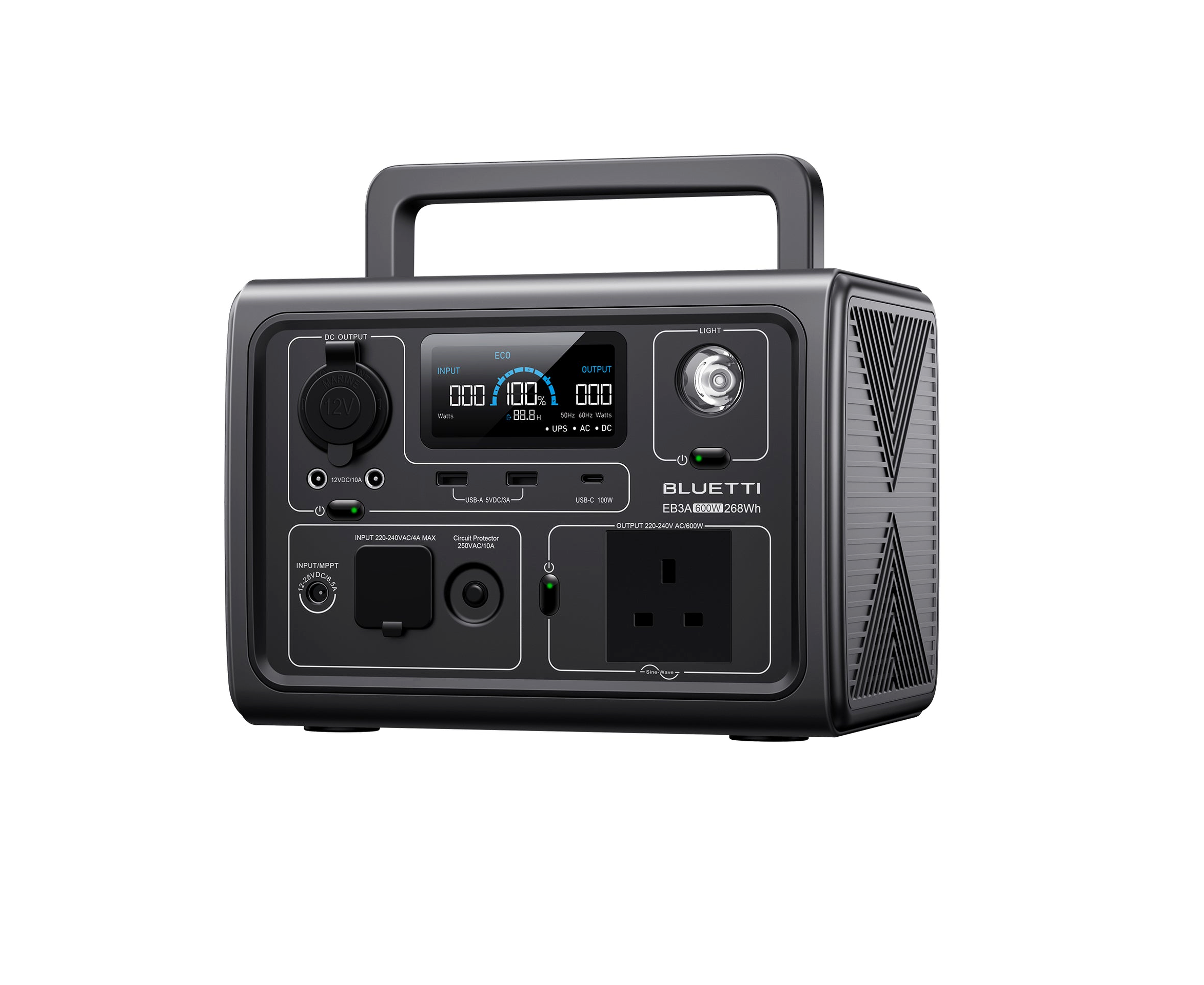

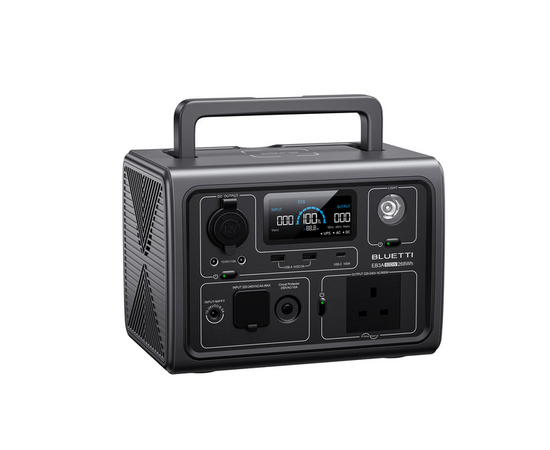

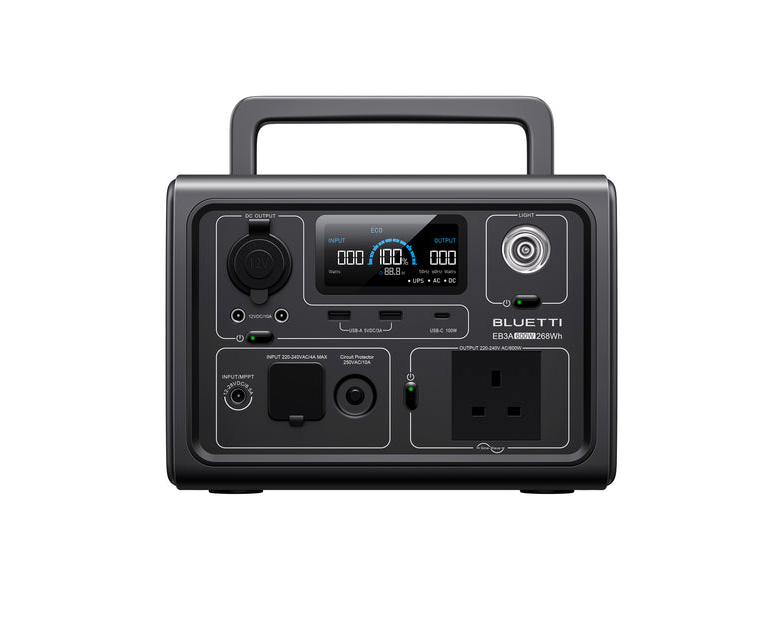

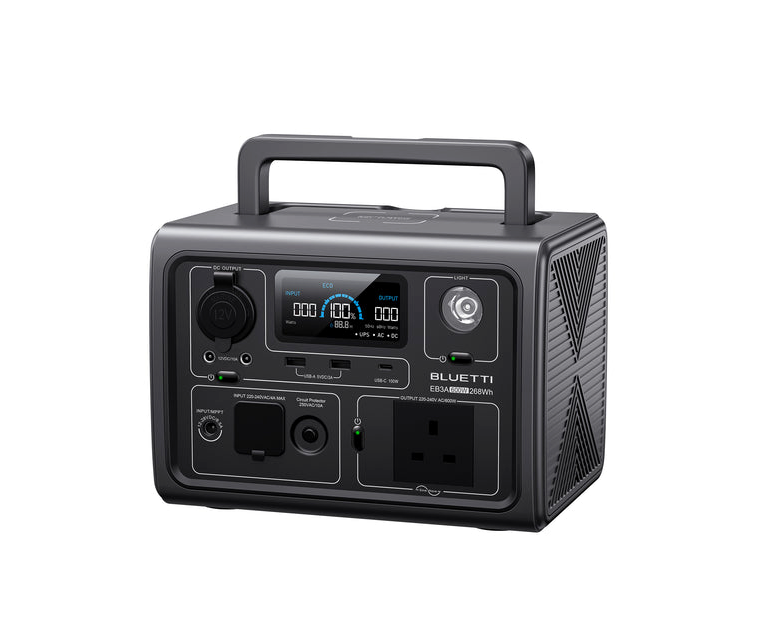

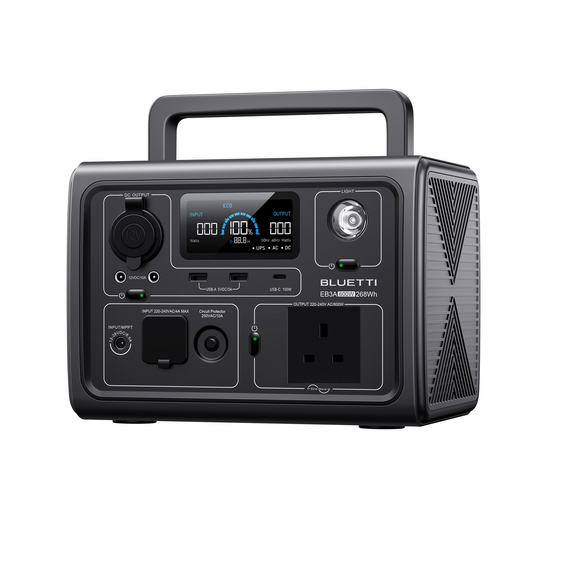

BLUETTI EB3A Portable Power Station | 600W 268Wh
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Portable Power for A Sustainable Lifestyle
Designed to be more energy-efficient than traditional generators, BLUETTI EB3A is so light in terms of weight, doing its part to help you reduce carbon emissions to the environment.
Small but in Charge
EB3A is compact enough, but you can count on it with big jobs. Whether it be small blender, mini rice cooker or small refrigerator, EB3A gets you all covered thanks to the 600W AC Pure Sine Wave Inverter (1200W surge) and an impressive 268Wh capacity.
80% Charge in 40 Minutes
EB3A features 430W Fast Charging that enables an 80% charge in the time it takes you to drink a cup of coffee or have a chitchat, providing sufficient power on demand.
6 Ways to Recharge
Go for an off-grid living anytime from RV camping to wilderness exploration with no fear of losing power. BLUETTI EB3A can be recharged in every way possible, either via AC, solar panels, car, generator, AC+Solar, or AC+Adapter, leaving you only peace of mind on the road.
Safety Is in Detail
Experience increased safety brought by LiFePO4 battery and BMS (Battery Management System). Compared to traditional Lithium-ion cells, the LiFePO4 battery EB3A adopts possesses a natural advantage due to its remarkable thermal and chemical stability, giving you better performance and longer life cycle (2,500 cycles to 80%). While BMS is at all times monitoring and protecting your device from every potential risk.
8 Outlets for Every Need
Flexible charging capability accommodates a wide range of charging needs. No more vying with family or friends for a quick charge. EB3A has enough ports for a simultaneous charging, classic AC and DC output, 100W Type-C, car socket, even wireless charger. Everyone will be taken good care of, regardless you're at home or staying outside.
Stay Connected with BLUETTI APP
The intuitive APP offers a truly convenient experience at your fingertips, giving you quicker access to EB3A through Bluetooth within a radius of 10m and keeping it under your control around the clock.
