BLUETTI PV200D Solar Panel | 200W
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Maximize Solar Energy Utilization

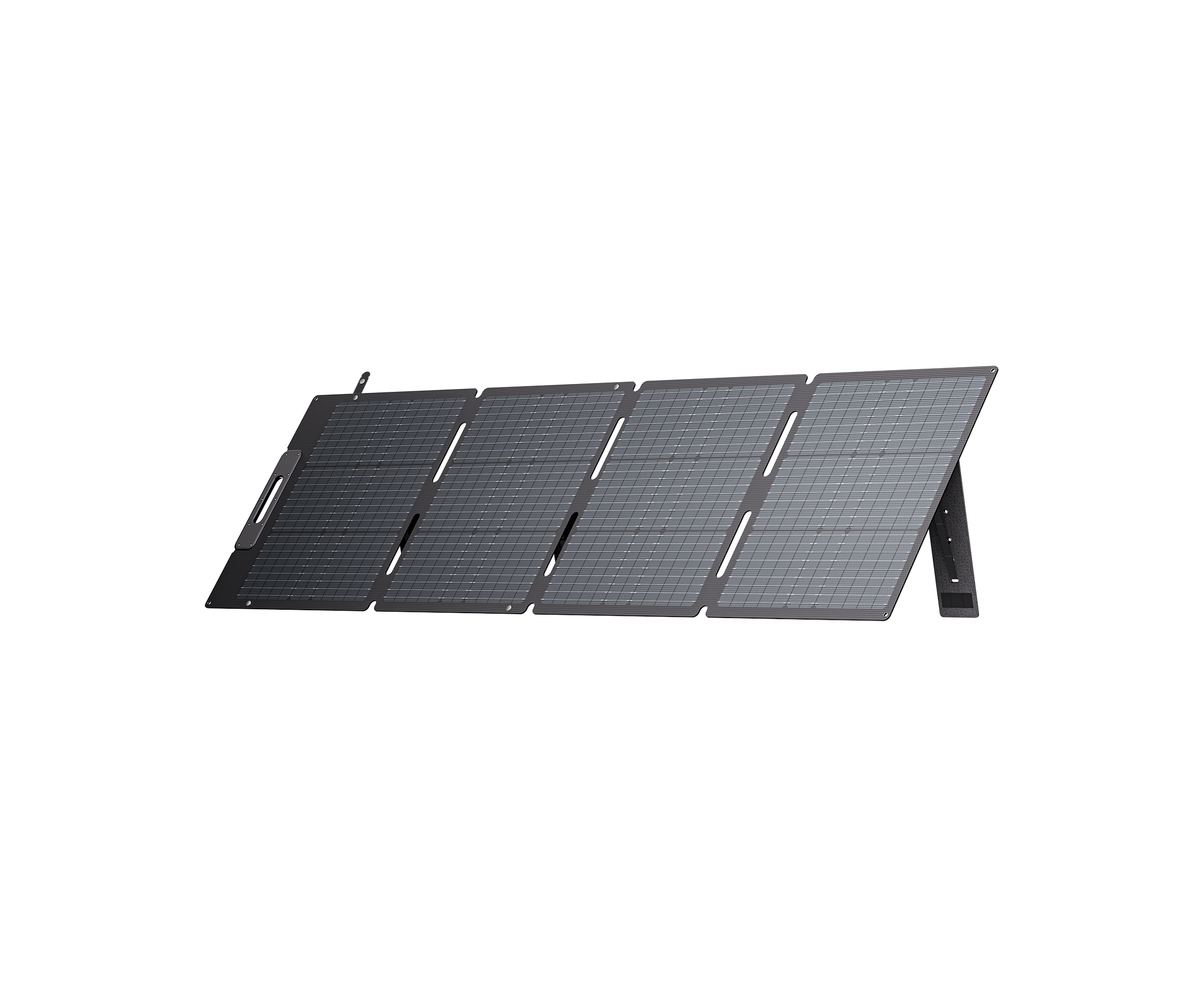

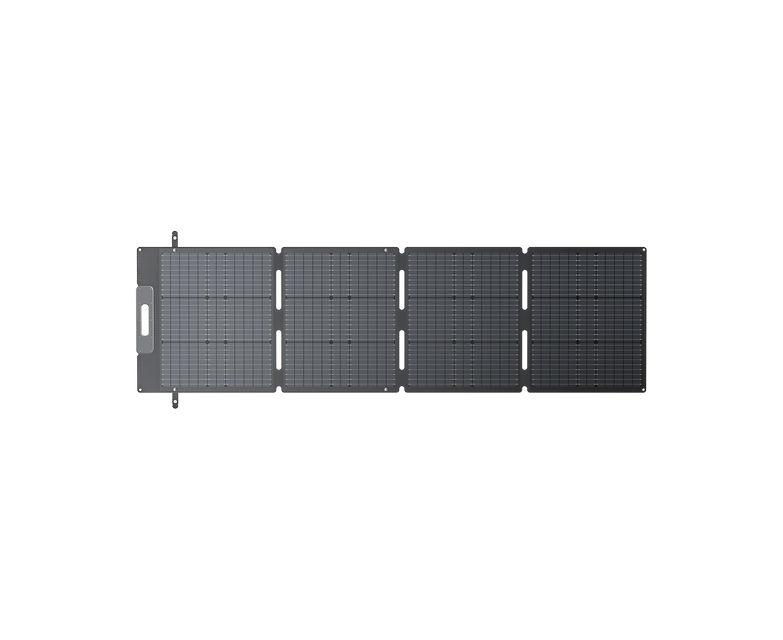

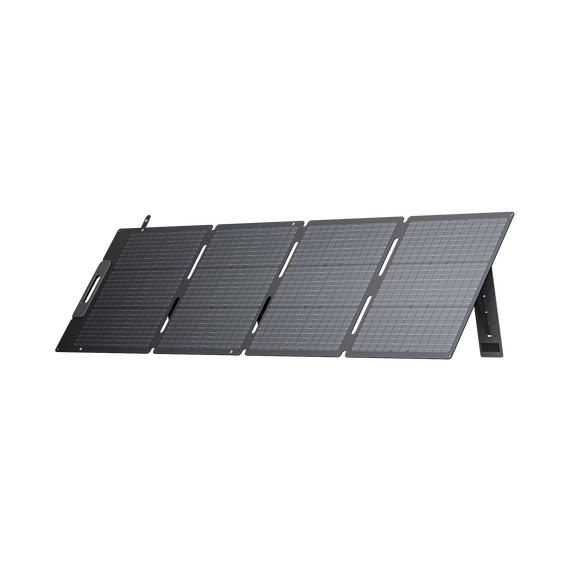

Introducing the BLUETTI PV200D Portable Solar Panel, your ultimate companion for off-grid adventures and sustainable energy solutions. Harness the power of the sun with its impressive 200W solar capacity and up to 23.4% conversion rate, enabling efficient charging of your solar generators while minimizing environmental impact.Whether you're camping in the wilderness, exploring the great outdoors, or preparing for emergencies with limited access to electricity, the BLUETTI PV200D ensures you stay powered up wherever you go!

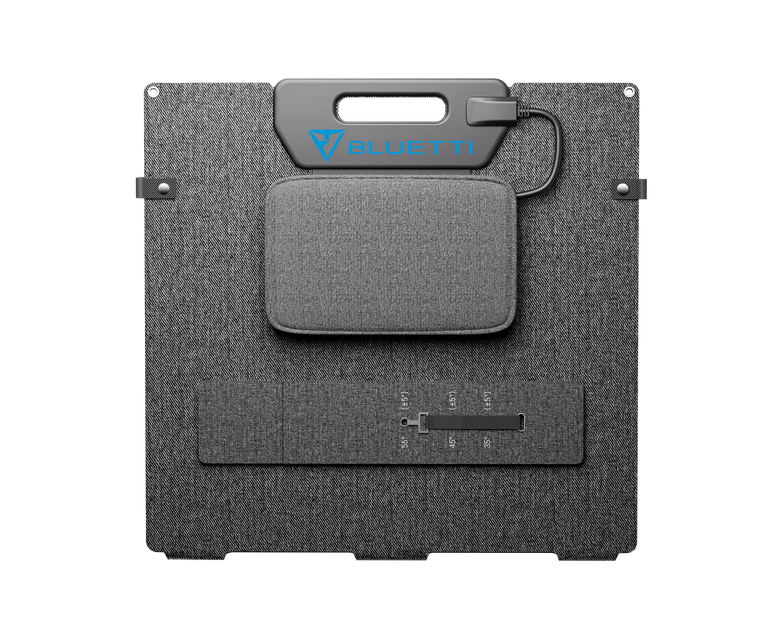

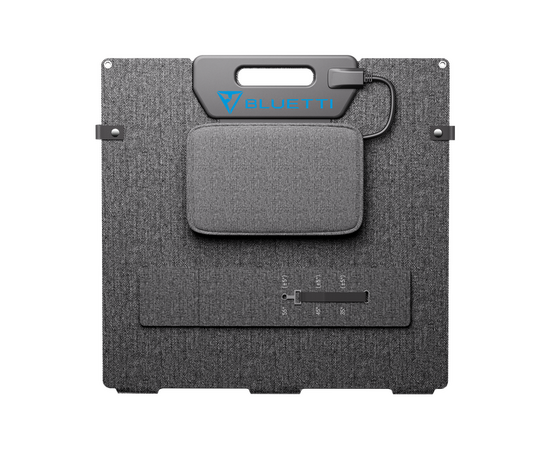

Easy Mobility, Easy Power
The foldable and lightweight design offers unparalleled mobility, making it a breeze to transport and set up wherever the sun shines. Experience the freedom of next-level solar power during outages at home or in an off-grid lifestyle.
Superior Performance, Unmatched Durability
Featuring an ETFE coating, the PV200D offers an IP67 rating water resistance, ensuring exceptional performance and durability even in harsh conditions. With built-in monocrystalline solar cells boasting up to 23.4% conversion efficiency, it makes the most of solar energy to charge your devices effortlessly.
Universal Compatibility
Thanks to the universal MC4 interface, the PV200D seamlessly integrates with a wide range of storage solutions available on the market. Simple plug and play to watch solar energy flow into your power station, making reliable and sustainable power within handy reach. * Compatible BLUETTI Models: EB3A / EB55 / EB70 / AC2A / AC50B / AC60 / AC70 / AC180 / AC80T/ AC200L / AC200P / AC200MAX / AC300 / AC500 / EP500Pro / B80 / B210 / B230 / B300 / MultiCooler
Never Run Out of Power
Suitable for various occasions
