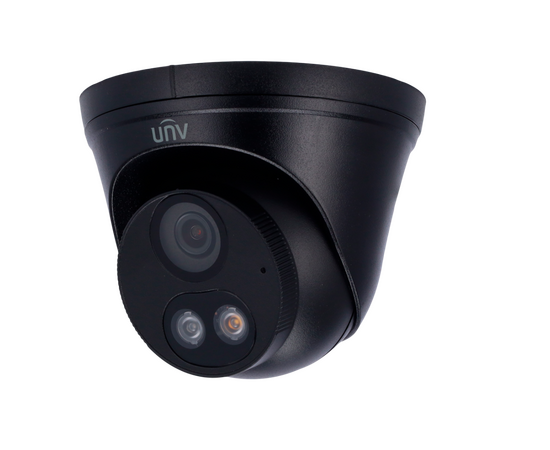

Uniview EasyStar 4MP StarLight IP Turret with Microphone
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

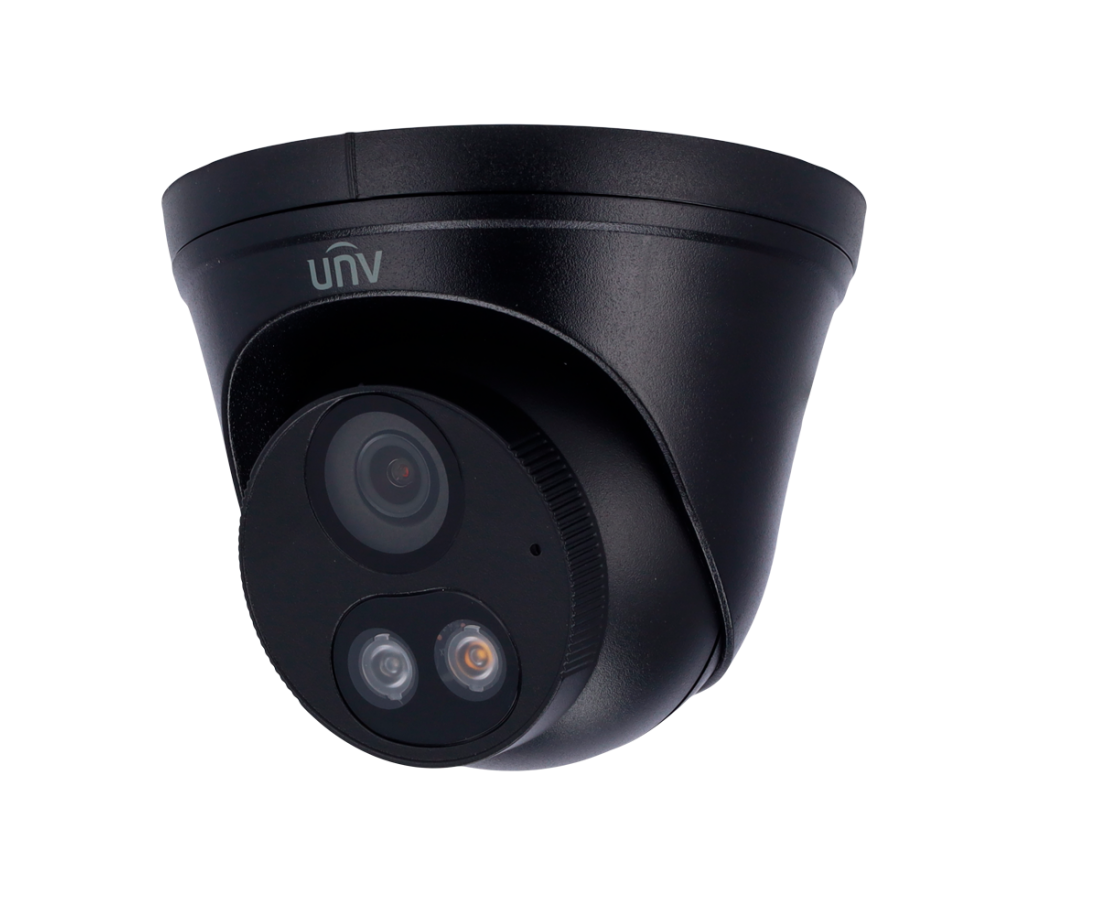

Uniview IPC3614LB-AF28K-DL – 4MP ColorHunter Fixed Dual-light Turret Network Camera
Experience exceptional image clarity and all-day color performance with the IPC3614LB-AF28K-DL 4MP ColorHunter Fixed Dual-light Turret Network Camera. Designed for professional security applications, this camera combines cutting-edge imaging technology, intelligent illumination, and rugged reliability to deliver superior surveillance in any environment.
Key Features
- Crystal-Clear Imaging: Equipped with a high-performance 1/3.0" 4MP CMOS sensor, the camera delivers detailed video at resolutions up to 2560 × 1440 with smooth frame rates.
- ColorHunter Technology: Capture full-color video 24/7 with dual-light illumination, combining smart IR and warm light—both reaching up to 30 meters (98.4 ft)—for vibrant, clear images even in complete darkness.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats for efficient bandwidth and storage management without compromising image quality.
- Flexible Installation: Features 9:16 corridor mode for vertical monitoring and a 3-axis design for flexible mounting and precise adjustment.
- Enhanced Audio & Storage: Includes a built-in microphone for synchronized audio recording and supports MicroSD cards up to 512 GB for local storage.
- Reliable Performance: Built to endure tough outdoor conditions with IP67-rated weather resistance and PoE power support for simple installation and maintenance.
- Noise-Free Clarity: Integrated 2D/3D DNR (Digital Noise Reduction) ensures crisp images even in low-light or challenging environments.
Ideal For
Retail stores, parking lots, warehouses, office buildings, and residential areas—anywhere you need continuous color imaging and dependable security.
