Product Details for EMS FireCell FC-178-002 Red Visual Indicator (Head Only)

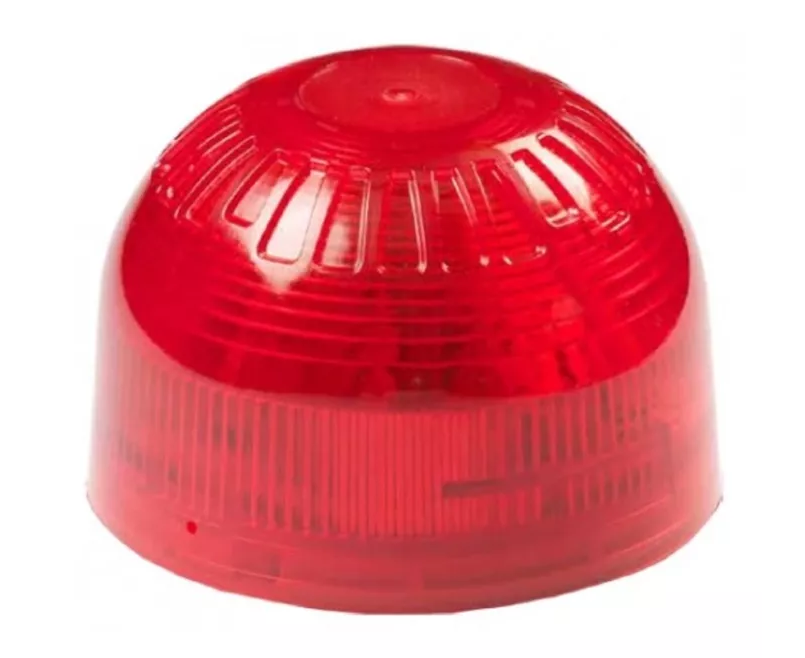

The EMS FireCell FC-178-002 is a Red Visual Indicator Only designed for compatibility with the EMS FireCell wireless system. This VID head works with the FC-171-001 and FC-171-002 bases.
Key Features of the FC-178-002 |
|---|
| > Red Visual Indicator (VID) > Wireless bases sold separately > IP54 rated > EN 54-3, 54-25 3rd party approved |
Product Specification for EMS FireCell FC-178-002 Red Visual Indicator (Head Only)
| Dimensions: | Ø:120mm x D:125mm |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 3 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial) & 3 x C alkaline (Panasonic LR14AD Powerline / Varta 4014 Industrial) |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP54 |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Location: | Type A: for indoor use |
| Weight: | 0.65 kg |
