EMS FireCell FCX-176-001 Class CS Heat Detector (Head Only)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Product Details for EMS FireCell FCX-176-001 Class CS Heat Detector (Head Only)

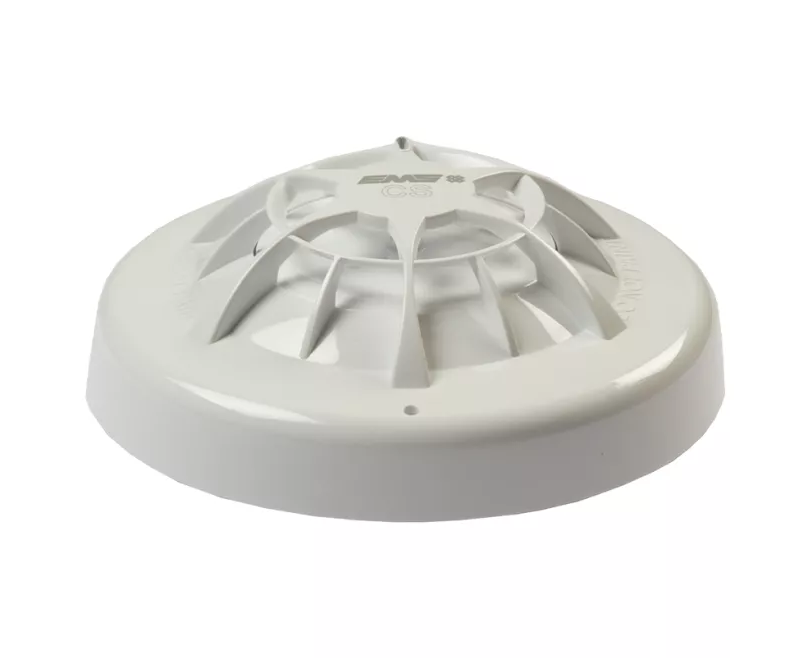

The EMS FireCell FCX-176-001 is a Class CS fixed temperature heat detector. Wireless base available separately.
The FireCell Wireless Heat Detector is quick and easy to install and offers individual addressing at the Fire Control Panel. Features include dual band 868MHz operation, auto adjusting power output, re indication LED, anti tamper locking mechanism and the FasTest detector maintenance feature.
This device is third party EN certied and compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM) and EMS Wireless Zone Monitor (WZM).
Key Features of the FCX-176-001 |
|---|
| > Class CS Heat Detector > Fixed temperature > Detector head only > Dual band 868MHz > Fire indication LED > Anti tamper locking mechanism > FasTest maintenance feature > Easy to install > EN54-5 & EN54-25 certified (3rd party) > Wireless base available separately |
Product Specification for EMS FireCell FCX-176-001 Class CS Heat Detector (Head Only)
| Dimensions: | Ø:113mm x D:41mm (excl base) Ø:113mm x D:81mm (incl base) |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 6 x AA alkaline batteries (Panasonic LR6AD Powerline / Varta 4006 Industrial) |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Variable 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP23, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Weight: | 0.40 kg (with base) |
| Certification (3rd party): | EN54-5 & EN54-25 |
| Application Temperature oC: | Typical: 55 Max: 80 |
| Static Response Temperature oC: | Min: 84 Typical: 90 Max: 100 |
